Description

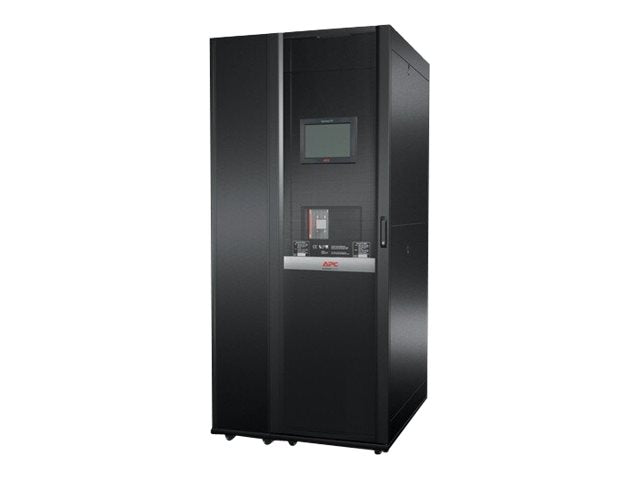

The APC Symmetra PX 250/500kW IO Frame is a high-capacity power distribution cabinet engineered for scalable and efficient three-phase power delivery in mission-critical environments. Supporting up to 500kW / 500,000VA at 480V AC, this external cabinet integrates seamlessly with the Symmetra PX 250/500kW UPS systems. It features dual hardwired output connectors (4-wire and 5-wire) and includes advanced features such as a built-in maintenance bypass and an intuitive touch screen LCD display. With robust construction, remote management support (SNMP/HTTP), and compliance with key international standards, it is ideal for high-density data centers and enterprise facilities requiring reliable, redundant power infrastructure.
| Specification | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model Number | SYIOF500KMBL |
| Product Type | External Power Distribution Cabinet |
| Power Capacity | 500 kW / 500,000 VA |
| Input Voltage | AC 480V (3-phase) |
| Input Voltage Range | 408V – 552V AC |
| Input Connectors | Hardwire 4-wire (3PH + G), 5-wire (3PH + N + G) |
| Output Voltage | AC 480V |
| Output Connectors | 2 (1x 4-wire, 1x 5-wire) |
| Expansion Slots | 3 x SmartSlot (Free) |
| Form Factor | External Cabinet |
| Color | Black |
| Display | Touch Screen LCD |
| Remote Management | SNMP, HTTP |
| Features | Built-in maintenance bypass, LCD display |
| Compliant Standards | UL, cUL, FCC, IEC, CSA |
| Operating Temp (Min/Max) | 0°C to 40°C |
| Sound Emission | 54 dBA |
| Dimensions (H x W x D) | 199 cm x 100 cm x 107 cm |
| Weight | 695 kg |
| Shipping Dimensions | 212 cm x 121 cm x 107 cm |
| Shipping Weight | 754 kg |
| Warranty | 1-Year Limited Warranty |
