Description

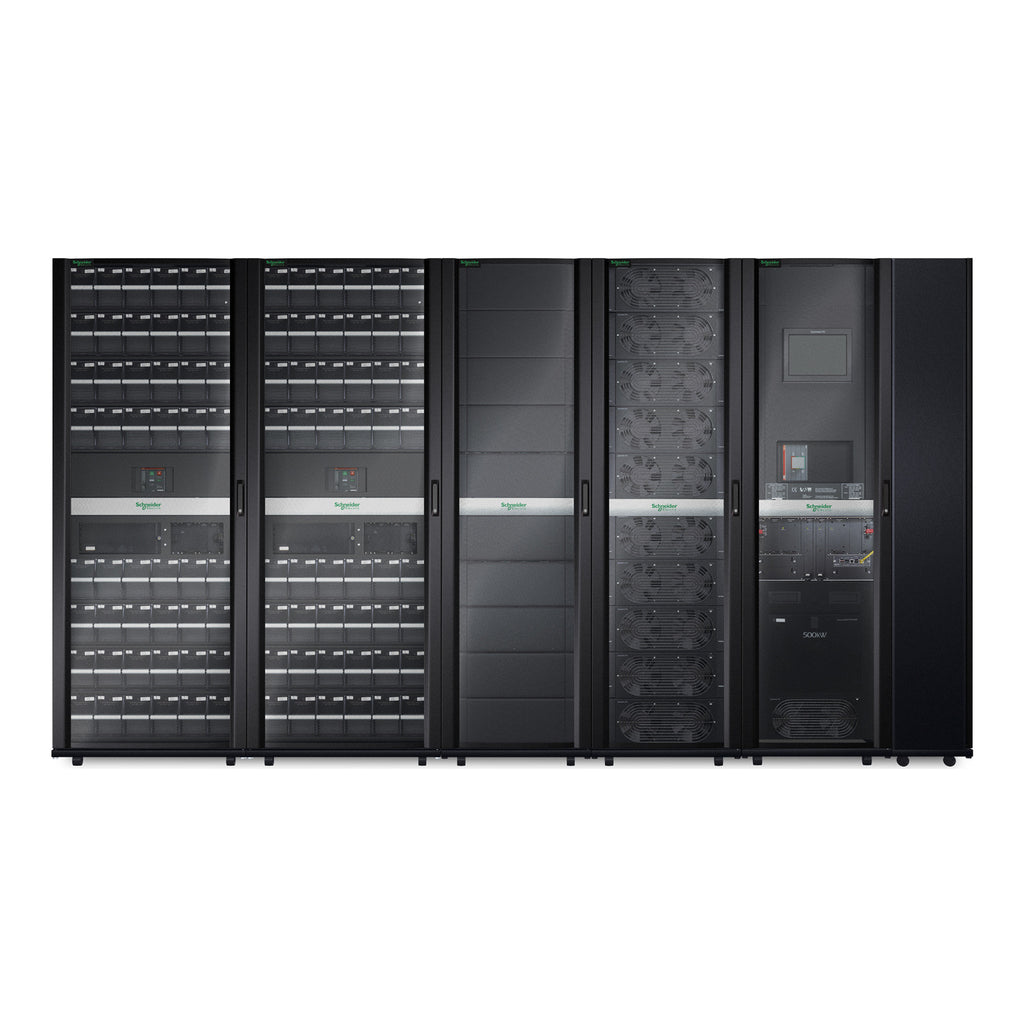

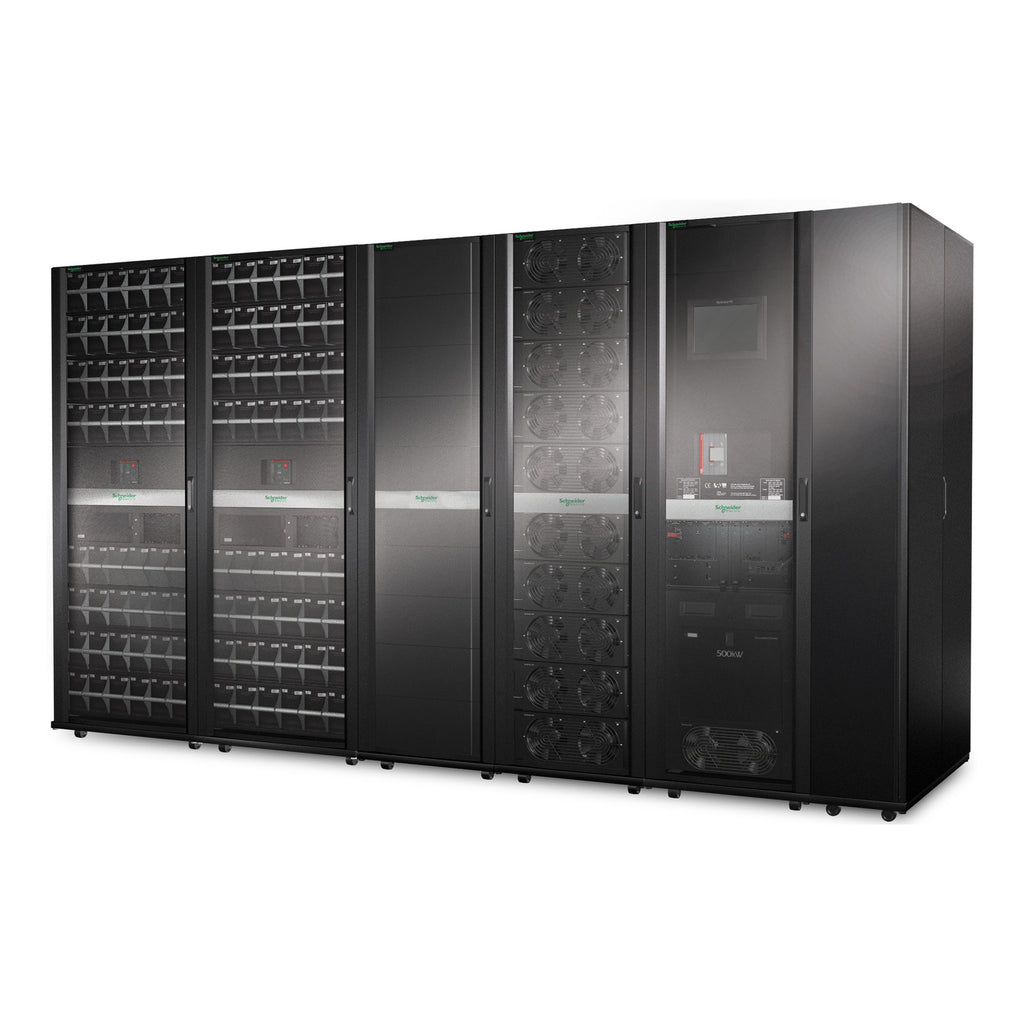

The APC Symmetra PX SY250K500DR-PD delivers scalable, modular 3-phase power protection for medium to large data centers. Starting at 250kW and expandable to 500kW, this high-performance UPS integrates a built-in maintenance bypass with sub-feed distribution and provides up to 96% efficiency in double-conversion mode. With support for up to four systems in parallel, it offers reliable, redundant power protection up to 2MW. Ideal for mission-critical applications demanding optimal uptime, energy efficiency, and flexibility.
| Category | Details |
|---|---|
| Model | SY250K500DR-PD |
| Input Voltage | 400V / 415V / 480V 3-phase |
| Output Voltage | 400V / 415V / 480V 3-phase |
| Power Capacity | 250kW scalable to 500kW (250kVA to 500kVA) |
| Topology | Double Conversion Online |
| Waveform Type | Sine wave |
| Battery Type | VRLA, 16 included modules |
| Battery Recharge Time | 3.5 hours |
| Overload Capacity | 10 minutes @ 125%, 60 seconds @ 150% |
| Input Connections | 1x Hard Wire 4-wire (3PH + G), 1x Hard Wire 5-wire (3PH + N + G) |
| Efficiency | Up to 96% in battery operation |
| Input Power Factor | 0.99 |
| Output Frequency | 50/60Hz (sync to mains or ±0.1% standalone) |
| Certifications | UL Listed, cUL, CSA, EN/IEC 62040 series |
| Bypass | Integrated Maintenance Bypass with Distribution |
| Form Factor | Tower |
| Dimensions (W x D x H) | 145.67 x 42.13 x 78.39 in (370 x 107 x 199.1 cm) |
| Weight | 10,813.7 lbs (4,905 kg) |
| Environmental | Operating Temp: 0–40°C, Humidity: 0–95%, Altitude: up to 30,000 ft |
| Interfaces | Network Management Card 2, Touchscreen LCD |
| Warranty | 1-Year On-site Repair/Replace w/ Factory Start-Up |
