Description

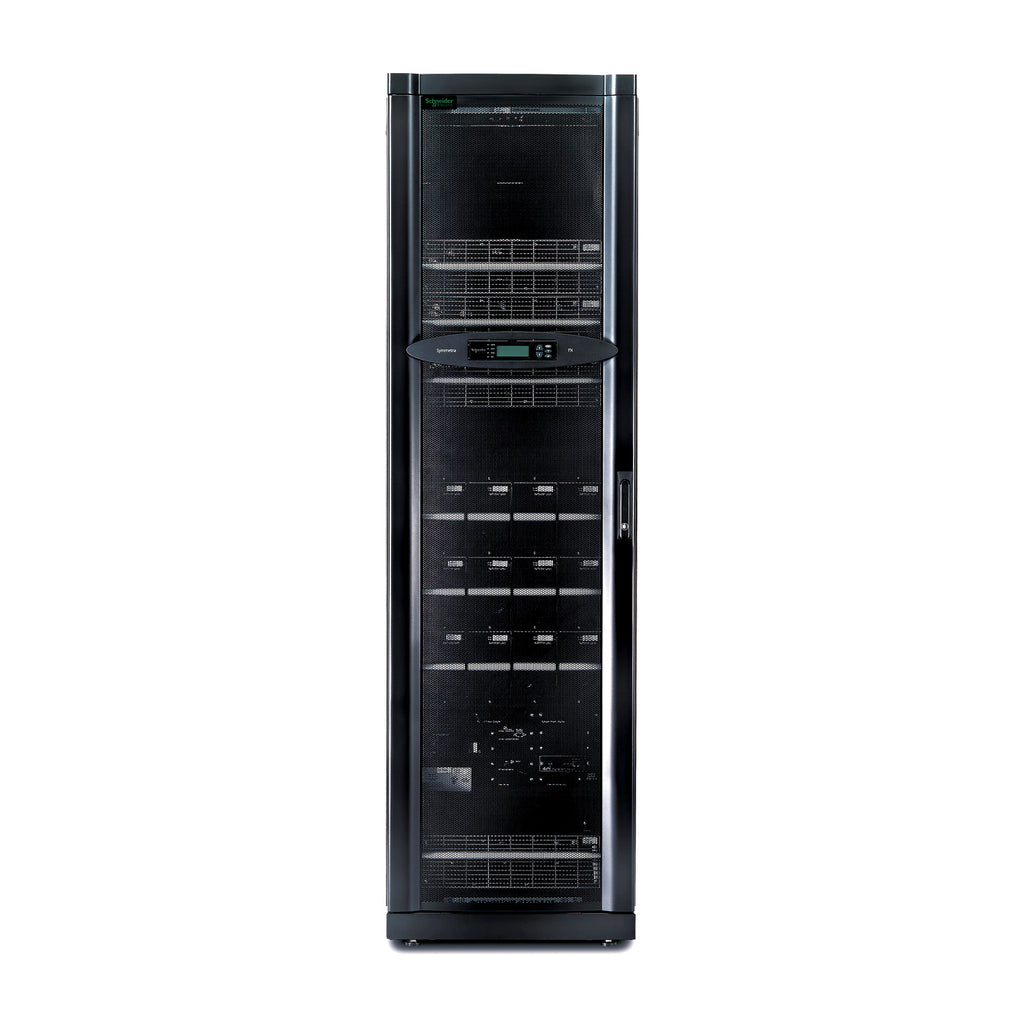

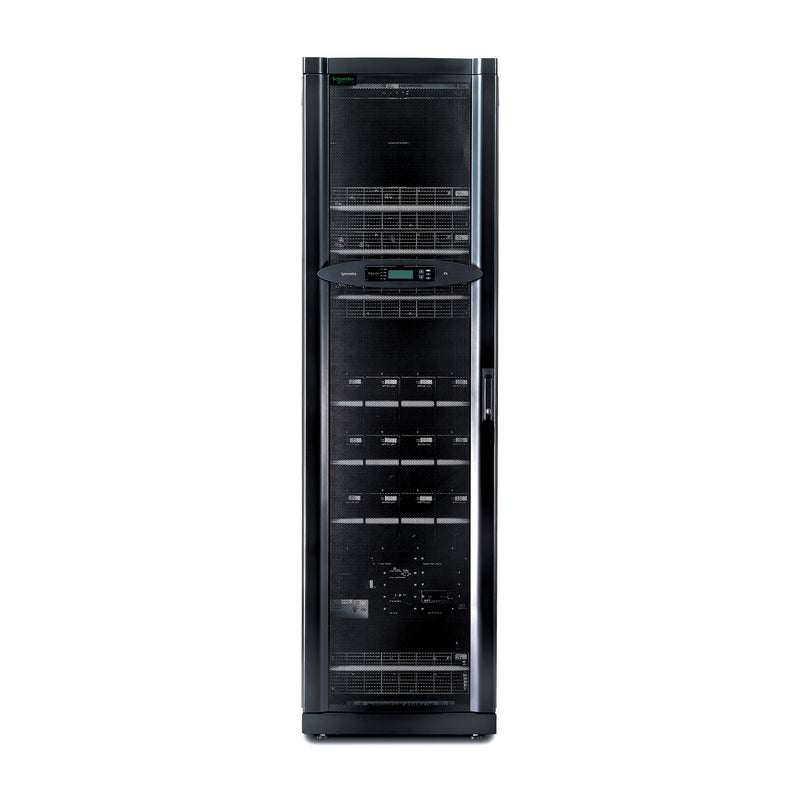

The APC Symmetra PX 30kW is a modular, scalable, and redundant 3-phase UPS system designed for small to medium data centers. With the ability to scale from 30kW to 40kW in a compact, rackmountable form factor, it delivers high availability and energy-efficient double conversion online power protection. The system includes hot-swappable power, battery, and intelligence modules to ensure uninterrupted performance and minimal downtime. Compatible with SYBT4 battery modules and features an integrated network management card for easy remote monitoring.
| Category | Details |
|---|---|
| Model | SY30K40F |
| Topology | Double Conversion Online |
| Power Capacity | 30kW / 30kVA (Scalable to 40kW/40kVA) |
| Input Voltage | 208V 3-phase |
| Output Voltage | 120V / 208V / 208V 3-phase |
| Input Voltage Range | 177 – 240V |
| Frequency | 50/60 Hz |
| Output Waveform | Sine Wave |
| Runtime (Full Load) | ~4 minutes |
| Battery Type | Lead-Acid (Hot-swappable) |
| Replacement Battery | SYBT4 |
| Recharge Time | 2 hours |
| Battery Slots (Filled/Free) | 3 / 1 |
| Power Modules (Installed/Max) | 3 / 5 |
| Redundancy | Yes (N+1) |
| Management | Integrated Network Management Card |
| LCD Display | Multifunction LCD Console |
| Emergency Power Off (EPO) | Yes |
| Cooling | Air-cooled |
| Color | Black |
| Dimensions (H x W x D) | 207 x 60 x 90.2 cm |
| Weight | 652.27 kg |
| Operating Temp | 0 – 40 °C |
| Humidity (Operation/Storage) | 0–95% RH |
| Certifications | UL, cUL, ISO 9001, ISO 14001, FCC Part 15 A |
| Warranty | 1-Year On-site Repair with Authorized Start-Up |
