Description

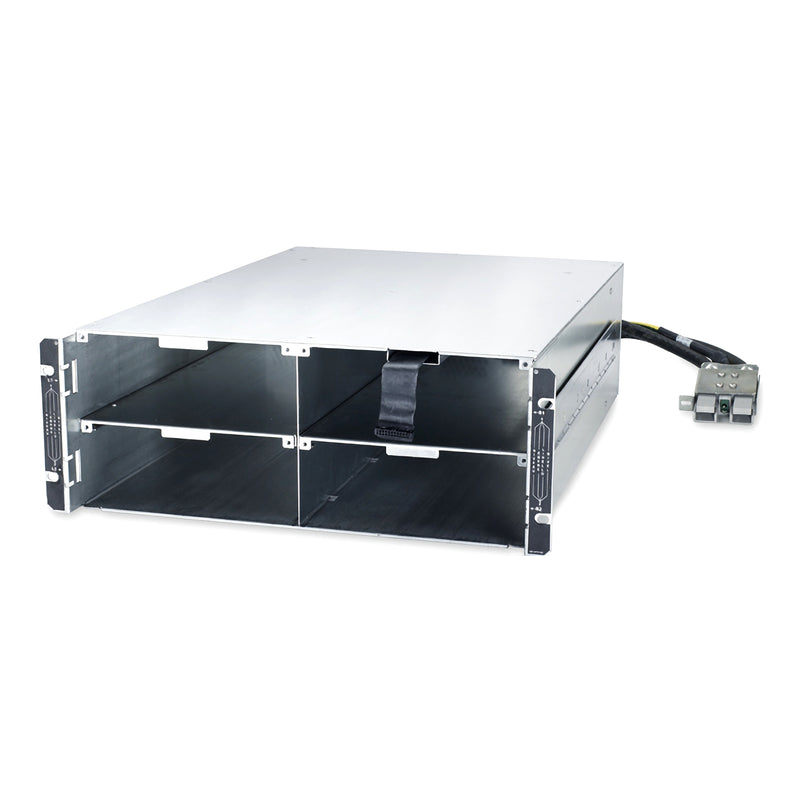

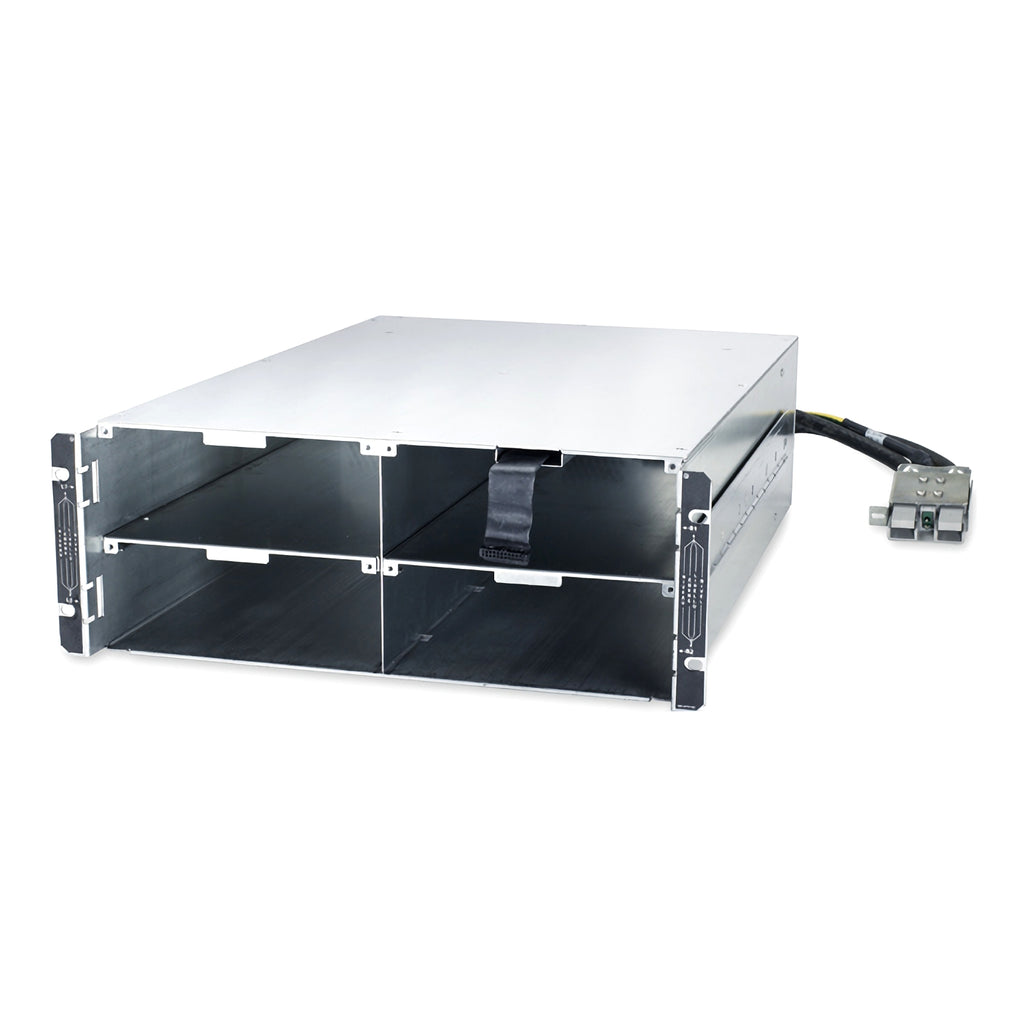

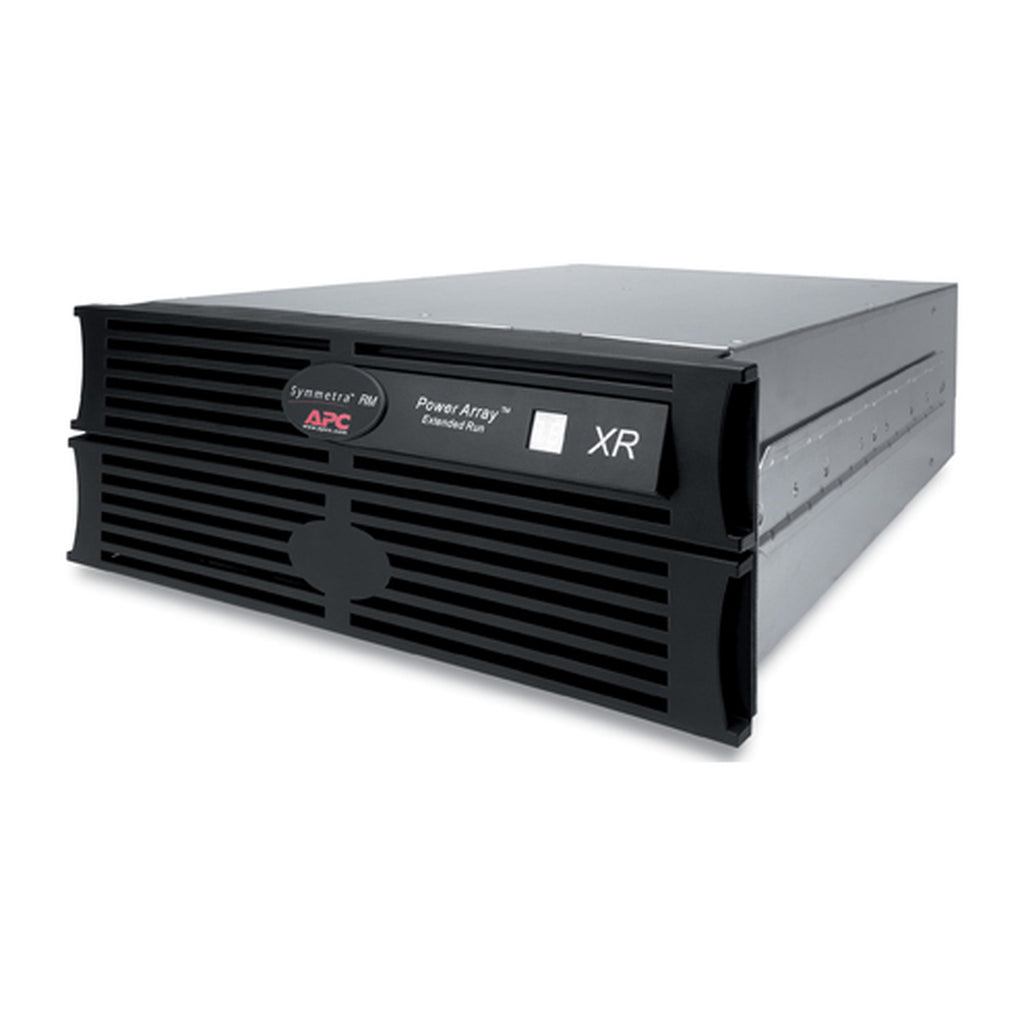

Give your Symmetra RM UPS the runtime boost it deserves. The APC Symmetra RM XR Battery Frame (model SYRMXR4B4) ships pre-populated with four hot-swappable SYBT2 battery modules inside a compact 4U enclosure, letting you add or refresh battery capacity without expanding your rack footprint.
Key benefits
-
Instant capacity upgrade – four factory-installed SYBT2 battery modules deliver extended runtime right out of the box.
-
Space-saving 4U design – integrates neatly in standard 19-inch racks with included mounting brackets.
-
High-availability architecture – hot-swappable batteries and front-access cabling keep maintenance fast and downtime minimal.
-
Rugged build for the data-center edge – lead-acid chemistry, sealed cabinet, and wide 0 – 40 °C operating window.
-
Trusted APC quality – backed by a 2-year repair-or-replace warranty with optional on-site and extended-service upgrades.
Add more runtime, preserve valuable rack space, and maintain the legendary resilience of your Symmetra power system—all with one plug-and-play frame.
| Section | Specification | Details |
|---|---|---|
| Overview | Product / Component Type | Battery accessory (XR frame) |
| Range | Symmetra Battery Systems | |
| Lead Time | Usually in stock | |
| Batteries & Runtime | Included Battery Modules | 4 × SYBT2 (installed) |
| Battery Slots Empty | 0 | |
| Battery Type | Lead-Acid, sealed | |
| RBC Quantity | 4 | |
| Physical | Rack Units | 4 U |
| Mounting Mode | Rack-mounted (brackets included) | |
| Device Mounting | Enclosed battery cabinet | |
| Dimensions (H × W × D) | 7.01 × 19.02 × 25.20 in (17.8 × 48.3 × 64 cm) | |
| Net Weight | 242.5 lb (110 kg) | |
| Color | Black | |
| Environmental | Operating Temp | 32 – 104 °F (0 – 40 °C) |
| Storage Temp | –67 – 140 °F (–55 – 60 °C) | |
| Relative Humidity | 0 – 95 % (non-condensing) | |
| Operating Altitude | 0 – 10 000 ft (0 – 3 050 m) | |
| Storage Altitude | 0 – 50 000 ft (0 – 15 240 m) | |
| Connections | Cables Supplied | 1 |
| Input Voltage | 208 / 240 V | |
| Compliance & Warranty | GTIN | 731304740346 |
| Warranty | 2-year repair or replace; optional on-site & extended coverage |
