Description

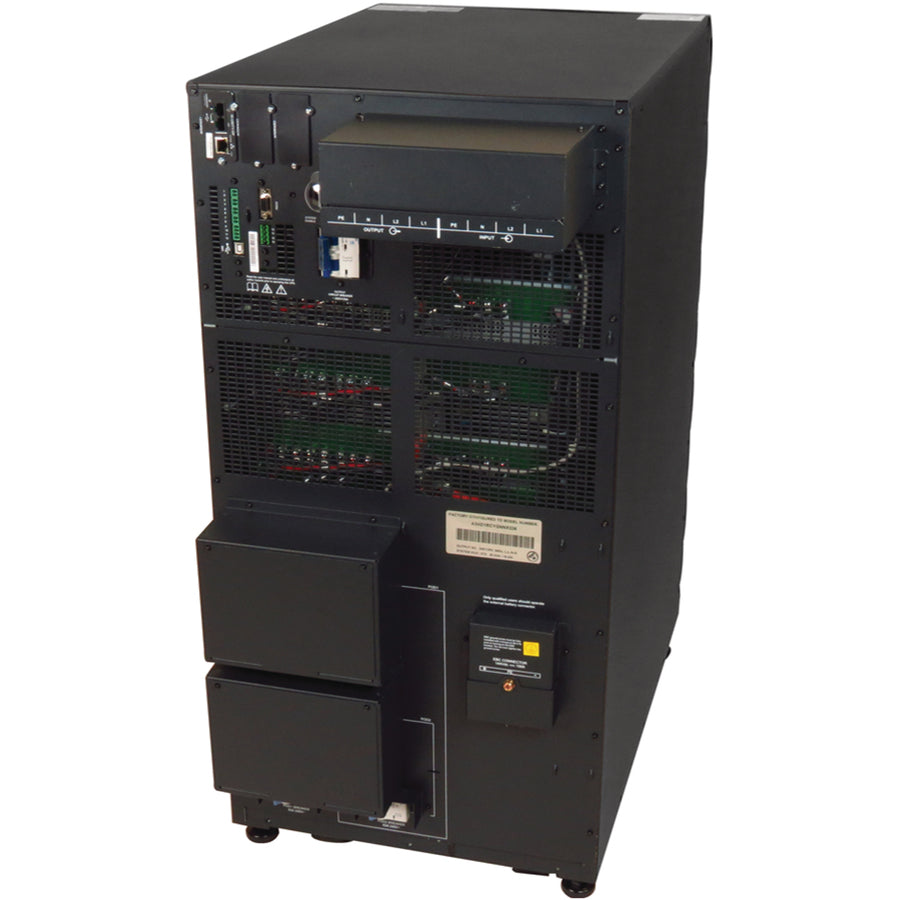

Ensure uninterrupted power for your mission-critical systems with the Vertiv Liebert APS 10kVA Modular UPS (AS6B0NCVGNNXLKB). Designed for room or row-based IT environments, this online double conversion UPS offers scalable power capacity from 10kVA up to 20kVA N+1 redundancy.

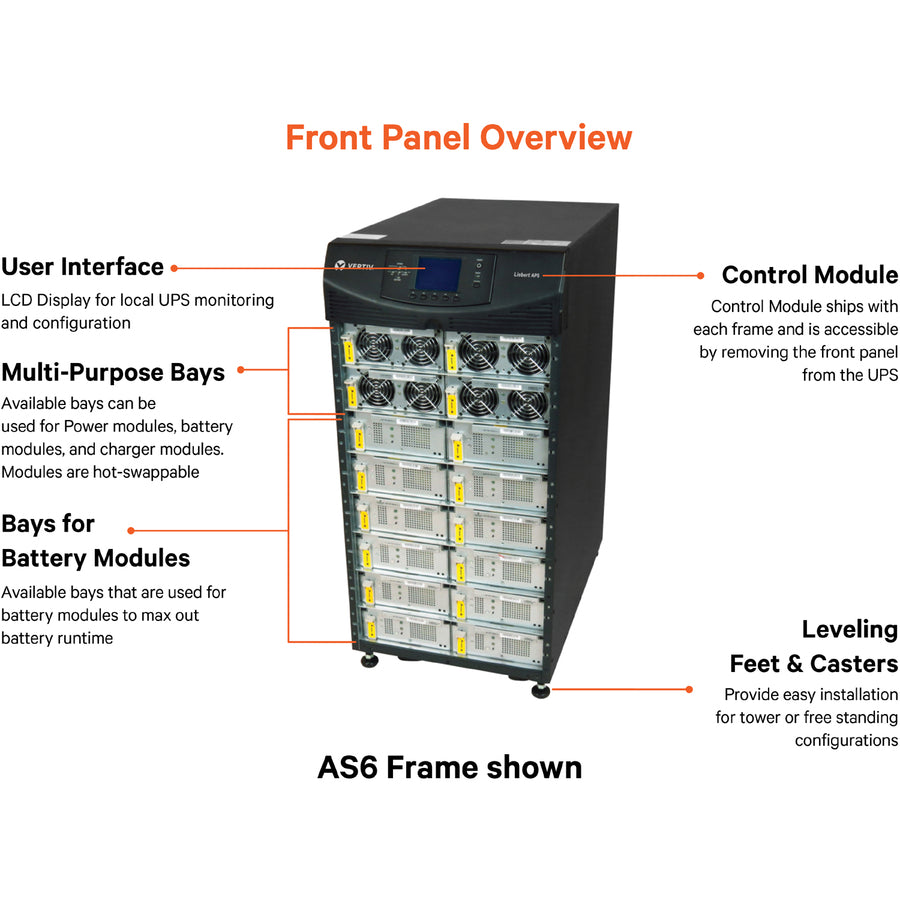

The UPS provides 5 minutes full-load runtime, and its hot-swappable FlexPower™ and VRLA battery modules enable quick maintenance or expansion without disruption.
Equipped with a factory-installed Liebert IntelliSlot Unity Card, this unit supports remote monitoring via FREE Power Insight Software and is compatible with Vertiv’s environmental sensors for temperature, humidity, and leak detection. Ideal for businesses seeking flexibility, redundancy, and optimized TCO with a 92% efficiency rating.
| Specification | Details |
|---|---|
| Part Number | AS6B0NCVGNNXLKB |
| Brand | Vertiv Liebert |
| Product Line | APS |
| UPS Type | Online Double Conversion UPS |
| Power Capacity | 10kVA (Scalable to 20kVA N+1) |
| Output Voltage | 208/120VAC (Split Phase) |
| Input Voltage Range | 120–280V AC |
| Plug Type | Hard Wire 4-wire (L-L-N-G) |
| Form Factor | Rack/Tower |
| Runtime (Full Load) | 5 minutes |
| Runtime (Half Load) | 16 minutes |
| Battery Type | Valve Regulated Lead Acid (VRLA) |
| Battery Voltage | 144 VDC |
| Hot-Swappable | Yes |
| Remote Monitoring | Liebert IntelliSlot Unity Card (Factory Installed) |
| Software | Trellis™ Power Insight |
| Supported Sensors | Temperature, Humidity, Leak Detection |
| Efficiency | Up to 92% |
| Certifications | IEC/EN/AS 62040-1, 62040-2, UL 1778, CSA 22.2, FCC Part 15 Class A |
| Operating Temperature | Up to 104°F (40°C) |
| Relative Humidity | 0–95%, non-condensing |
| Dimensions (HxWxD) | 49" x 17" x 34" |
| Shipping Weight | 1 lb. |
| Warranty | 2 Years |
