Description

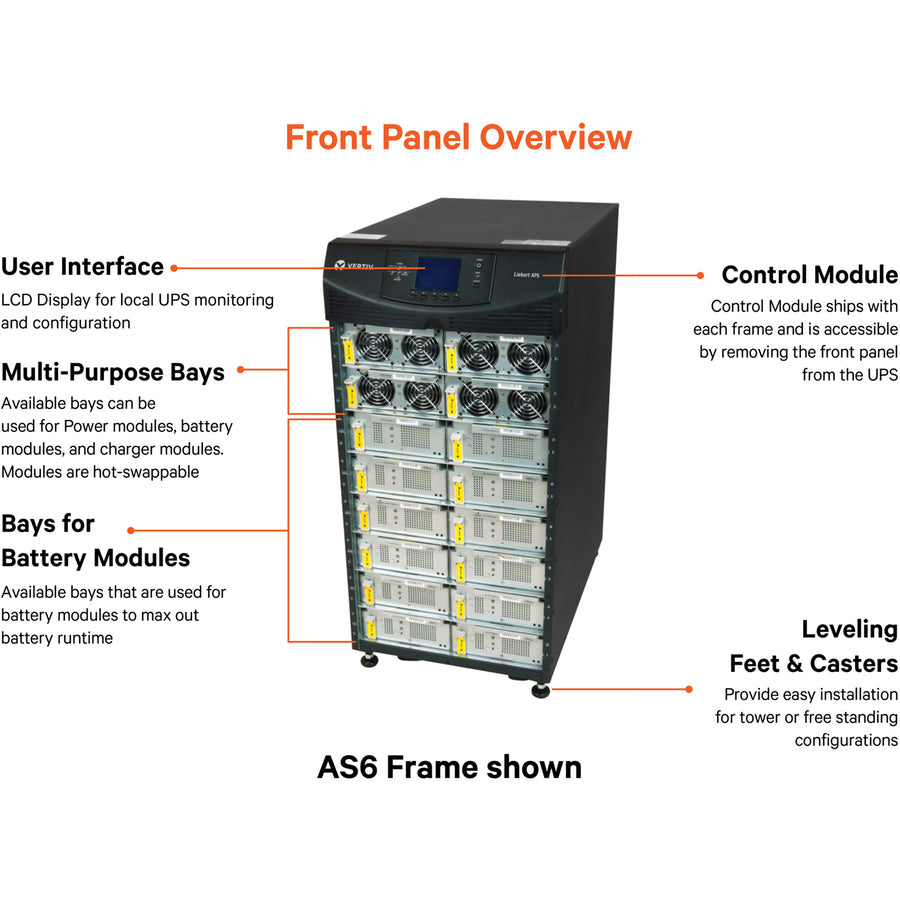

The Vertiv Liebert APS 15kVA Modular UPS (AS3C0NCWGNNXLKB) is an intelligent, scalable, and reliable online double-conversion UPS system designed for mission-critical room or row-based applications. With hot-swappable FlexPower modules, it supports seamless scalability up to 15kVA N+1 redundancy, making it a cost-effective and future-proof power protection solution.
This unit comes equipped with a factory-installed Liebert IntelliSlot Unity Card for network monitoring and environmental sensor support. Featuring 5 minutes full-load runtime, intelligent battery management, high efficiency (up to 92%), and internal down transformer, the APS system ensures reliable power with maximum uptime. Rack or tower mounting flexibility and included software enhance integration and remote management.
| Category | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Liebert |
| Part Number | AS3C0NCWGNNXLKB |
| Product Line | APS |
| Form Factor | Rack/Tower Convertible |
| Topology | Online Double Conversion UPS |
| Power Capacity | 15kVA / 13.5kW N+1 Redundancy |
| Runtime (Full Load) | 5 Minutes |
| Runtime (Half Load) | 8 Minutes |
| Input Voltage Range | 120V - 280V AC |
| Output Voltage Range | 100V - 240V AC |
| Phase | Single Phase |
| Input Frequency | 70Hz |
| Output Frequency | 60Hz |
| Plug Type | Hard Wire 3-Wire (L-L-G) |
| Battery Type | Valve-Regulated Lead Acid (VRLA) |
| Battery Voltage | 144V DC |
| Hot-Swappable Modules | Yes |
| Communications | USB, Serial, RJ-45, EPO Port |
| Environmental Monitoring | Leak, Temperature, Humidity Sensors Supported |
| Pre-Installed Card | IS-UNITY-DP SNMP/Webcard (Free Power Insight Software) |
| Transformer | Internal Down Transformer (208V to 120VAC Output) |
| Certifications | UL 1778, CSA 22.2, FCC Part 15 Class B, NOM, ANSI, ISTA 2A |
| Operating Temp | Up to 104°F (40°C) |
| Relative Humidity | 0% – 95%, non-condensing |
| Dimensions (HxWxD) | 27" x 17" x 32" |
| Weight (Shipping) | 1 lb (may be placeholder; confirm actual weight) |
| Warranty | 2-Year Limited Warranty |
| Environmentally Friendly | Yes |
