Description

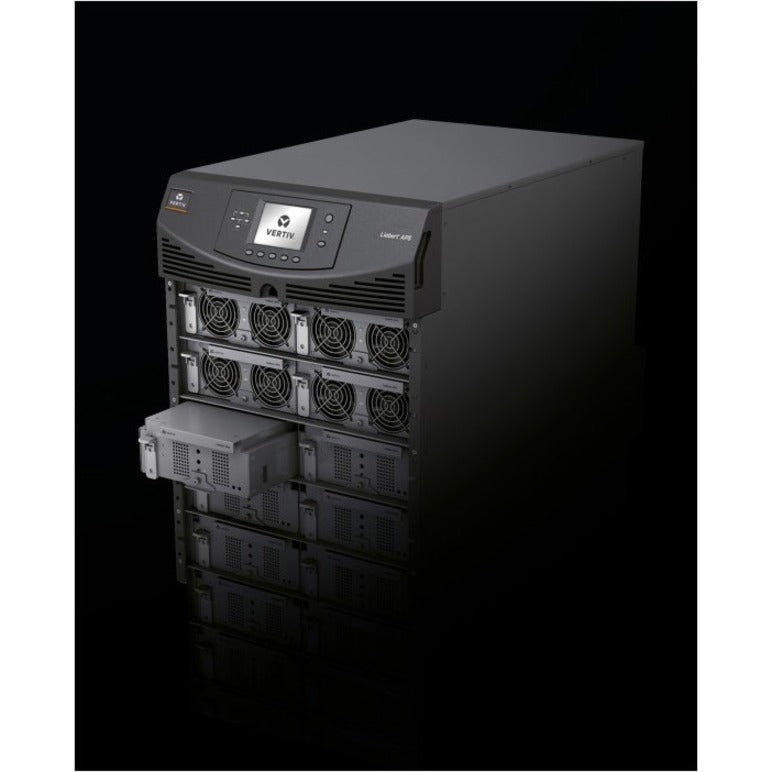

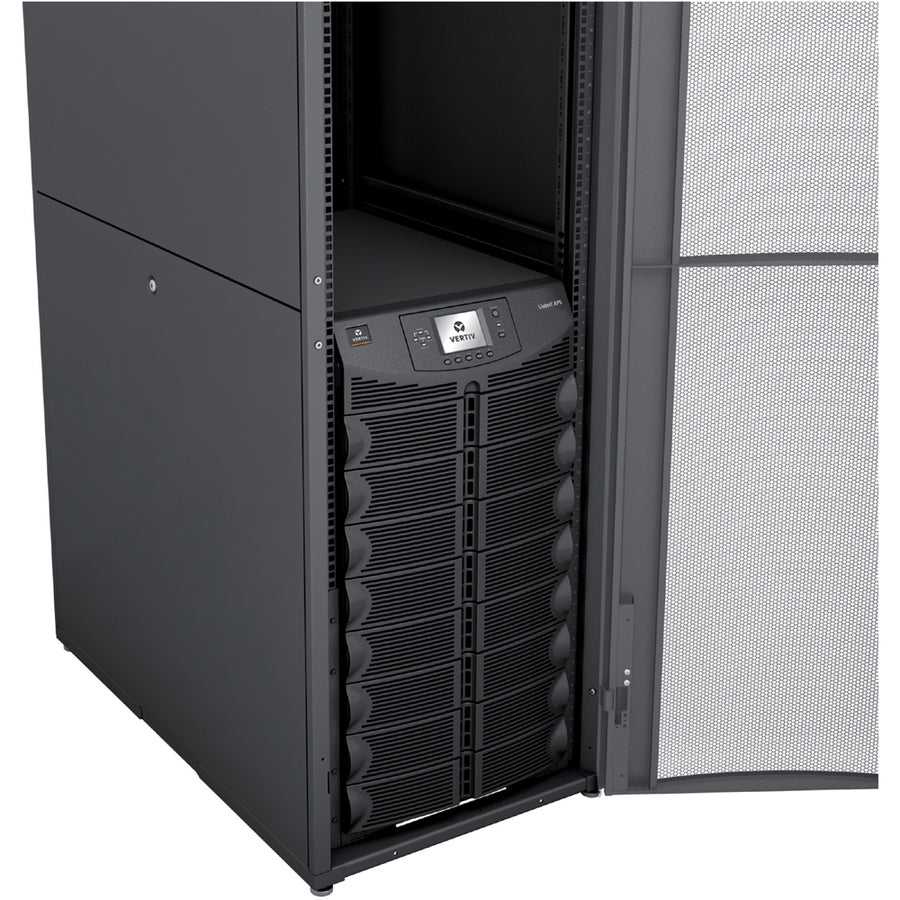

The Vertiv Liebert APS 20kVA Modular UPS (AS6D0NCXGNNXLKB) delivers scalable, reliable power protection in a highly efficient online double-conversion architecture. Designed for mission-critical applications in room or row-based environments, this UPS ensures maximum uptime and future-proof flexibility.

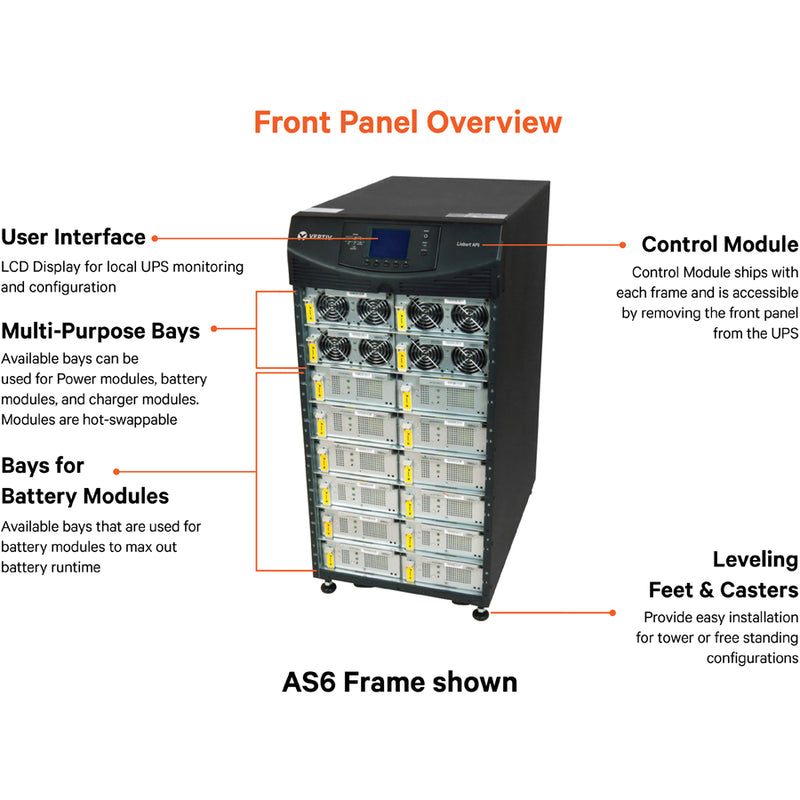

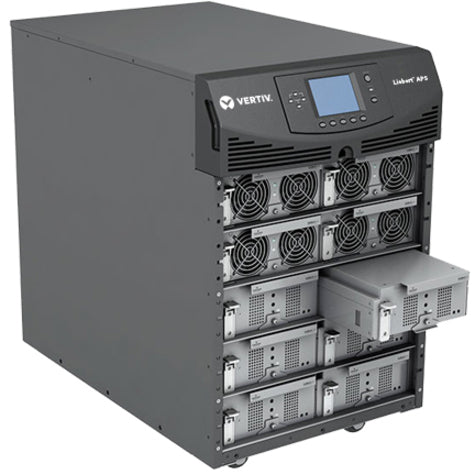

With 5 minutes full-load runtime, support for hot-swappable FlexPower and battery modules, and built-in SNMP/web card (IS-UNITY-DP) for remote monitoring, this system allows easy capacity expansion and centralized control. Supporting both 208V and 120V outputs, it's ideal for sensitive IT infrastructure and industrial environments.
Additional features include Trellis™ Power Insight software, free factory-installed environmental monitoring support, and compliance with international safety standards.
| Category | Details |
|---|---|
| Brand Name | Vertiv Liebert |
| Part Number | AS6D0NCXGNNXLKB |
| Product Line | APS |
| Type | Online Double Conversion UPS |
| Load Capacity | 20 kVA / 18 kW (N+1) |
| Input Voltage | 120/230V AC, Range: 120–280V |
| Output Voltage | 208/120V AC Split Phase |
| Phase | Single Phase |
| Form Factor | Rack/Tower Convertible |
| Full Load Runtime | 5 minutes |
| Half Load Runtime | 16 minutes |
| Battery Type | VRLA, 144VDC Nominal |
| Hot Swappable Modules | Yes (Power & Battery) |
| Remote Management | SNMP/Webcard (IS-UNITY-DP) Included |
| Software | Trellis™ Power Insight (Free) |
| Monitoring Sensors | Temperature, Humidity, Leak Detection |
| Max Operating Temp | 104°F (40°C) |
| Humidity | 0–95%, non-condensing |
| Alt. Capacity | Up to 3000m (10,000ft) @ 25°C |
| Dimensions (HxWxD) | 49” x 17” x 34” |
| Weight | Approx. 1 lb. (shipping placeholder) |
| Certifications | UL 1778, FCC Part 15 Class A, IEC/EN/AS 62040-1 & -2 |
| Warranty | 2-Year Limited Warranty |
| Condition | New and Factory Fresh |
