Description

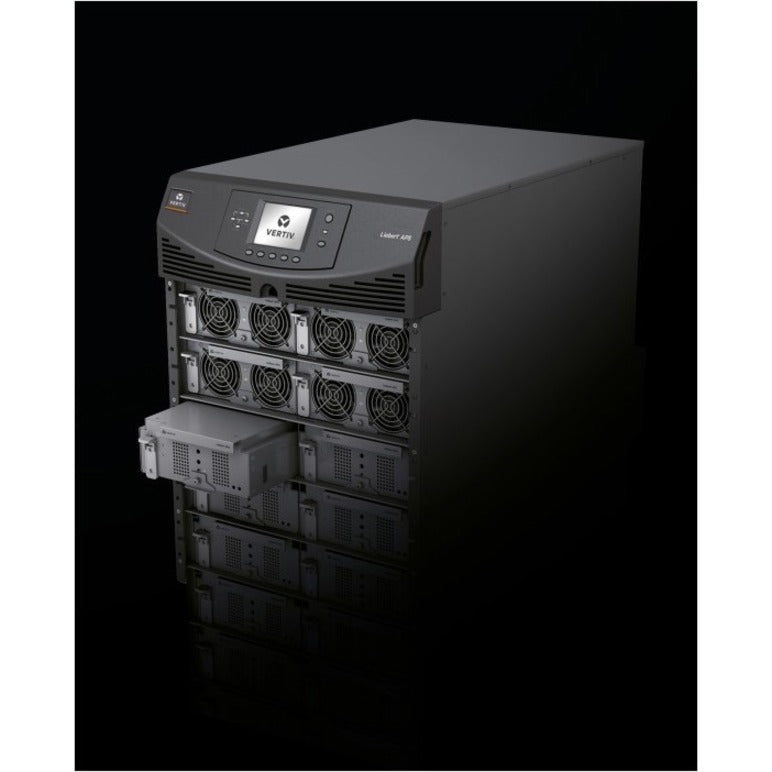

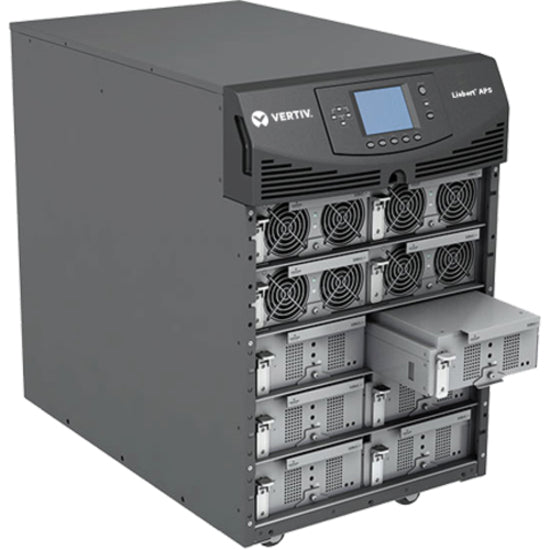

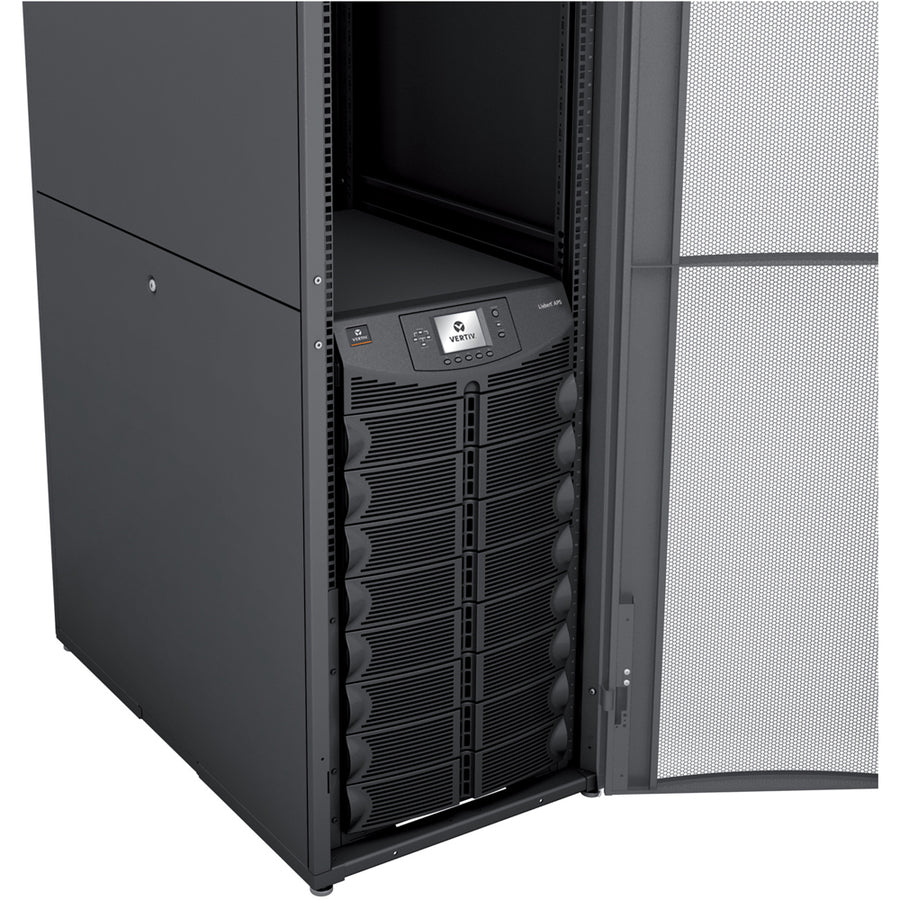

The Vertiv Liebert APS AS3A0NCVGNNXLKB is a modular 5kVA UPS system scalable to 15kVA N+1 redundancy, designed for room and row-based IT applications. It features online double conversion for true continuous power, delivering clean sine wave output with up to 15 minutes full load runtime and 38 minutes at half load.

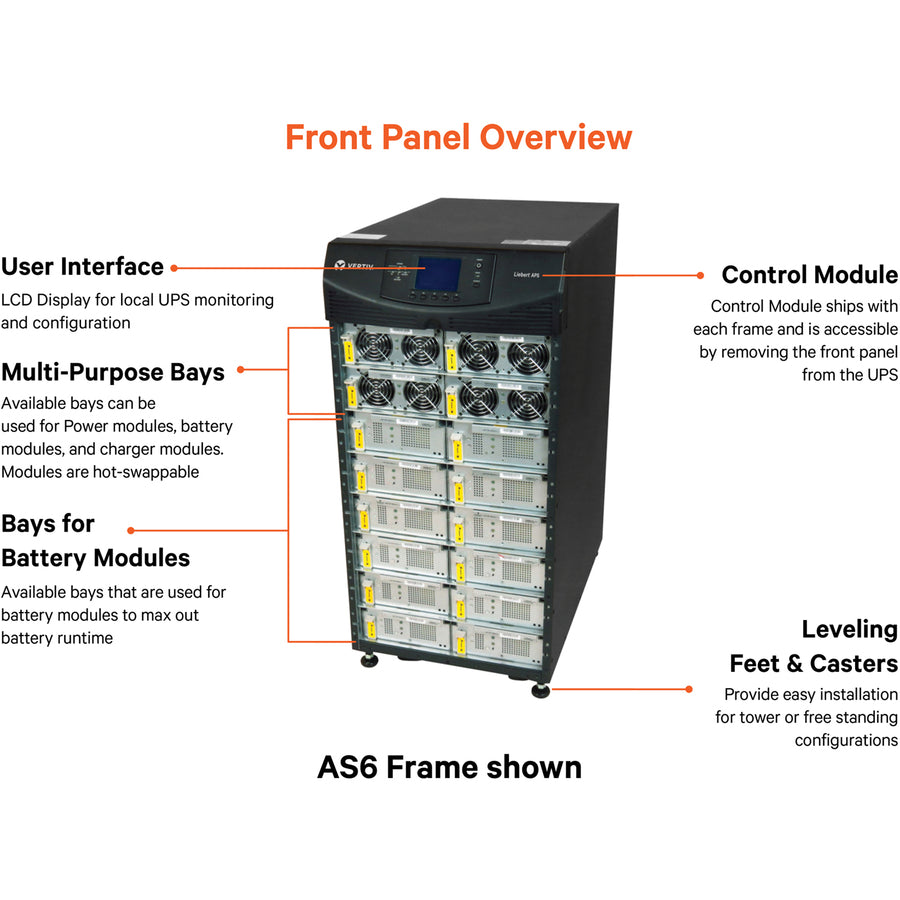

This UPS includes factory-installed SNMP/webcard (IS-UNITY-DP) for remote monitoring, hot-swappable power and battery modules, and integrated step-down transformer with both 208V and 120V output support. The system supports high availability with a 200% overload capacity and intelligent battery management. Designed for sustainability, the APS achieves 92% energy efficiency, reducing TCO while ensuring uptime for mission-critical systems.
| Category | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Liebert |
| Model Number | AS3A0NCVGNNXLKB |
| Product Line | APS |
| UPS Type | Online Double Conversion UPS |
| Scalability | 5kVA to 15kVA N+1 Redundant |
| Input Voltage | 208V Single Phase (120V-280V range) |
| Output Voltage | 208V and 120VAC (Internal Step-Down Transformer) |
| Load Capacity | 5000VA / 4500W |
| Form Factor | Rack/Tower Convertible |
| Runtime | 15 Minutes (Full Load), 38 Minutes (Half Load) |
| Efficiency | Up to 92% |
| Battery Type | Valve-Regulated Lead Acid, Hot Swappable |
| Remote Management | SNMP/Webcard (IS-UNITY-DP), Power Insight Software |
| Interfaces | USB, Serial Port, EPO |
| Environmental Sensors | Leak, Temperature, Humidity |
| Operating Temp | Up to 104°F (40°C) |
| Dimensions (H x W x D) | 27" x 17" x 32" |
| Weight | Approx. 53.5 lbs |
| Certifications | UL 1778, CSA, FCC, NOM, RoHS, WEEE, REACH, ANSI C62.41 |
| Package Includes | UPS, Rack Mount Kit, USB Cable, Manuals, Power Insight Software |
| Warranty | 5-Year Limited |
| Condition | New and Factory Fresh |
