Description
The Vertiv Liebert APS AS6A0NCVGNNXLKB is a modular, online double conversion UPS system offering 5kVA base capacity scalable up to 20kVA N+1 redundancy. Built for mission-critical applications, this split-phase 120/208V system ensures continuous, clean power delivery, providing up to 15 minutes full-load runtime with intelligent battery management and high efficiency (up to 92%).

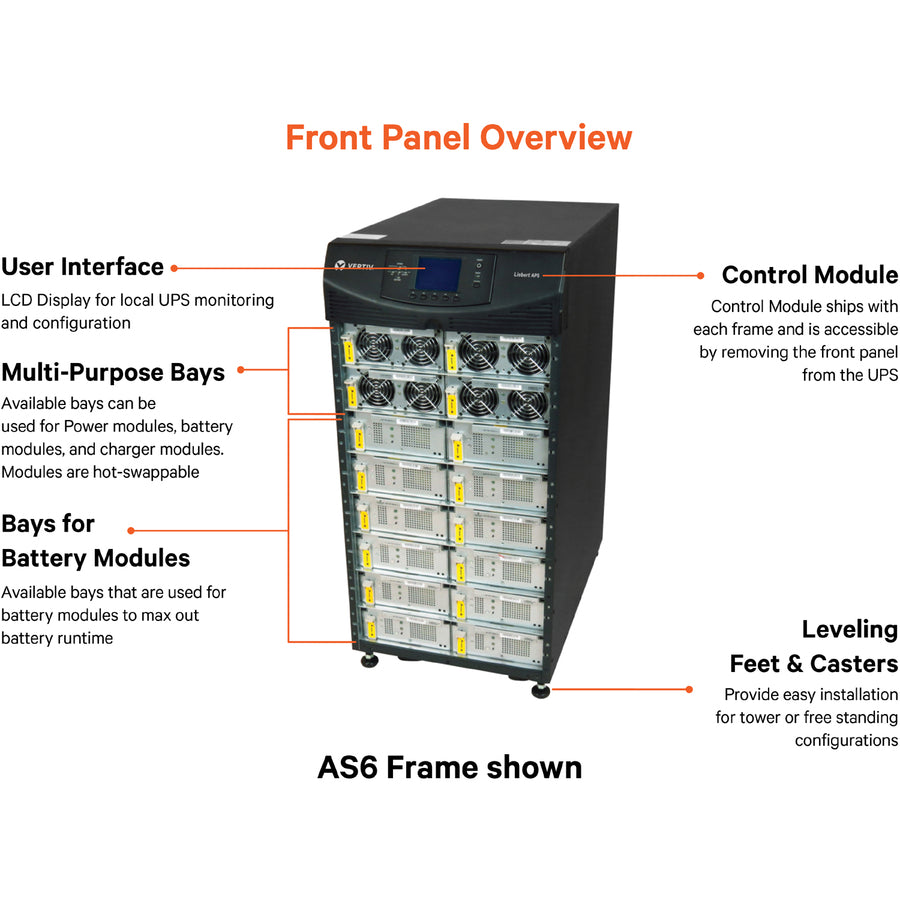

It includes factory-installed SNMP/Webcard (IS-UNITY-DP) for network monitoring and FREE Vertiv Power Insight software. Featuring hot-swappable FlexPower™ modules, transformer isolation, and robust compliance to global safety and environmental standards, this UPS is ideal for data centers, network closets, and IT edge locations.
| Category | Details |
|---|---|
| Model Number | AS6A0NCVGNNXLKB |
| Brand | Vertiv Liebert |
| Product Type | Online Double Conversion UPS |
| Form Factor | Rack/Tower |
| Load Capacity | 5kVA (Scalable up to 20kVA N+1) |
| Full Load Runtime | Up to 15 Minutes |
| Half Load Runtime | Up to 40 Minutes |
| Input Voltage | 120–280V AC |
| Output Voltage | 208/120V Split Phase (Configurable 200/100 to 240/120VAC) |
| Input/Output Frequency | 70Hz Input / 60Hz Output |
| Plug/Connector | Hard Wire 4-wire (L-L-N-G) |
| Hot Swappable Modules | Yes – FlexPower Modules & Battery Packs |
| Battery Chemistry | Valve-Regulated Lead Acid (VRLA) |
| Battery Capacity | 36W @ 15min-rate to 1.67V/cell @ 25°C |
| Max Charge Current | Power module charger: 1.8A, Charger module: 10A |
| Nominal DC Voltage | 144 VDC |
| Monitoring | LCD Display, EPO Port, USB (HID), Serial Port |
| Network Card | Factory Installed IS-UNITY-DP SNMP/Webcard |
| Environmental Sensors | Leak, Temperature, Humidity Sensors |
| Certifications | UL 1778 4th Ed, CSA 22.2, FCC Part 15 Class A, IEC/EN/AS 62040 |
| Compliance | RoHS 2, WEEE, REACH |
| Operating Temp | Max 104°F (40°C) |
| Humidity | 0–95% Non-Condensing |
| Altitude | 3000m (10000 ft) at 25°C |
| Software Included | Trellis™ Power Insight |
| Dimensions (H x W x D) | 49" x 17" x 34" |
| Shipping Weight | 1 lb |
| Warranty | 2 Years (Limited) |
| Product Condition | New and Factory Fresh |
