Description
The Vertiv Liebert APS AS6A0NCUGNNXLKB is a 5kVA online double-conversion UPS scalable to 20kVA N+1, engineered for mission-critical environments demanding reliability and flexibility. Operating on a 120/208V split phase, this modular UPS ensures continuous power with up to 5 minutes runtime at full load, extendable with additional battery modules.

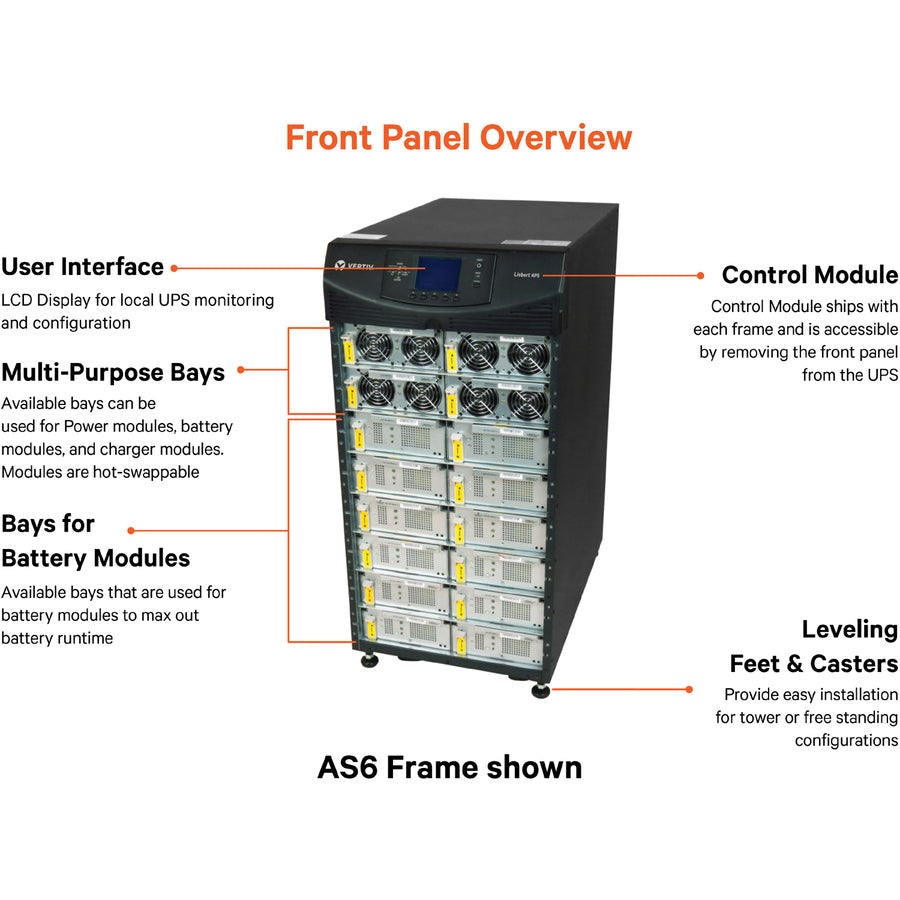

Designed for rack or tower configuration, the unit includes hot-swappable FlexPower modules, intelligent battery management, and factory-installed SNMP/Webcard (IS-UNITY-DP) enabling remote monitoring and free Power Insight software. It supports 120V and 208V output, and includes built-in transformer and environmental sensors for leak, temperature, and humidity detection.
Ideal for data centers and enterprise IT systems, this system helps reduce total cost of ownership with up to 92% efficiency and “pay-as-you-grow” expansion flexibility.
Product Highlights
-
5 Minutes Full Load Runtime
-
Online Double Conversion UPS
-
Rack/Tower Convertible
-
Factory-Installed SNMP/Webcard | Built-in Transformer
-
Free 208 and 120VAC Output
-
New and Factory Fresh | 2-Year Limited Warranty
-
Shipping Weight: 1 lb
| Category | Details |
|---|---|
| Brand | Vertiv Liebert |
| Part Number | AS6A0NCUGNNXLKB |
| Power Capacity | 5kVA, scalable up to 20kVA N+1 |
| Topology | Online Double Conversion |
| Input Voltage Range | 120V AC – 280V AC |
| Output Voltage | 200/100 – 240/120V AC |
| Input/Output Frequency | 60Hz |
| Phase | Single Phase |
| Plug/Connector | Hard Wire 4-wire (L-L-N-G) |
| Form Factor | Rack/Tower Convertible |
| Battery Type | Valve-regulated Lead Acid (VRLA), Hot-Swappable |
| Runtime (Full/Half) | 5 min (full load) / 16 min (half load) |
| Battery Capacity | 36W @ 15-min rate to 1.67V/cell @ 25°C |
| Max Operating Temp | 104°F (40°C) |
| Environmental Sensors | Leak, Temperature, Humidity |
| Altitude Rating | 3000m (10,000 ft) @ 25°C (77°F) |
| Management Interface | SNMP/Web (IS-UNITY-DP pre-installed), USB HID, Serial Port, EPO |
| Software | Trellis™ Power Insight |
| Certifications | UL 1778 4th Ed, CSA 22.2, FCC Part 15 Class A, RoHS 2, REACH, IEC/EN/AS 62040 |
| Efficiency | Up to 92% |
| Warranty | 2 Years Limited |
| Country of Origin | USA |
