Description

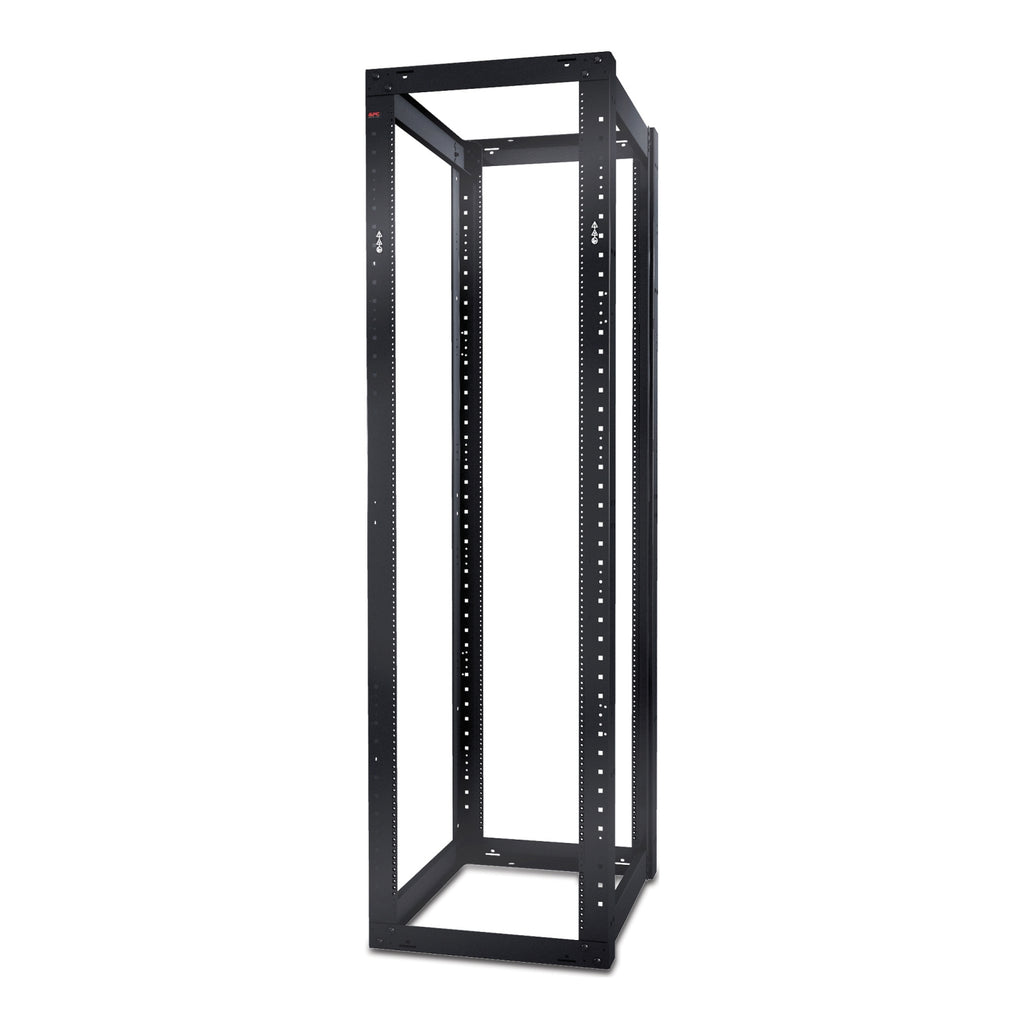

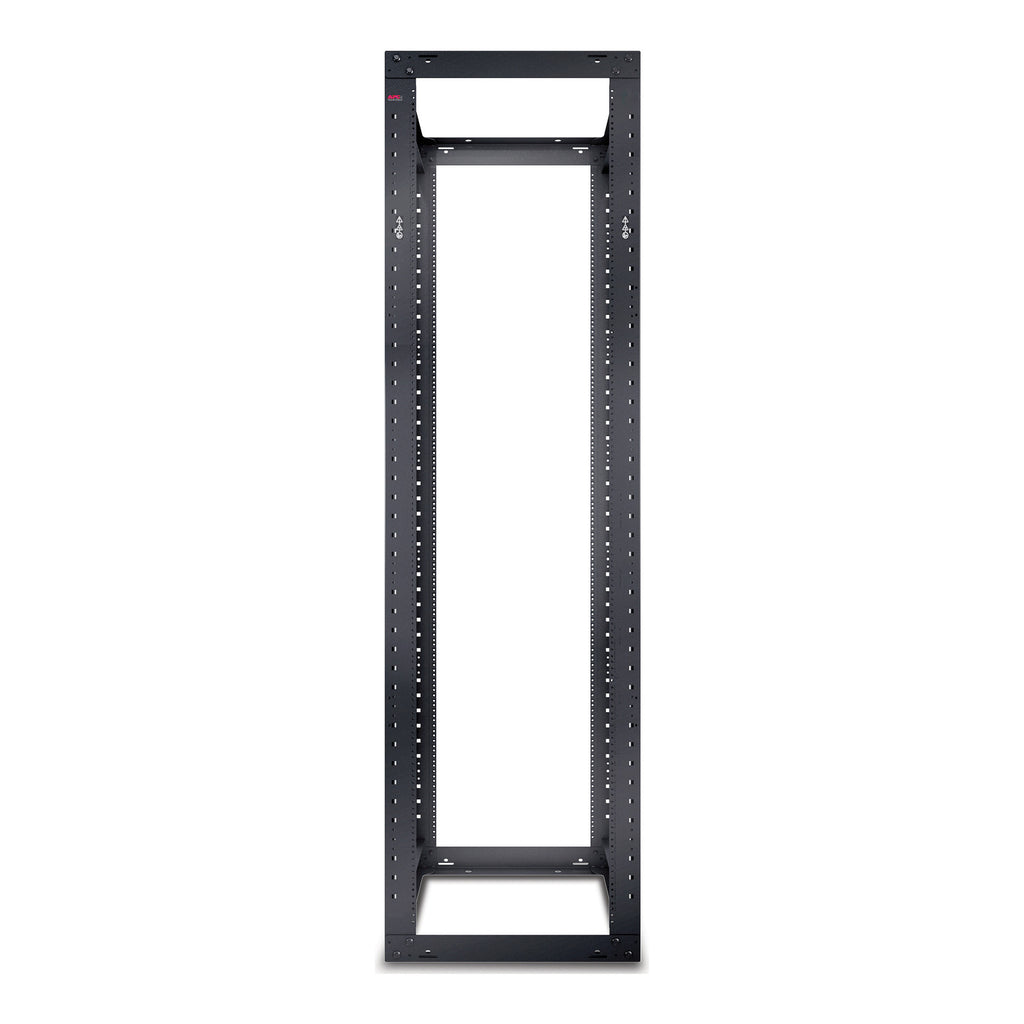

The APC NetShelter AR204A is a high-capacity 44U open frame rack designed for data centers, network rooms, and enterprise IT environments that require maximum airflow, accessibility, and structural strength. This 4-post open rack supports standard 19-inch equipment and uses 12-24 threaded mounting holes for secure and flexible device installation.
Built with a durable steel frame and finished in black, the AR204A supports up to 2000 lbs of static load, making it ideal for heavy servers, networking gear, and power infrastructure. Its open design allows unrestricted airflow and easy access from all sides, simplifying cable management, equipment changes, and maintenance. The rack ships fully assembled with an installation guide, enabling fast deployment in professional IT environments.
| Specification | Details |
|---|---|
| Brand | APC |
| Model / SKU | AR204A |
| Product Type | Open Frame Rack |
| Rack Units | 44U |
| Rack Style | 4-Post |
| Rack Width | 19 in |
| Mounting Hole Type | 12-24 Threaded |
| Color | Black |
| Height | 83.9 in (2130 mm) |
| Width | 23.6 in (600 mm) |
| Depth | 29.4 in (747 mm) |
| Maximum Mounting Depth | 29.1 in (739.9 mm) |
| Minimum Mounting Depth | 29.1 in (739.9 mm) |
| Static Load Capacity | 2000 lb (907.2 kg) |
| Net Weight | 92.2 lb (41.82 kg) |
| Standards Compliance | EIA-310E |
| Mounting Mode | Free-standing |
| Assembly | Ships assembled |
| Included Accessories | Installation guide |
| Warranty | 5 Years |
