Description

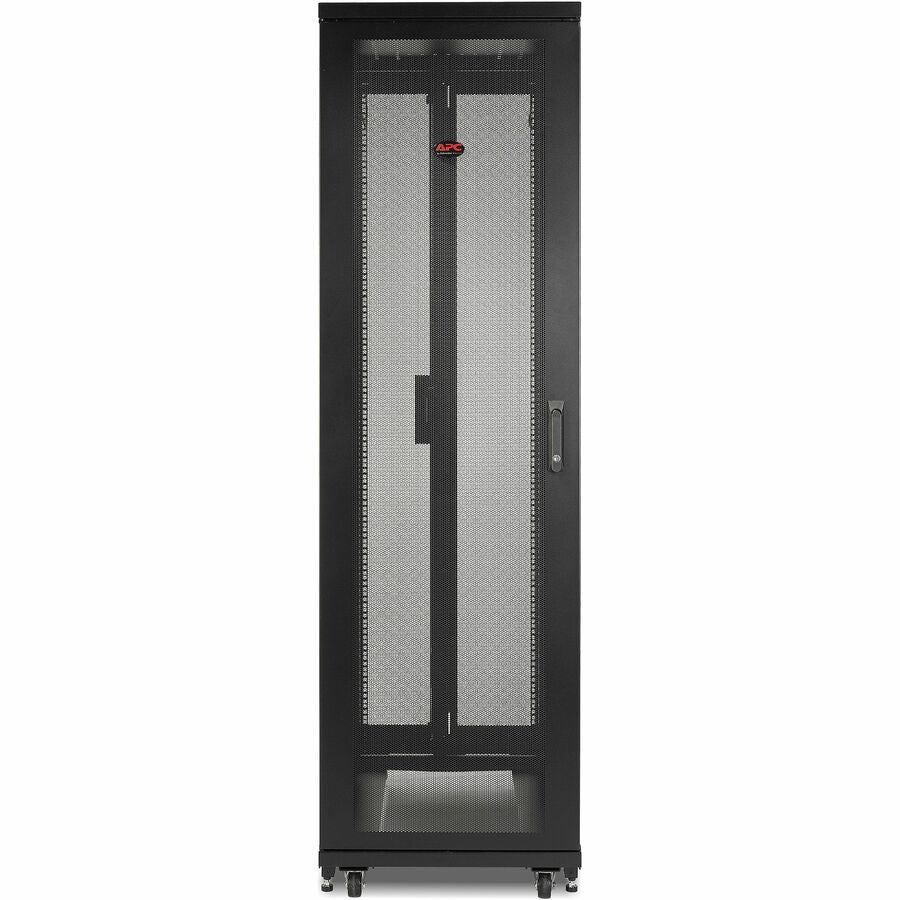

The APC NetShelter SV AR2400FP1 is a 42U IT enclosure designed for sites with limited access space, offering an unassembled format for easier transport and on-site assembly. It supports heavy IT equipment with a static load capacity of 2205 lbs and dynamic load of 1014 lbs. The enclosure includes adjustable mounting rails, side panels, locking mechanisms, casters, and all necessary installation hardware. Conforming to UL and EIA standards, it provides reliable infrastructure support in data centers or server rooms with narrow entryways.
| Attribute | Details |
|---|---|
| Model | AR2400FP1 |
| Rack Units | 42U |
| Mounting Depth (Min/Max) | 6.60 in (16.76 cm) / 30.60 in (77.72 cm) |
| Rack Width | 19 in |
| Dimensions (H x W x D) | 80.98 x 23.62 x 41.73 in (205.7 x 60 x 106 cm) |
| Weight (Product / Packaged) | 247.4 lb / 486.5 lb (112.2 kg / 220.7 kg) |
| Color | Black |
| Material Thickness | 14-gauge (rails), 16-gauge (doors), 18-gauge (side panels) |
| Load Capacity | 1014 lb (dynamic), 2205 lb (static) |
| Included Components | Mounting rails, baying hardware, casters, doors, key(s), roof, side panels |
| Compliance | UL 2416, UL 60950-1, EIA-310E |
| Country of Origin | China (CN) |
| Warranty | 5-year repair or replace |
