Description

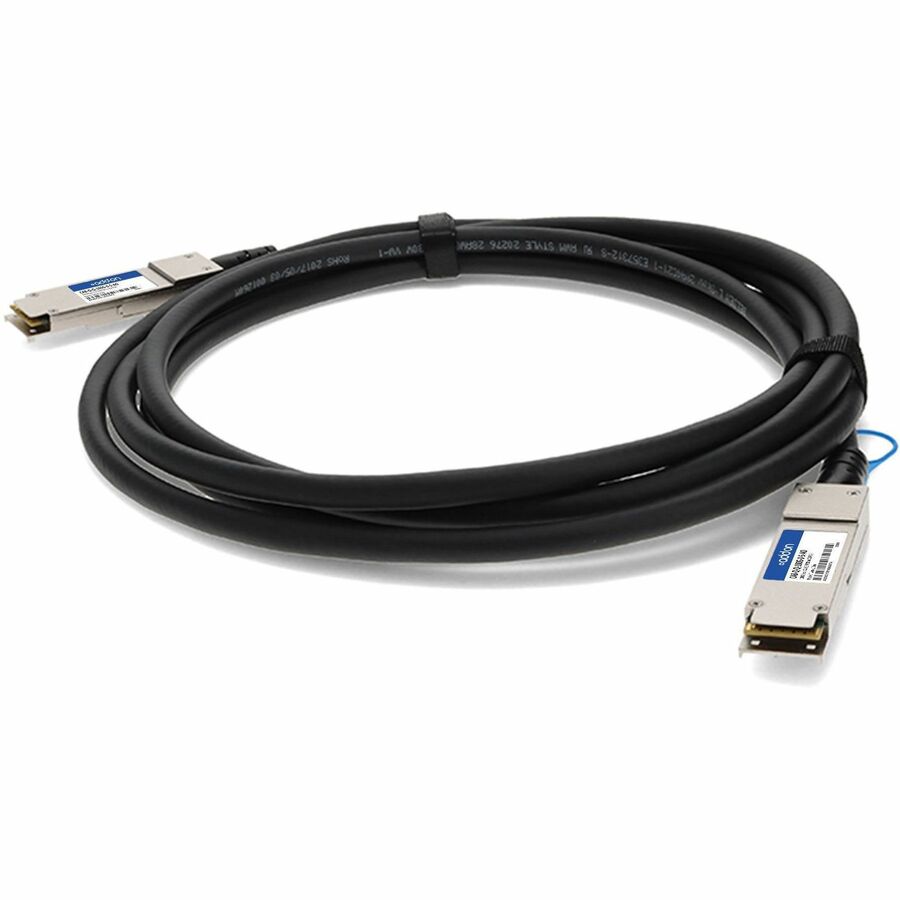

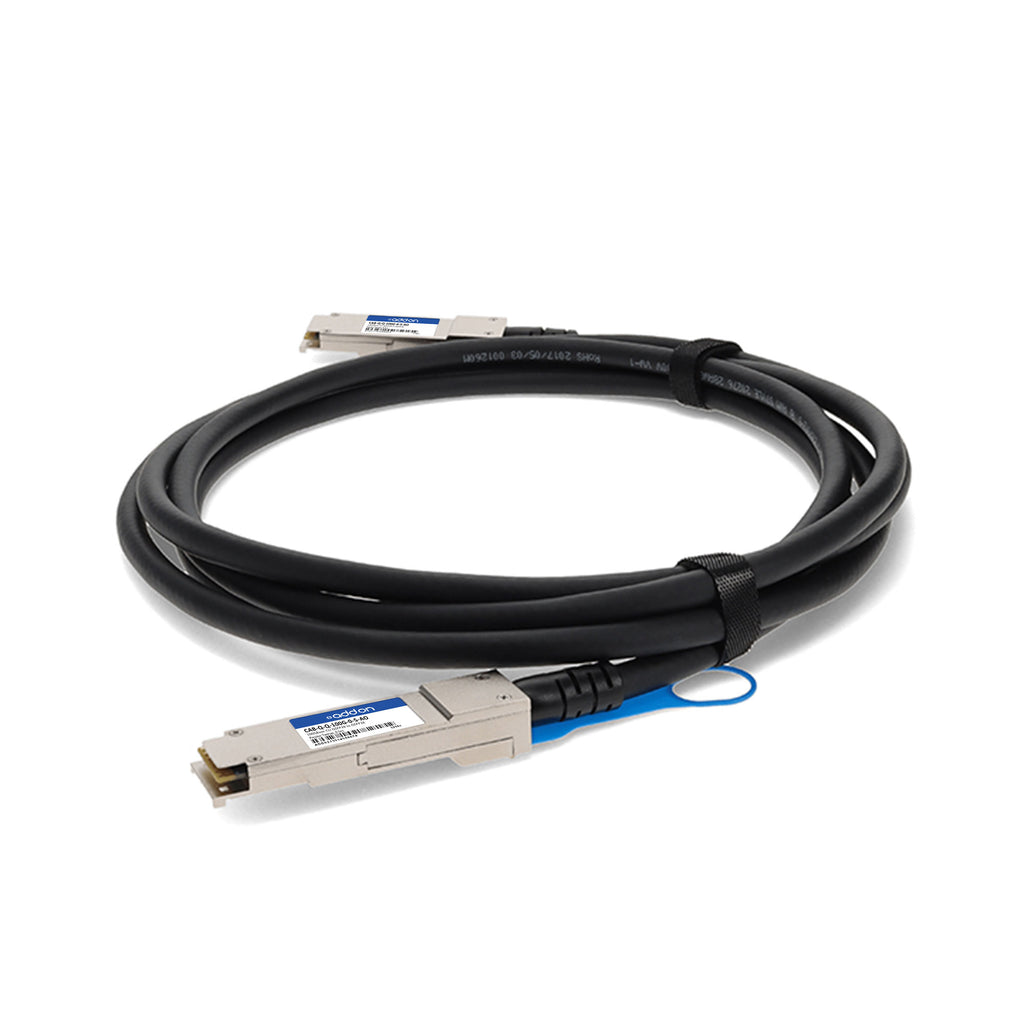

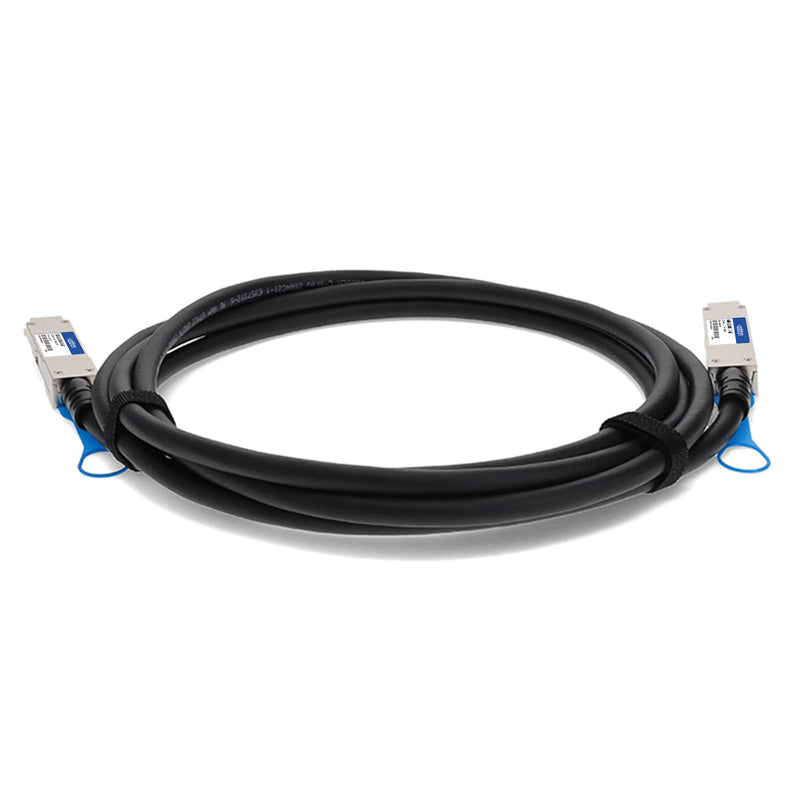

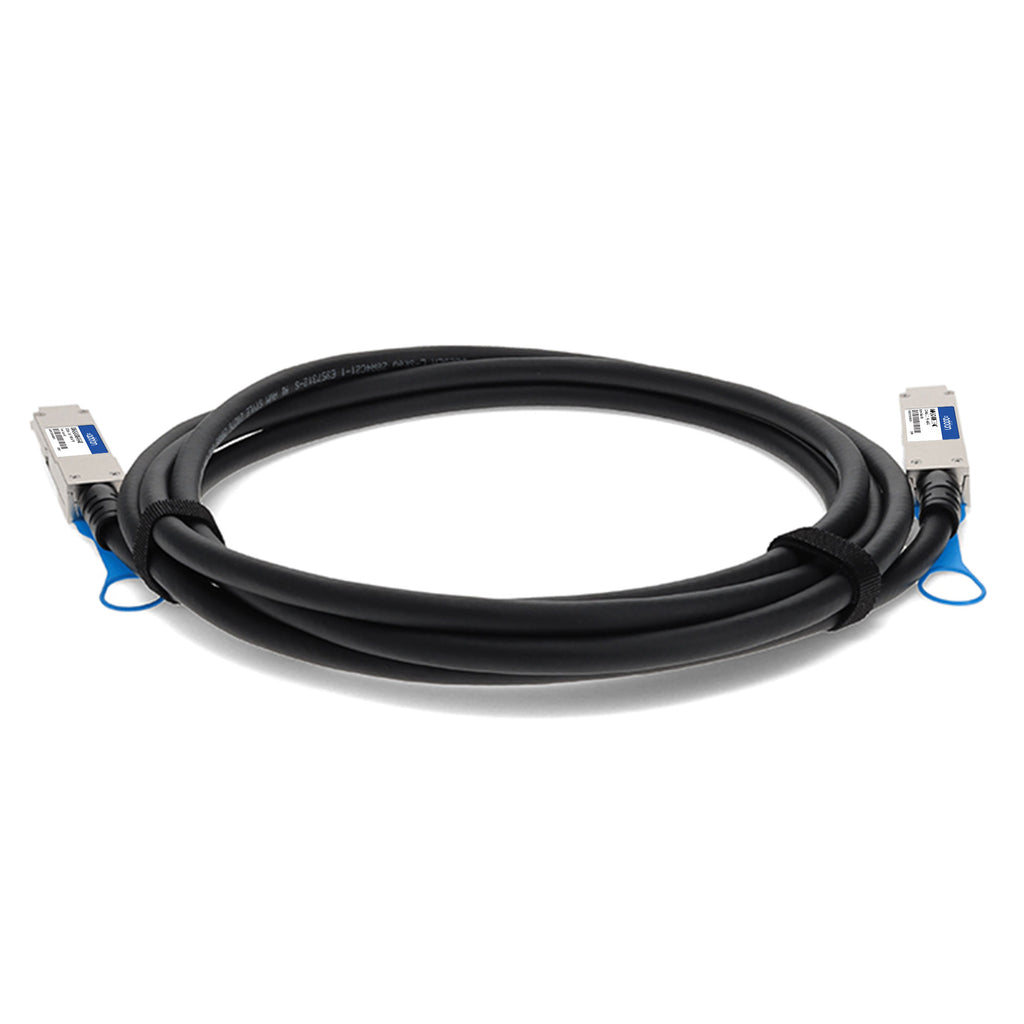

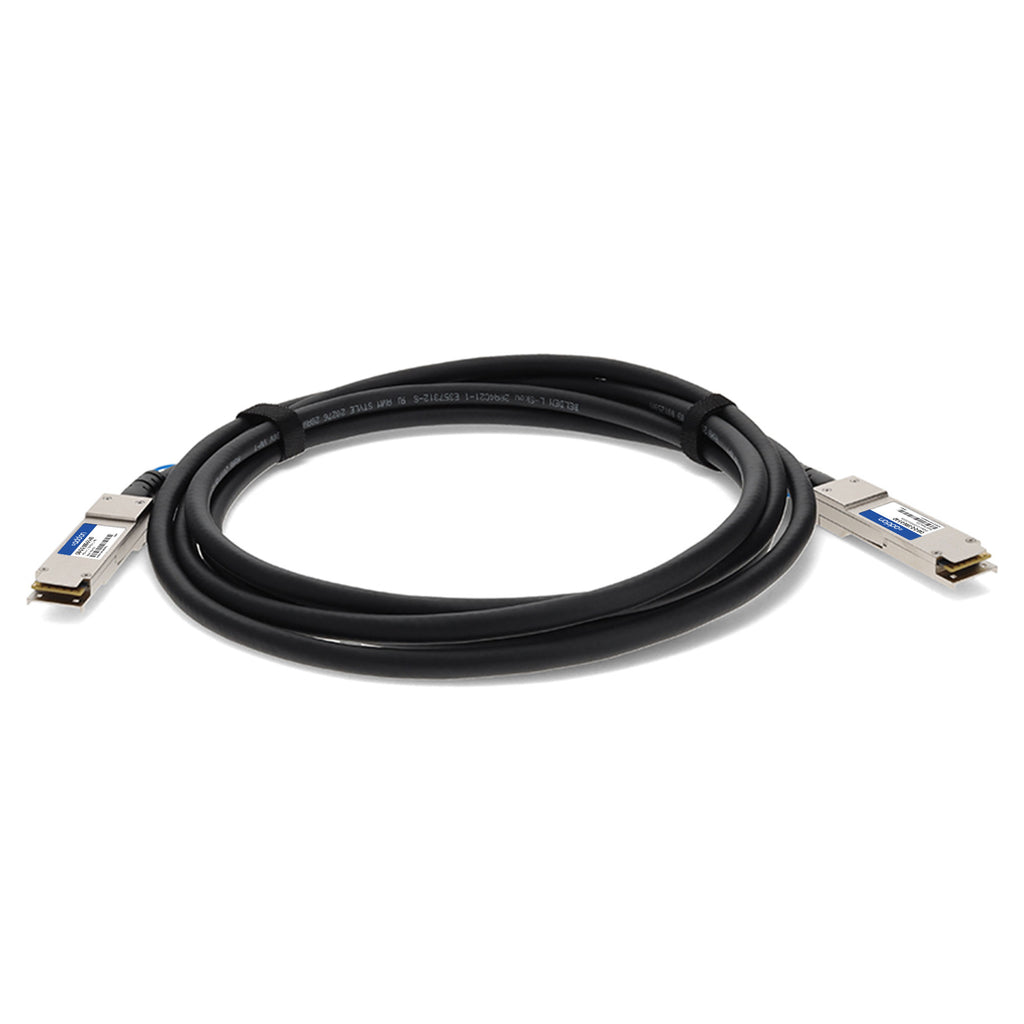

The AddOn Arista Networks® CAB-Q-Q-100G-0-5-AO compatible 100GBase-CU QSFP28 direct attach cable provides a high-performance, cost-effective solution for short-range 100 Gbps connections. Designed for top-of-rack, server-to-switch, and switch-to-switch applications, this passive twinax copper cable delivers reliable, low-latency data transmission with minimal power consumption. Operating over a maximum reach of 0.5 m, it ensures seamless interoperability and compliance with QSFP28 MSA standards. Each cable is uniquely serialized, programmed, and rigorously tested for data-traffic and application performance, guaranteeing 100% functionality and compatibility with Arista Networks® equipment. TAA compliant and RoHS certified, it’s engineered for superior EMI shielding and long-term durability — backed by AddOn’s limited lifetime warranty.
| Specification | Details |
|---|---|
| Compatible OEM | Arista Networks® |
| SKU | CAB-Q-Q-100G-0-5-AO |
| Form Factor | QSFP28 to QSFP28 |
| Data Rate | Up to 100 Gbps bi-directional |
| Cable Type | Passive Twinax Direct Attach Cable |
| Length | 0.5 m |
| Wavelength | N/A (Copper) |
| Applications | 100 Gigabit Ethernet, Infiniband, Serial Data Transmission |
| Power Supply | Single 3.3 V |
| Input Voltage Range | 3.14 V – 3.46 V |
| Differential Impedance | 100 Ω |
| Insertion Loss Level | CA-25G-N |
| Cable Diameter | 6.9 mm |
| Minimum Bending Radius | 35 mm |
| Operating Temperature | 0 °C to 70 °C |
| Storage Temperature | -40 °C to 85 °C |
| Compliance | QSFP28 MSA, RoHS, TAA |
| Warranty | Limited Lifetime Warranty |
