Description

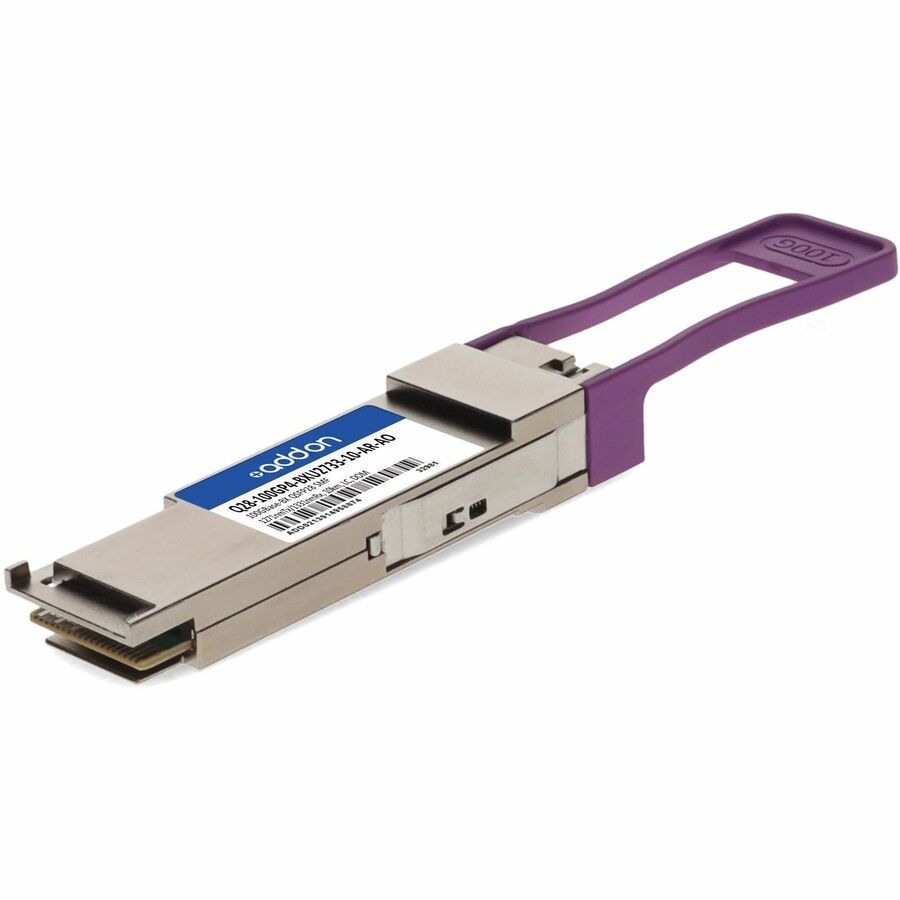

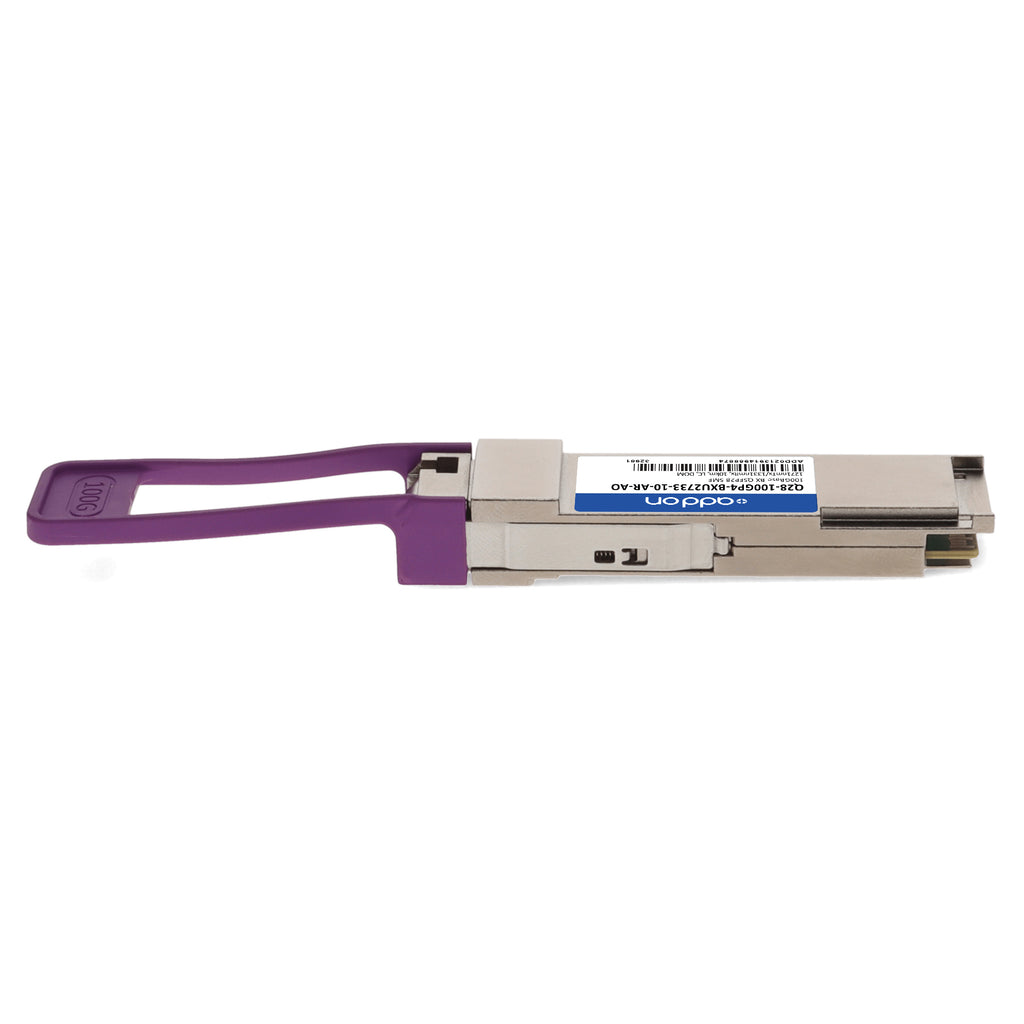

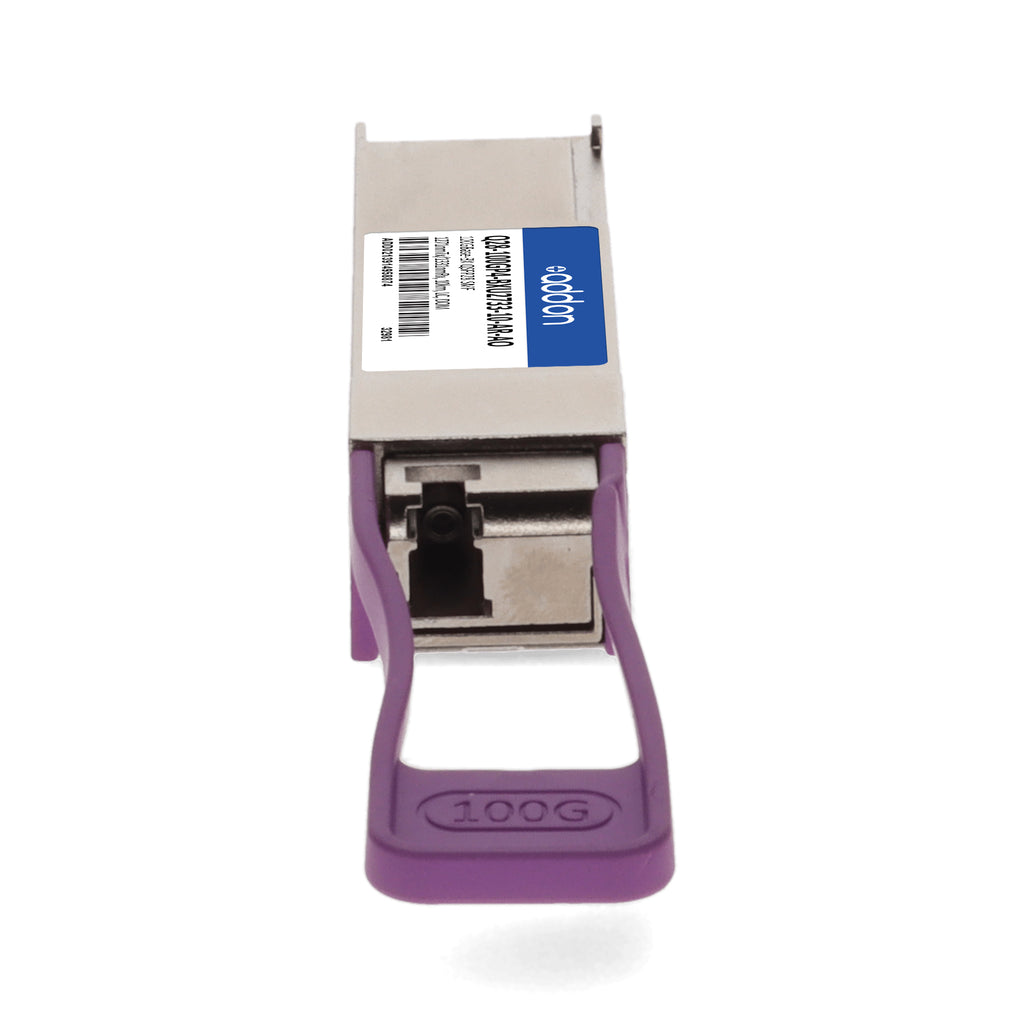

The AddOn Arista Networks® Q28-100GP4-BXU2733-10-AR-AO is a 100GBase-BX QSFP28 single lambda transceiver designed for high-performance data center and enterprise network environments. It delivers up to 100Gbps throughput over 10km of single-mode fiber (SMF) using 1271nm transmit and 1331nm receive wavelengths via a bi-directional LC connector.
Engineered for seamless interoperability, this module is 100% compatible with the equivalent Arista Networks® transceiver, ensuring plug-and-play installation and flawless operation. Built to 100G Lambda MSA 100G-LR specifications and SFF-8636 Rev 2.10a, it features hot-swappable functionality, digital optical monitoring (DOM), and forward error correction (FEC) support for optimized link integrity and real-time monitoring.
The transceiver is TAA compliant, RoHS lead-free, and includes robust ESD protection, low EMI metal housing, and commercial temperature operation (0°C to 70°C). Each unit undergoes rigorous testing for performance, reliability, and compatibility — backed by AddOn’s limited lifetime warranty.
| Specification | Description |
|---|---|
| SKU | Q28-100GP4-BXU2733-10-AR-AO |
| Form Factor | QSFP28 |
| Data Rate | 100Gbps |
| Transceiver Type | 100GBase-BX Single Lambda |
| Wavelength (Tx/Rx) | 1271nm (Tx) / 1331nm (Rx) |
| Transmission Distance | Up to 10 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | LC Duplex (BiDi) |
| Modulation Format | PAM4 |
| Compliance Standards | 100G Lambda MSA 100G-LR, SFF-8636 Rev 2.10a |
| Power Supply Voltage | 3.3V |
| Power Dissipation | 4.5 W (typ.) |
| Operating Temperature | 0°C to 70°C (Commercial) |
| DOM Support | Yes |
| FEC Support | Yes |
| Hot Swappable | Yes |
| ESD Protection | MIL-STD-883E Method 3015.4 compliant |
| EMI/EMC Compliance | FCC Part 15 Subpart B, EN55022:2010 |
| Laser Safety | FDA 21CFR, EN60950-1, IEC 60825-1/2 |
| RoHS Compliance | Yes, EU RoHS 2.0 (2015/863/EU) |
| Applications | 100G Ethernet, Data Centers, High-Speed Networking |
| Warranty | Limited Lifetime Warranty |
