Description

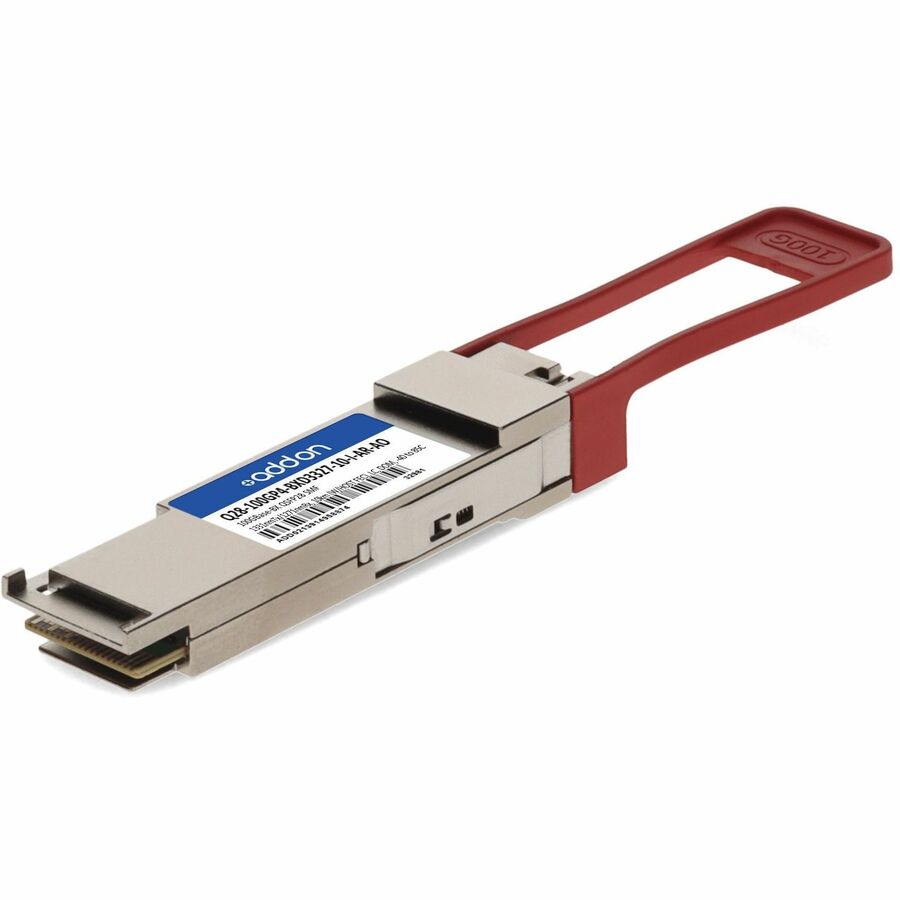

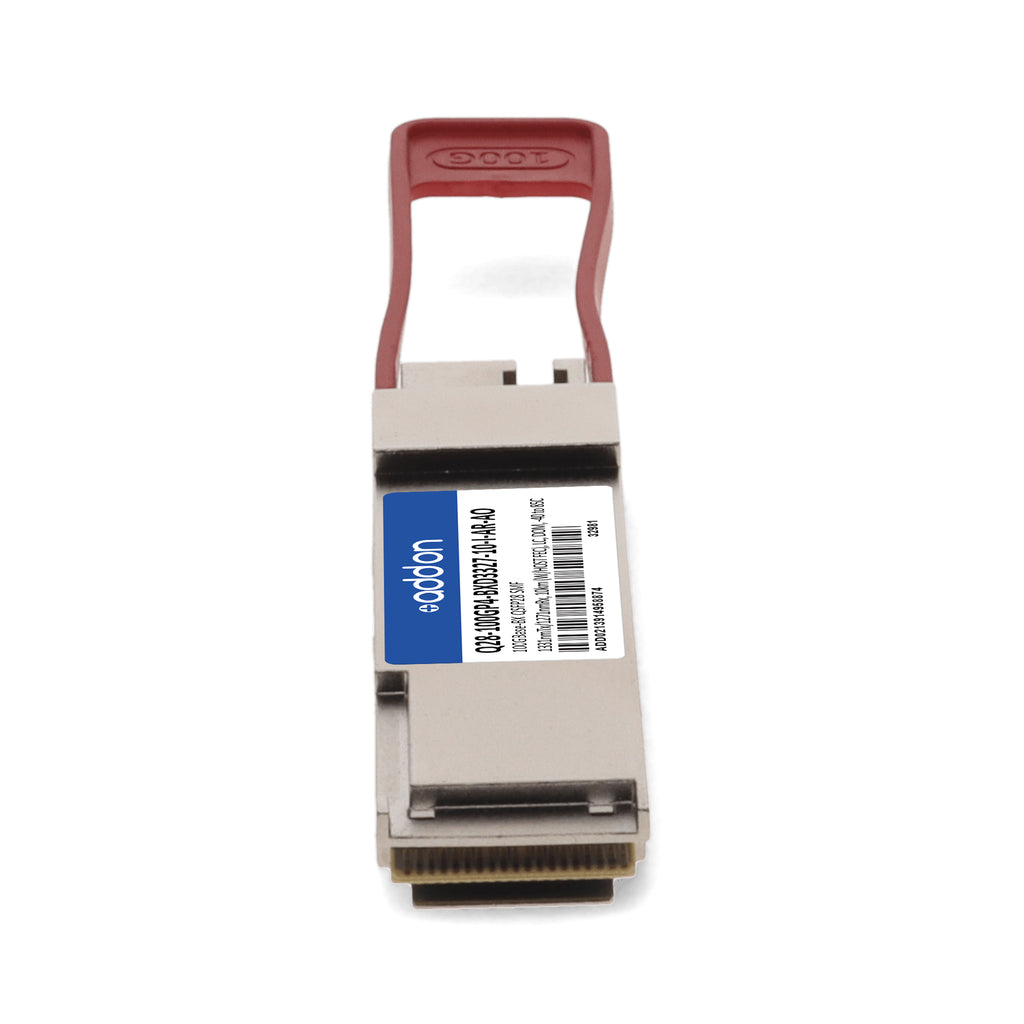

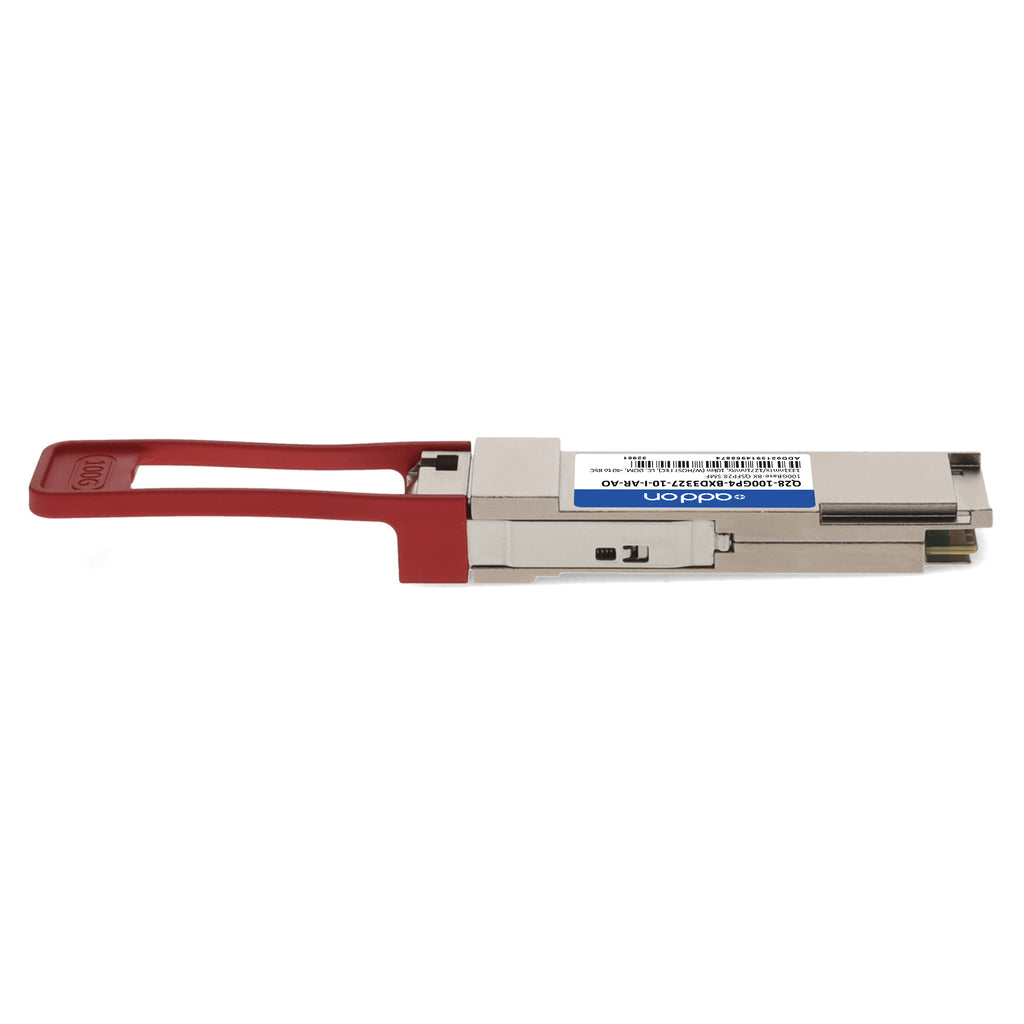

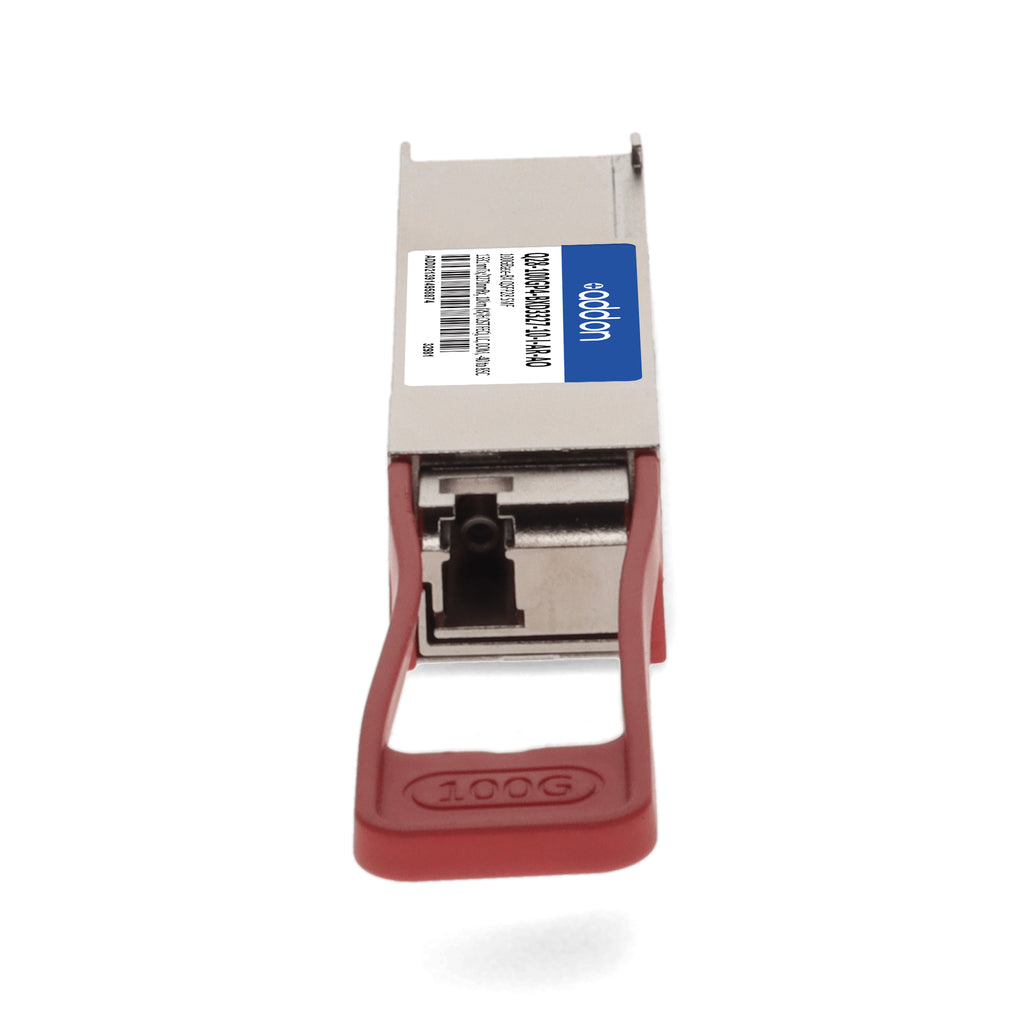

The AddOn Arista Networks® Compatible Q28-100GP4-BXD3327-10-I-AR-AO is a high-performance, TAA-compliant QSFP28 transceiver designed to deliver 100GBase-BX throughput up to 10 km over single-mode fiber (SMF). Leveraging PAM4 modulation and built to 100G Lambda MSA 100G-LR standards, it operates on wavelengths of 1331 nm transmit and 1271 nm receive via a bidirectional LC connector.
Engineered for industrial environments with an extended operating temperature range of -40 °C to 85 °C, this hot-swappable, plug-and-play module ensures seamless integration into existing Arista Networks® infrastructure. Each unit is individually programmed, uniquely serialized, and rigorously tested for data traffic and application performance to guarantee identical initialization and operation to OEM components.
With Digital Optical Monitoring (DOM) support for real-time diagnostics, excellent EMI shielding, and robust ESD protection, this module is ideal for data center, cloud infrastructure, and high-bandwidth Ethernet applications. Backed by AddOn’s industry-leading quality standards and limited lifetime warranty, it delivers reliable, high-speed connectivity without compromise.
| Specification | Details |
|---|---|
| Brand | AddOn |
| SKU | Q28-100GP4-BXD3327-10-I-AR-AO |
| Form Factor | QSFP28 |
| Data Rate | 100 Gbps |
| Reach / Distance | Up to 10 km |
| Wavelength (Tx/Rx) | 1331 nm Tx / 1271 nm Rx |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Bidirectional LC Duplex |
| Modulation | PAM4 |
| Compliance Standards | 100G Lambda MSA 100G-LR, SFF-8636 |
| Digital Diagnostics (DOM) | Supported |
| Temperature Range | -40 °C to +85 °C (Industrial) |
| Power Supply Voltage | 3.3 V |
| Power Dissipation | ≤ 4 W |
| Bit Error Rate (BER) | ≤ 2.4 × 10⁻⁴ (with FEC) |
| Extinction Ratio | ≥ 3.5 dB |
| Receiver Sensitivity (OMA) | ≤ -6.1 dBm |
| Receiver Overload | ≤ 4.5 dBm |
| Optical Return Loss Tolerance | ≥ 15.6 dB |
| Hot Swappable | Yes |
| TAA Compliant | Yes |
| ESD Protection | Excellent |
| RoHS Compliance | Yes |
| Warranty | Limited Lifetime Warranty |
