Description

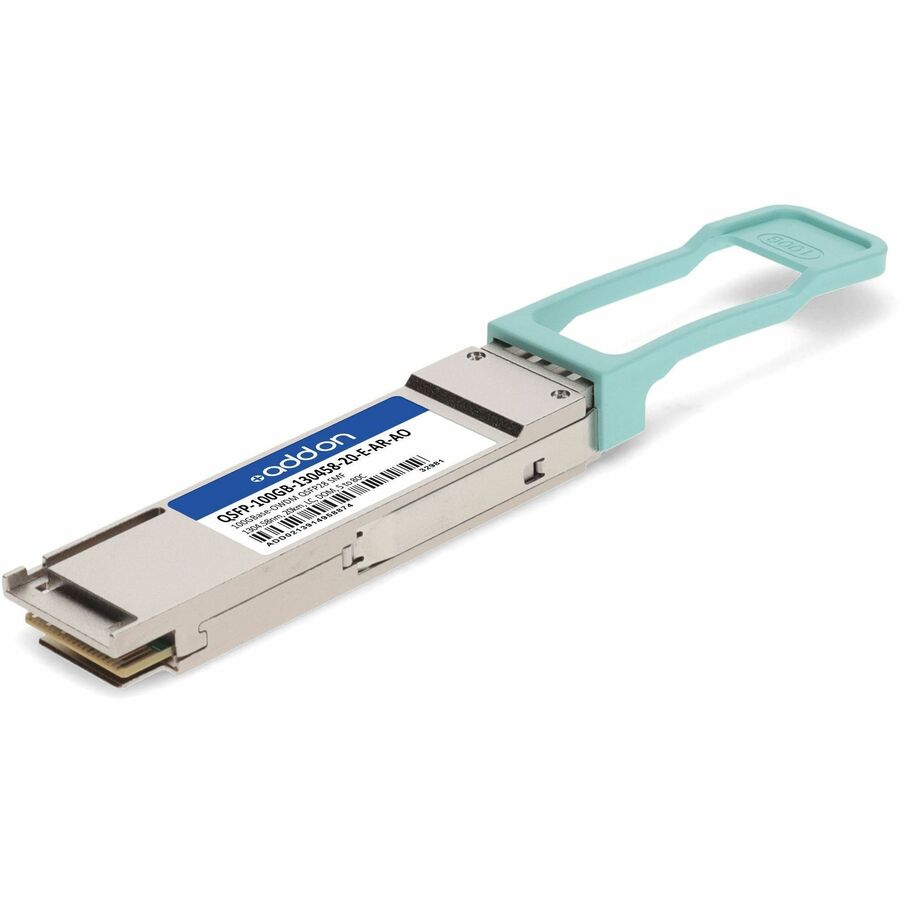

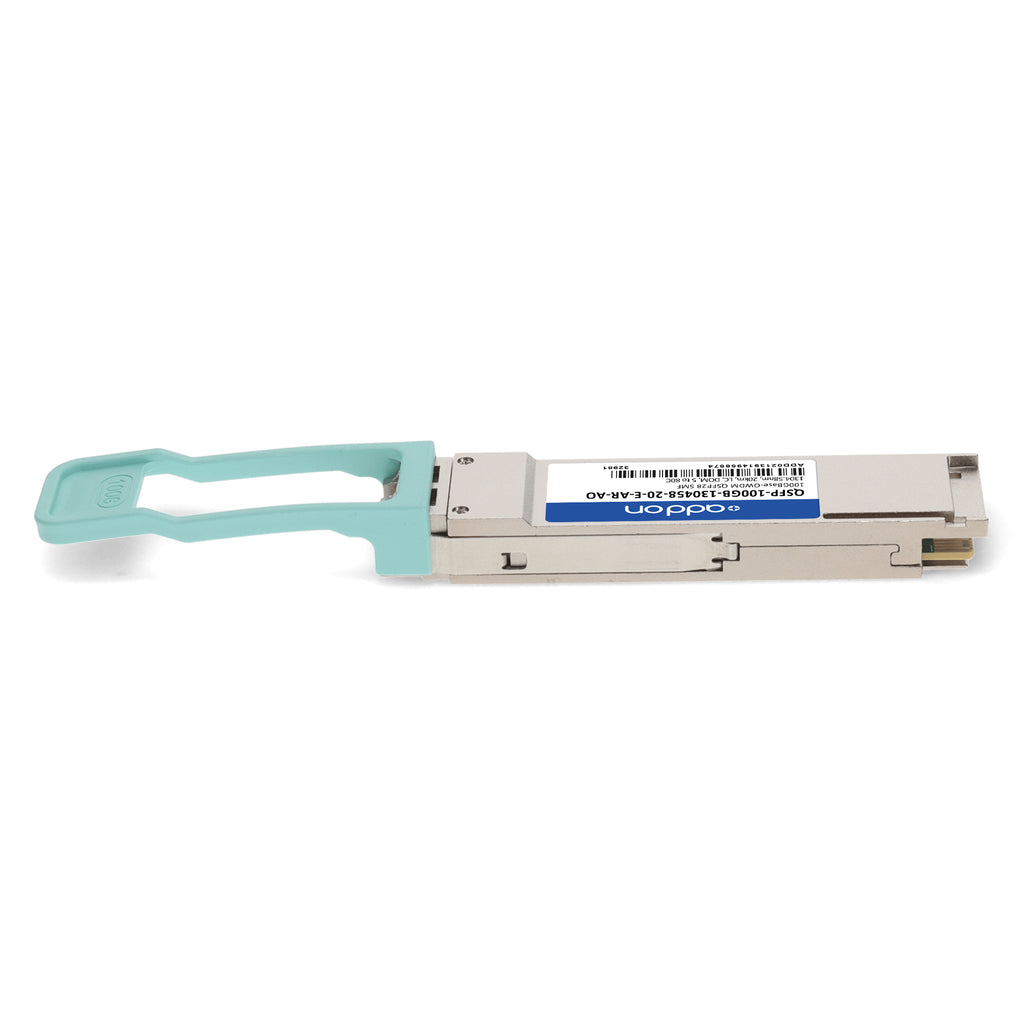

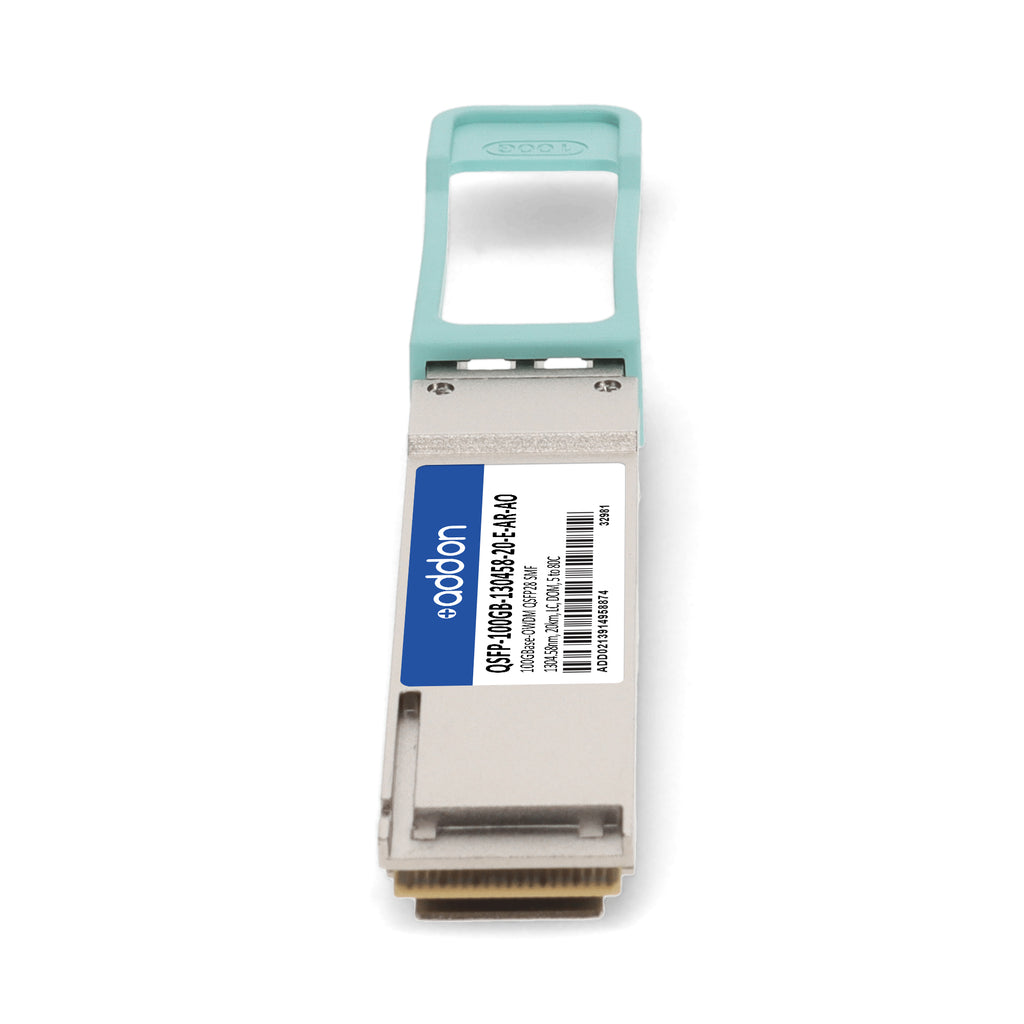

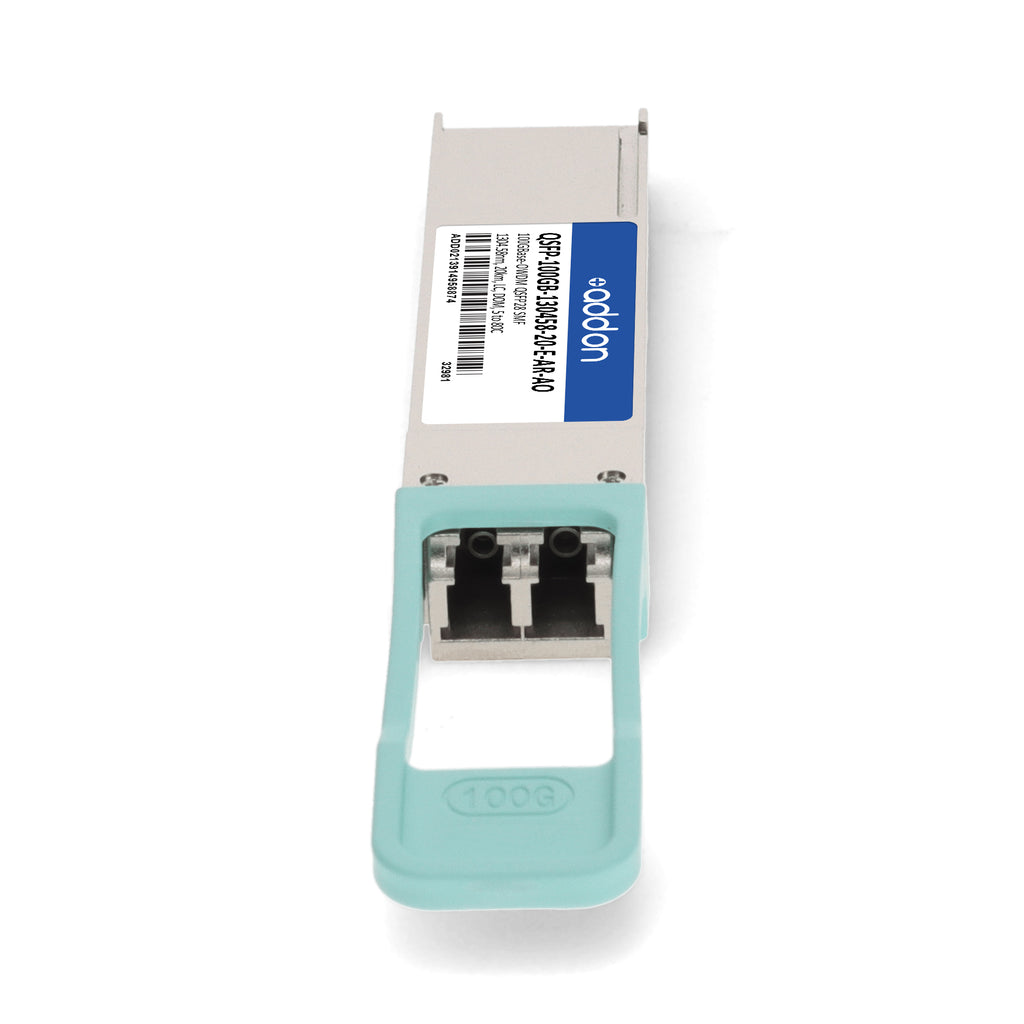

The AddOn Arista Networks® QSFP-100GB-130458-20-E-AR Compatible Transceiver is a high-performance, hot-pluggable QSFP28 optical module designed for 100GBase-OWDM Ethernet applications. It delivers up to 100Gbps PAM4 throughput over single-mode fiber (SMF) at distances up to 20km, operating on a 1304.58nm wavelength with duplex LC connectors. Featuring advanced OWDM 8-channel technology and a high-sensitivity APD receiver, this transceiver ensures exceptional signal integrity and network reliability for data center, access, and enterprise networks.
Compliant with QSFP28 MSA, IEEE 802.3bs, and 100G Lambda MSA standards, it also supports Digital Optical Monitoring (DOM) for real-time diagnostics and system performance management. Each unit is fully tested for compatibility and performance, TAA compliant, and backed by AddOn’s limited lifetime warranty.
| Specification | Description |
|---|---|
| SKU | QSFP-100GB-130458-20-E-AR-AO |
| Compatible OEM | Arista Networks® |
| Form Factor | QSFP28 |
| Data Rate | 106.25Gbps (PAM4) |
| Wavelength | 1304.58nm (O-Band, Channel OW304) |
| Reach | Up to 20km over SMF |
| Connector | Duplex LC |
| Modulation | PAM4 |
| Operating Temperature | -5°C to +80°C |
| Digital Diagnostic Monitoring (DOM) | Supported |
| Compliance | QSFP28 MSA, IEEE 802.3bs, 100G Lambda MSA, RoHS, TAA |
| Power Supply | +3.3V |
| Power Consumption | 4.4W (typical) |
| Transmitter Average Launch Power | 0 to 3.4 dBm |
| Receiver Sensitivity (OMAouter) | Max. (-14.0 dBm, SECQ-15.4) |
| Side-Mode Suppression Ratio | ≥ 30 dB |
| Extinction Ratio | ≥ 5.0 dB |
| Optical Return Loss Tolerance | 15.6 dB |
| Interface | I²C management |
| Hot-Swappable | Yes |
| Application | 100G Ethernet, Access, Enterprise Networks |
| Warranty | Limited Lifetime Warranty |
