Description

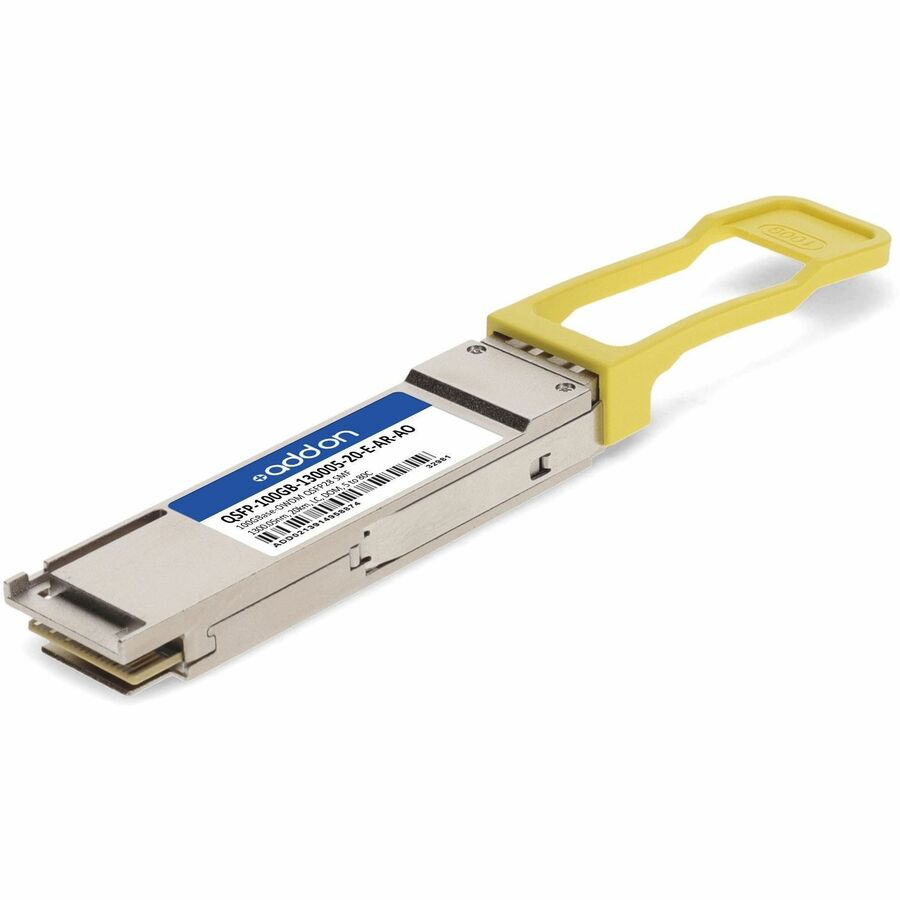

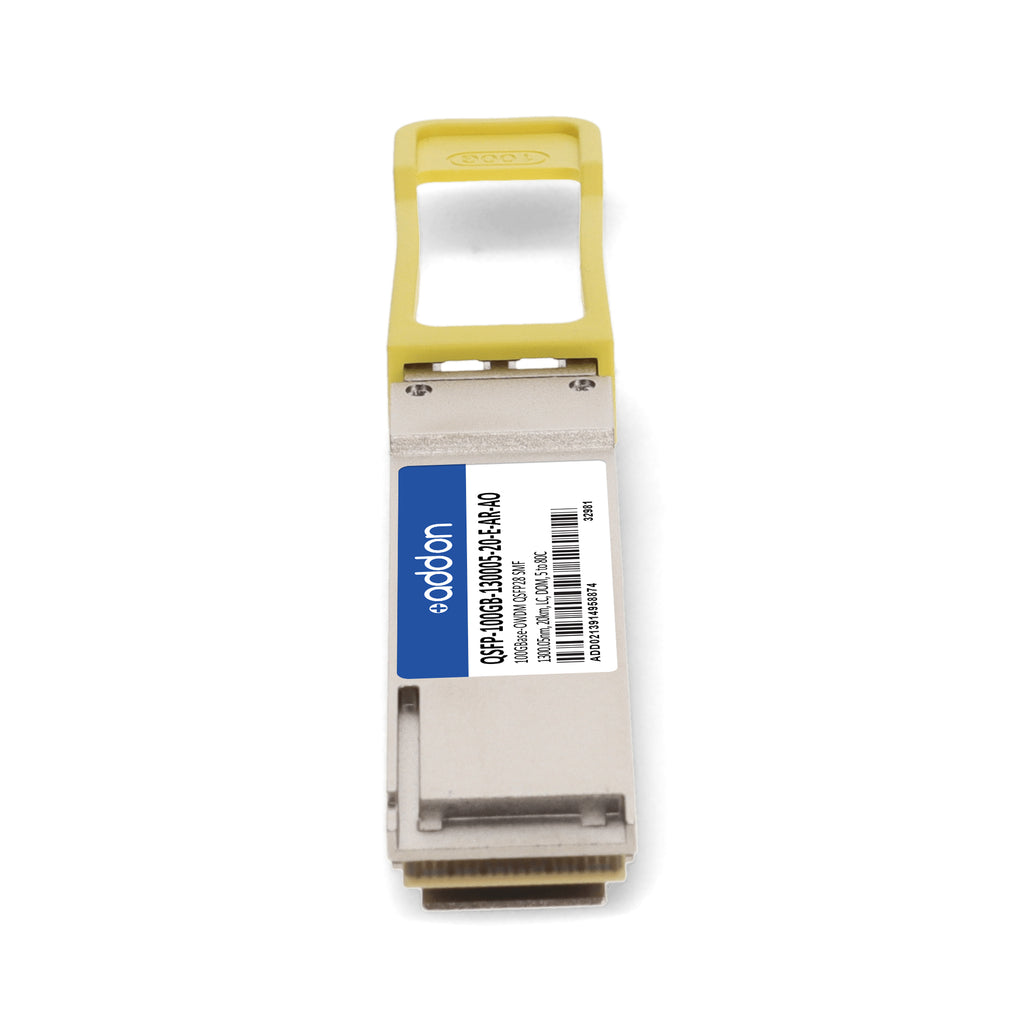

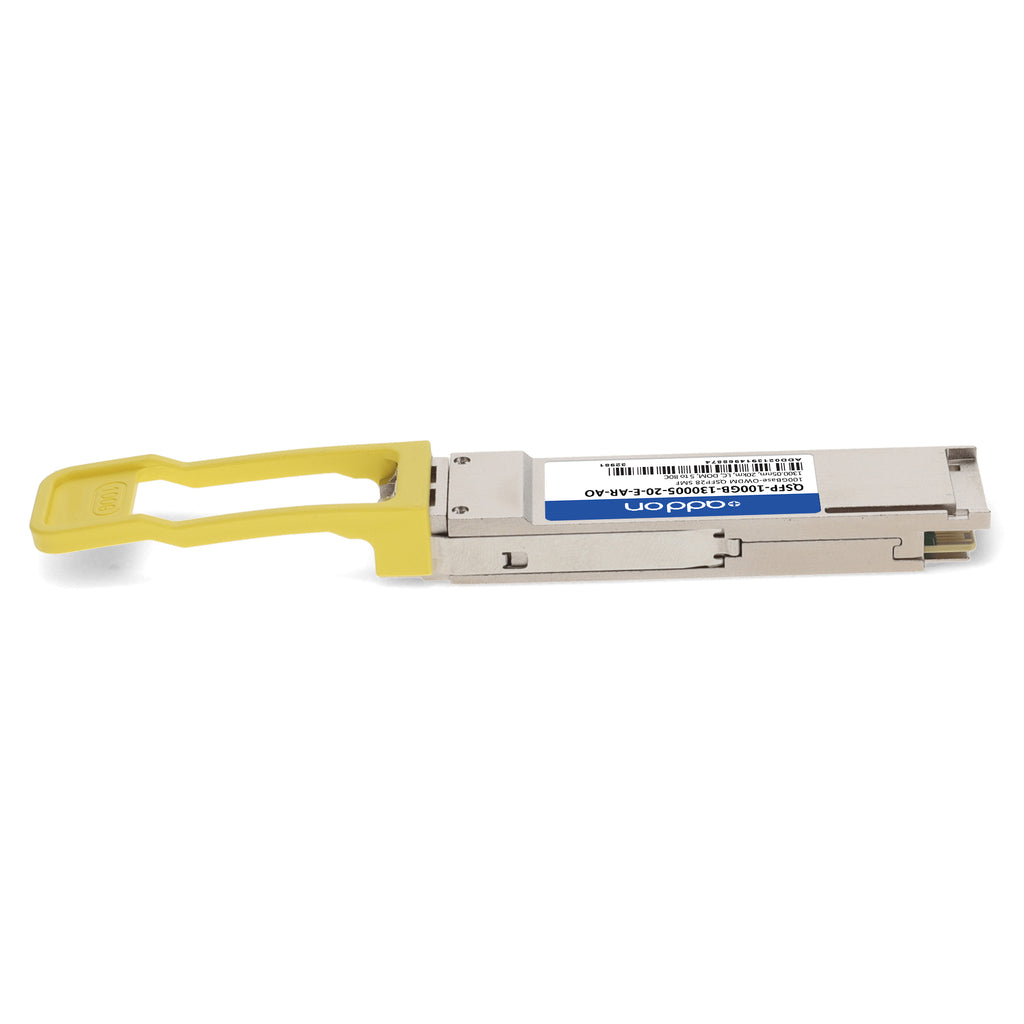

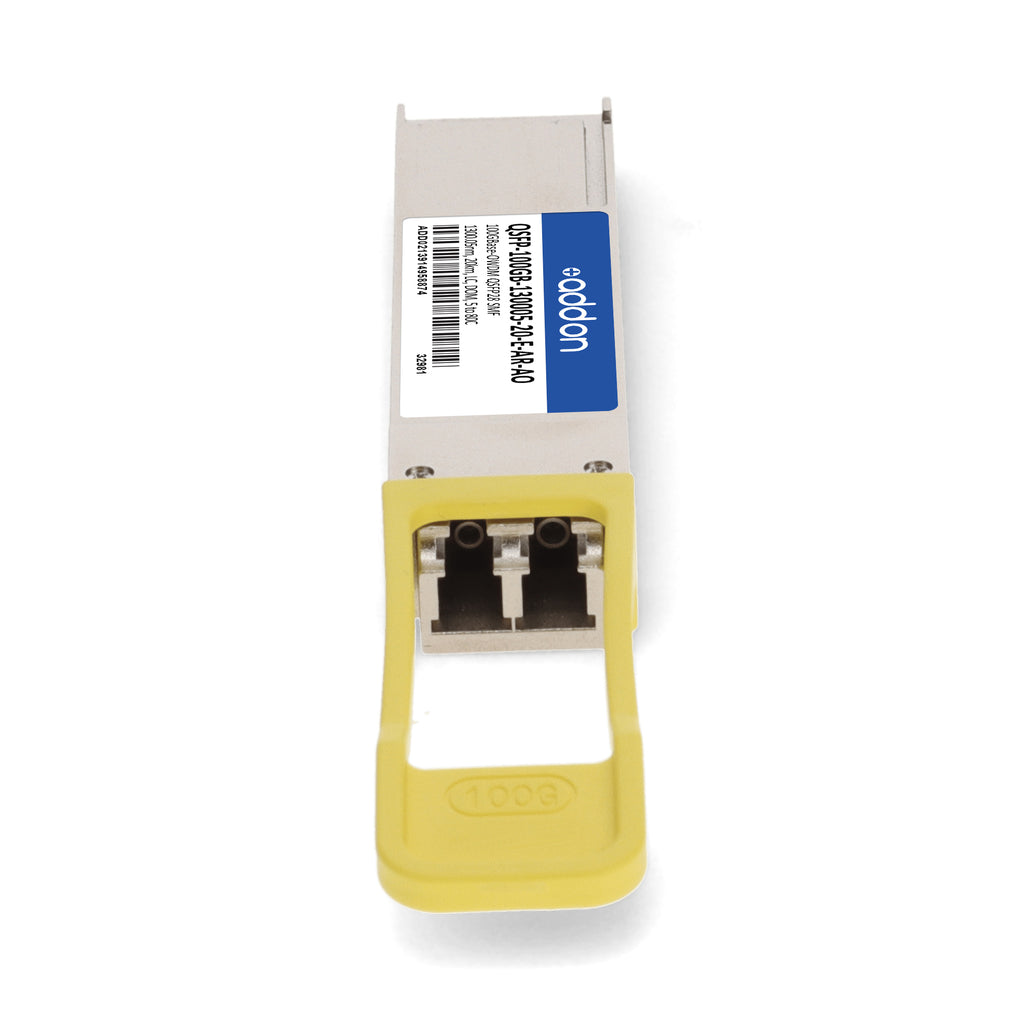

The AddOn Arista Networks® QSFP-100GB-130005-20-E-AR-AO is a TAA-compliant 100GBase-OWDM QSFP28 optical transceiver designed for high-performance 100G Ethernet applications over single-mode fiber (SMF) up to 20km. Operating at a wavelength of 1300.05nm and utilizing OWDM 8-channel technology, it delivers 106.25Gbps PAM4 throughput through duplex LC connectors. The transceiver is hot-pluggable, features a high-sensitivity APD receiver, and supports digital optical monitoring (DOM) for real-time diagnostics. It is fully compliant with QSFP28 MSA, IEEE 802.3bs, and 100G Lambda MSA standards. Each unit is uniquely serialized, programmed, and tested to guarantee identical performance and seamless interoperability with Arista Networks® systems.
| Parameter | Specification |
|---|---|
| Form Factor | QSFP28 |
| Data Rate | 106.25 Gbps (PAM4) |
| Wavelength | 1300.05 nm (OWDM Channel OW300, 8 wavelengths) |
| Transmission Distance | Up to 20 km over SMF |
| Connector | Duplex LC |
| Optical Modulation | PAM4 |
| Compliance | QSFP28 MSA, IEEE 802.3bs, 100G Lambda MSA |
| Digital Diagnostics (DOM) | Supported |
| Receiver Type | High Sensitivity APD |
| Operating Temperature | -5°C to +80°C |
| Power Supply Voltage | +3.3 V |
| Power Consumption | 4.4 W (typical at 25°C) |
| Transmit Average Power | 0 to +3.4 dBm |
| OMA (Outer Optical Modulation Amplitude) | 3.0 to 6.4 dBm |
| Extinction Ratio | ≥ 5.0 dB |
| Receiver Sensitivity (OMAouter) | ≤ -11.6 dBm (stressed) |
| Average Receive Power | -15.7 to -3 dBm |
| Connector Interface | Duplex LC |
| Applications | 100G Ethernet, Access, Enterprise Networks |
| Compliance & Certifications | TAA Compliant, RoHS, Lead-Free |
| Warranty | Limited Lifetime Warranty |
