Description

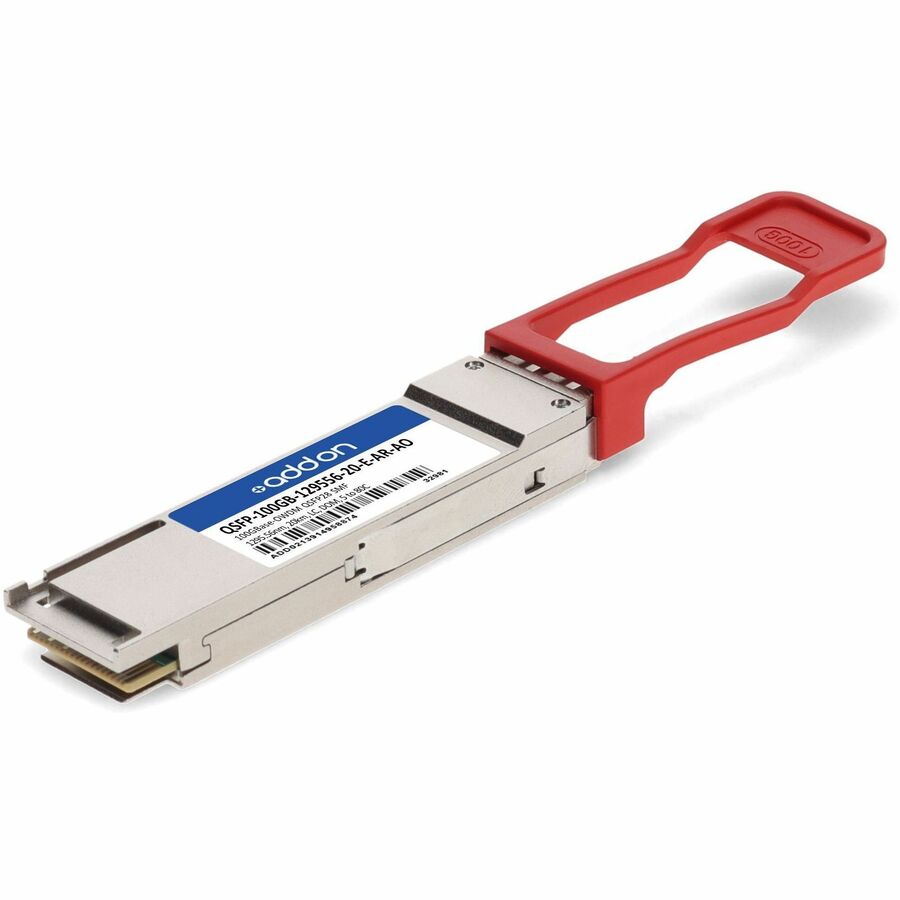

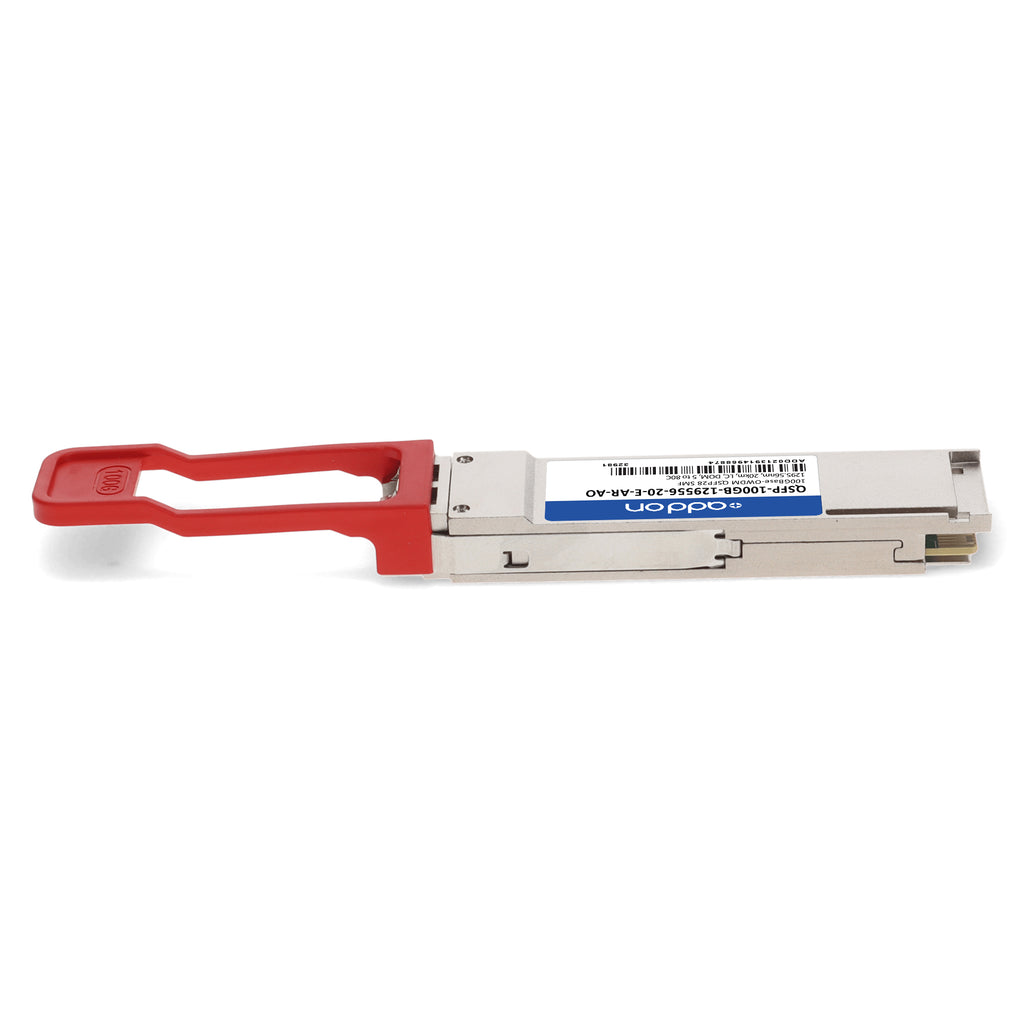

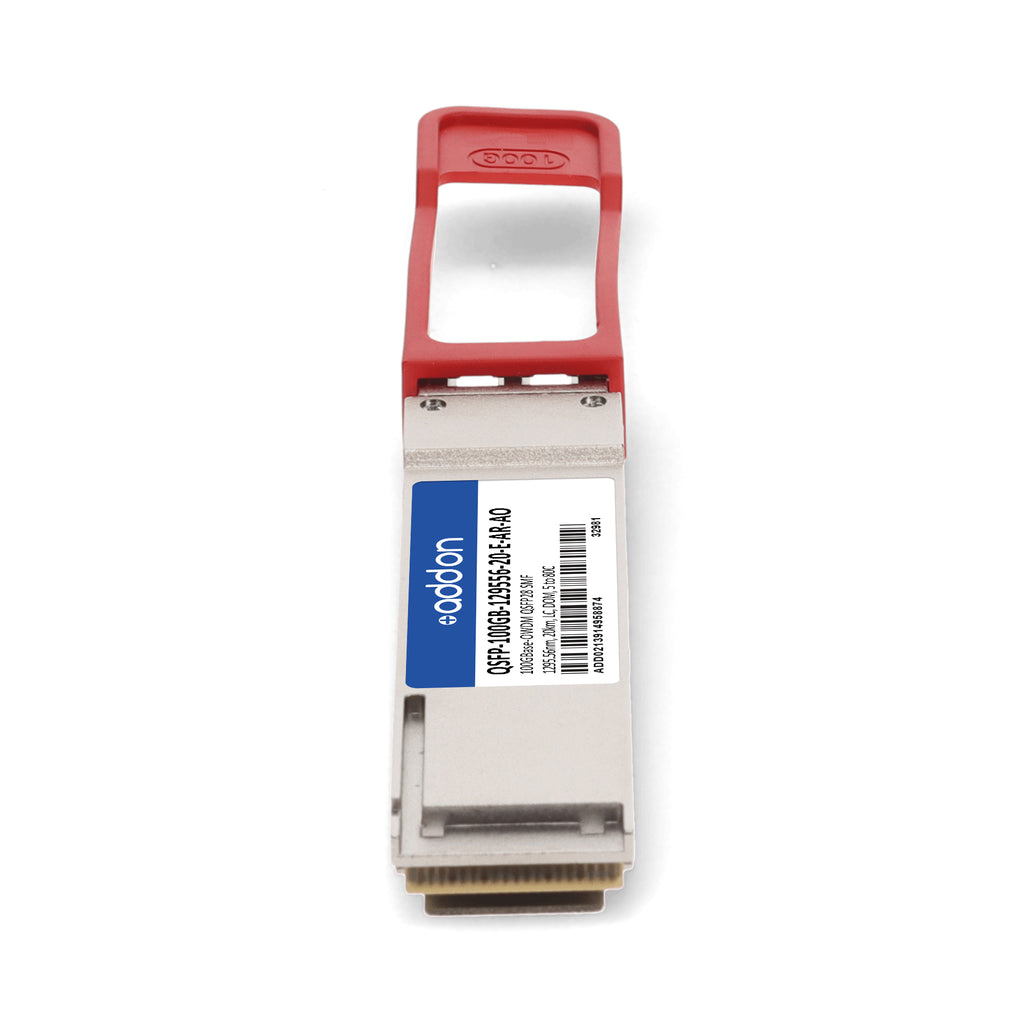

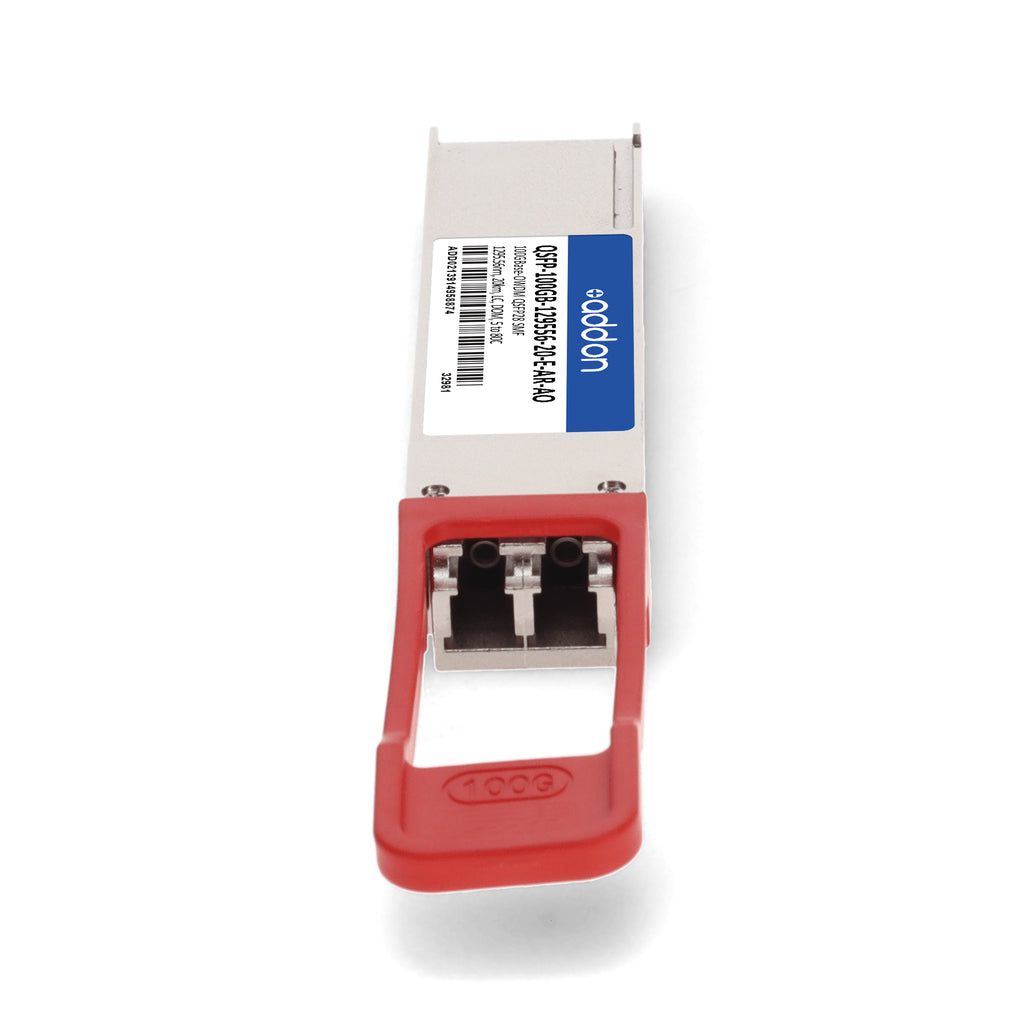

The AddOn Arista Networks® QSFP-100GB-129556-20-E-AR-AO is a 100GBase-OWDM QSFP28 optical transceiver designed for high-performance data center, access, and enterprise networking environments. Operating over a single-mode fiber (SMF) connection with a duplex LC connector, it delivers reliable 100G Ethernet throughput up to 20km using a 1295.56nm wavelength.
This hot-pluggable transceiver supports 106.25Gb/s PAM4 signaling and complies with QSFP28 MSA, IEEE 802.3bs, and 100G Lambda MSA standards. It features a high-sensitivity APD receiver and Digital Optical Monitoring (DOM) for real-time diagnostics. Engineered for seamless interoperability, it is 100% compatible with the equivalent Arista Networks® module and is Trade Agreements Act (TAA) compliant. Built to the highest quality standards, each unit is rigorously tested, serialized, and backed by AddOn’s limited lifetime warranty.
| Parameter | Specification |
|---|---|
| Form Factor | QSFP28 |
| Data Rate | 106.25 Gb/s (PAM4) |
| Application | 100GBase Ethernet, Access, Enterprise |
| Wavelength | 1295.56nm (O-Band) |
| Optical Technology | OWDM, 8 Wavelengths |
| Reach / Distance | Up to 20km over SMF |
| Connector Type | Duplex LC |
| Transmission Media | Single-Mode Fiber (SMF) |
| Optical Modulation | PAM4 |
| Launch Power (Avg.) | 0 to 3.4 dBm |
| Extinction Ratio | ≥ 5.0 dB |
| Receiver Sensitivity (OMAouter) | ≤ -11.6 dBm |
| Power Supply Voltage | +3.3V |
| Power Consumption | 4.4W (typ.) |
| Operating Temperature | -5°C to +80°C |
| Digital Diagnostic Monitoring (DOM) | Supported |
| Compliance | QSFP28 MSA, IEEE 802.3bs, 100G Lambda MSA, TAA, RoHS |
| Hot-Pluggable | Yes |
| Warranty | Limited Lifetime Warranty |
