Description

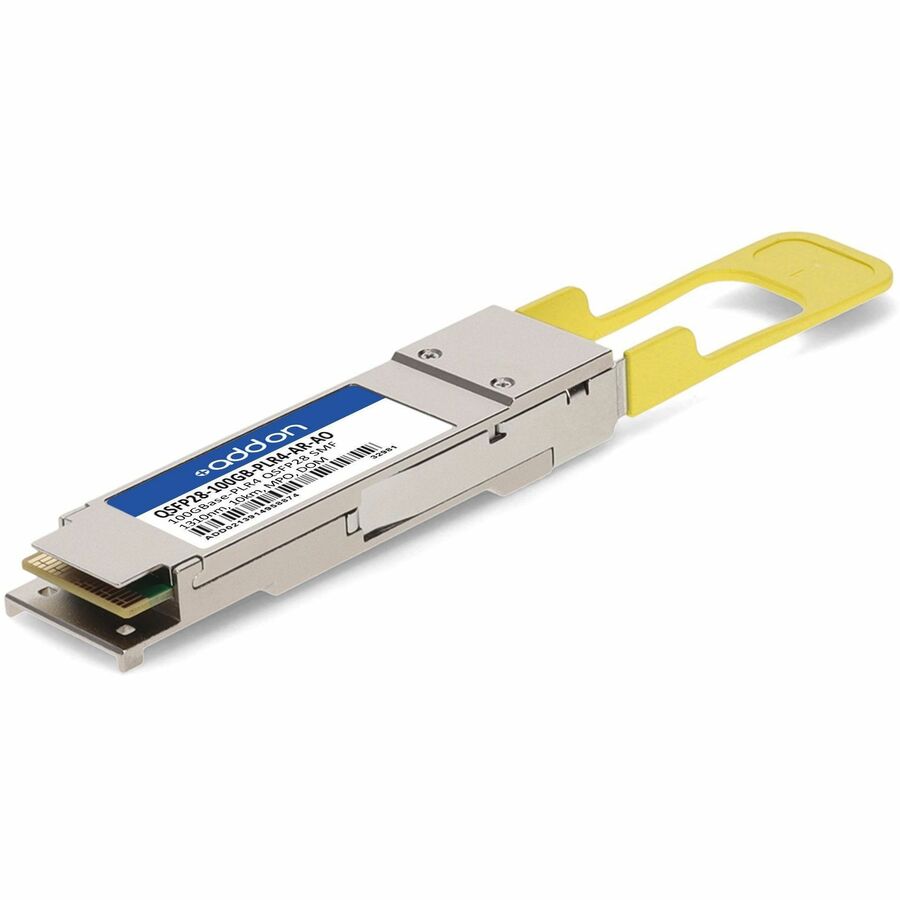

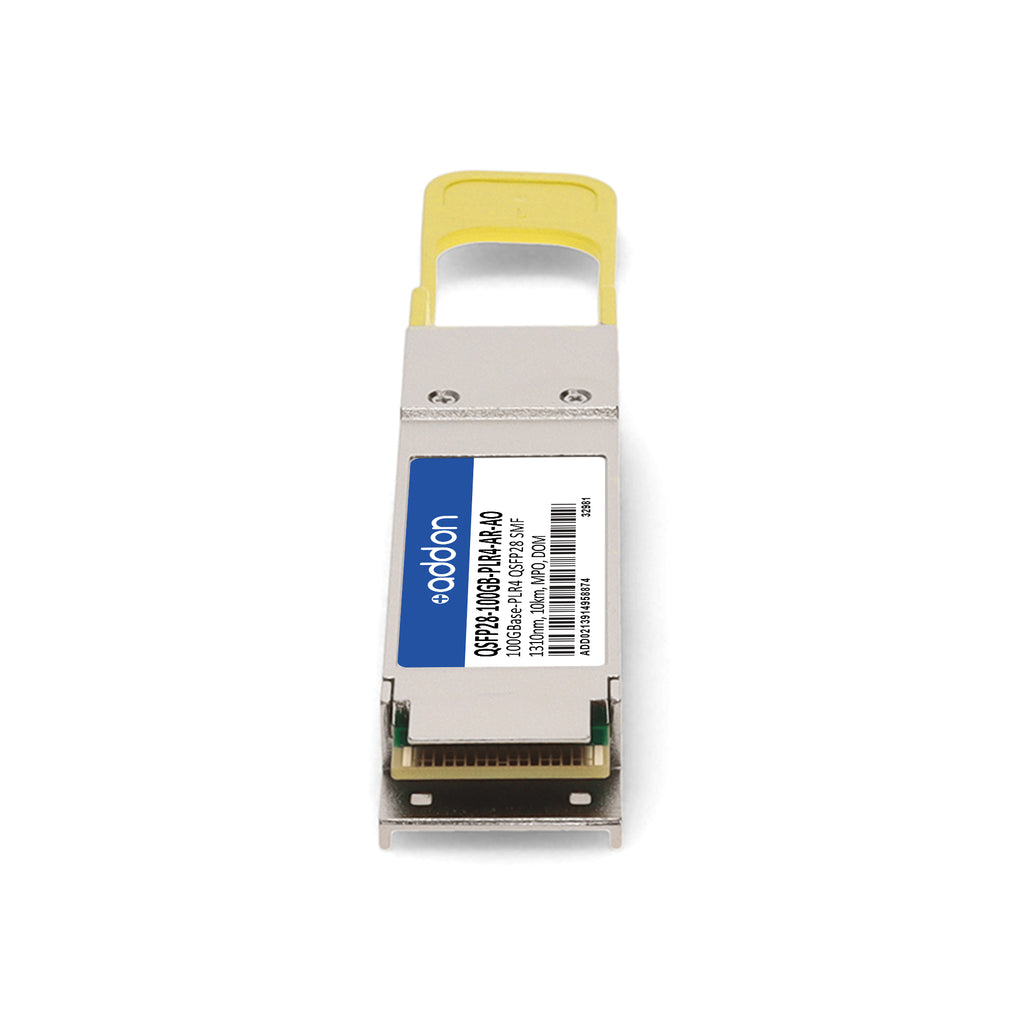

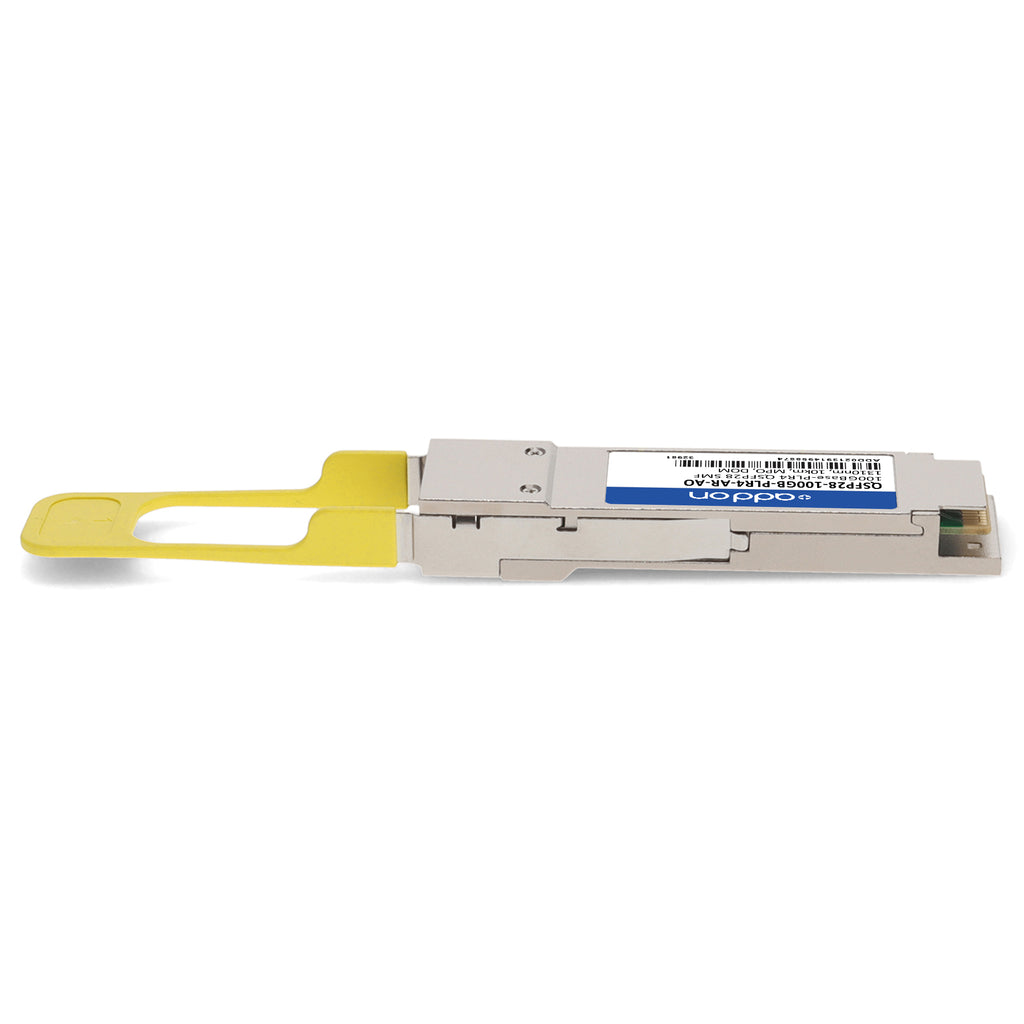

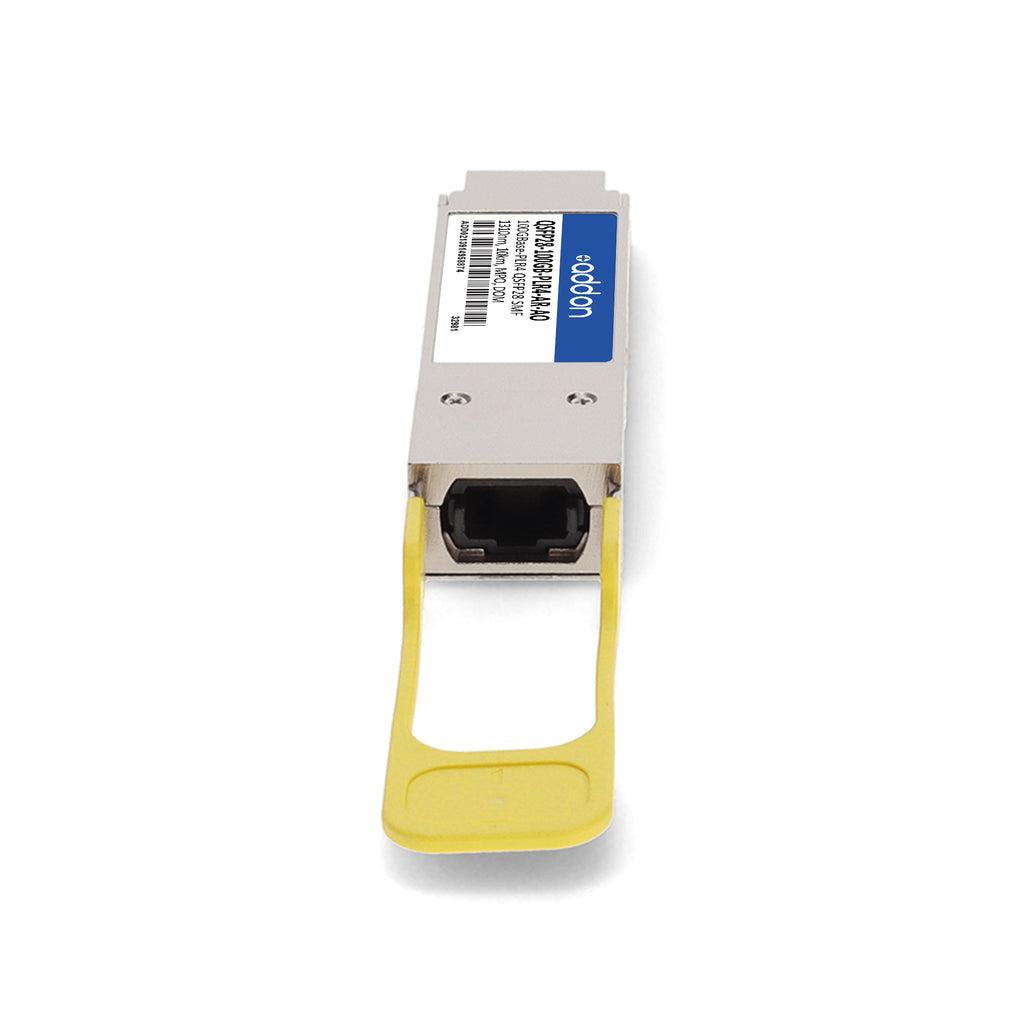

The AddOn Arista Networks® Compatible QSFP28-100GB-PLR4-AR-AO is a high-performance 100GBase-PLR4 optical transceiver designed for data center, enterprise, and access network applications. It delivers reliable 100Gbps throughput over distances up to 10km using single-mode fiber (SMF) and an MPO connector at a 1310nm wavelength.
Engineered to meet or exceed OEM standards, this hot-swappable, easy-to-install transceiver is 100% compatible with Arista Networks® systems and includes Digital Optical Monitoring (DOM) for real-time diagnostics of key operating parameters. Fully compliant with SFF-8665 and TAA regulations, it offers robust ESD protection, low EMI performance, and a compact, hot-pluggable QSFP28 form factor. Each unit is programmed, serialized, and rigorously tested to ensure seamless integration and optimal network performance, backed by AddOn’s limited lifetime warranty.
| Specification | Details |
|---|---|
| SKU | QSFP28-100GB-PLR4-AR-AO |
| Data Rate | 100 Gbps (4x25.78125 Gbps) |
| Form Factor | QSFP28 |
| Application | 100GBase Ethernet |
| Cable Type | Single-Mode Fiber (SMF) |
| Wavelength | 1310nm |
| Reach / Distance | Up to 10 km |
| Connector | MPO |
| Compliance | SFF-8665, TAA, RoHS |
| DOM Support | Yes |
| Hot Swappable | Yes |
| Operating Temperature | 0°C to 70°C (Commercial) |
| Power Supply Voltage | 3.135V – 3.465V |
| Power Dissipation | 3.5 W (typ.) |
| Transmitter Launch Power (per lane) | -4 dBm to +2 dBm |
| Receiver Sensitivity | ≤ -12.0 dBm |
| Optical Extinction Ratio | ≥ 3.5 dB |
| Side Mode Suppression Ratio (SMSR) | ≥ 30 dB |
| Optical Return Loss Tolerance | ≥ 12 dB |
| Damage Threshold | ≤ 3 dBm |
| Relative Humidity | 5% – 95% (non-condensing) |
| Warranty | Limited Lifetime Warranty |
