Description

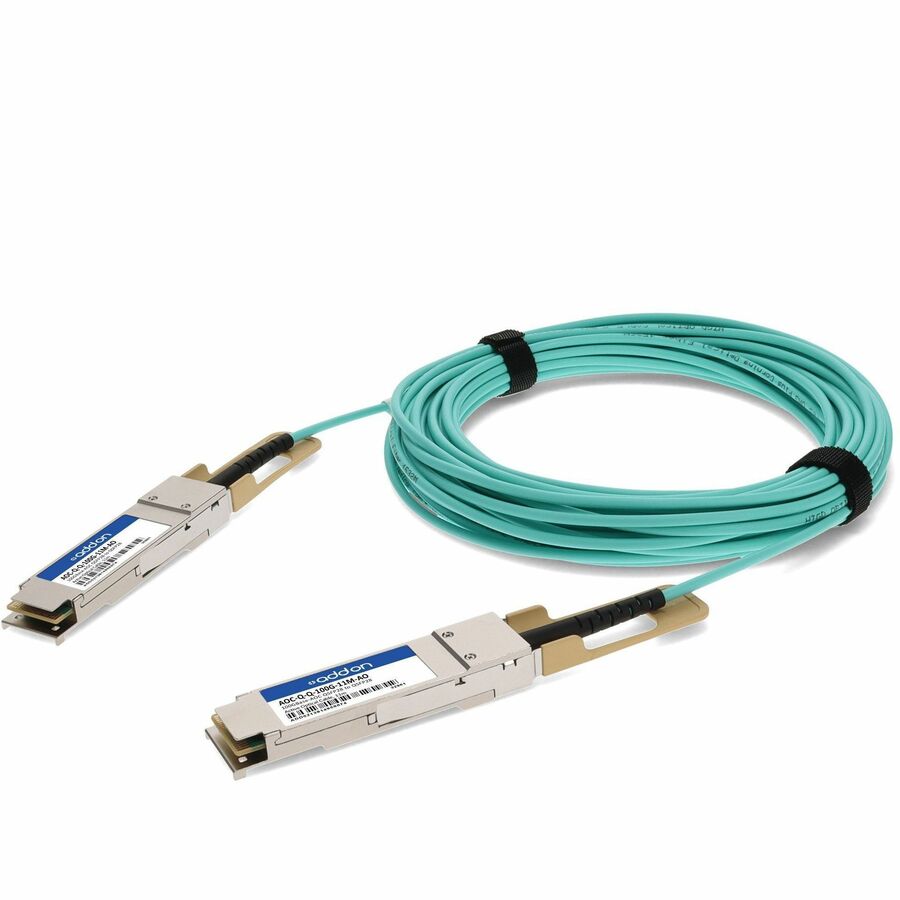

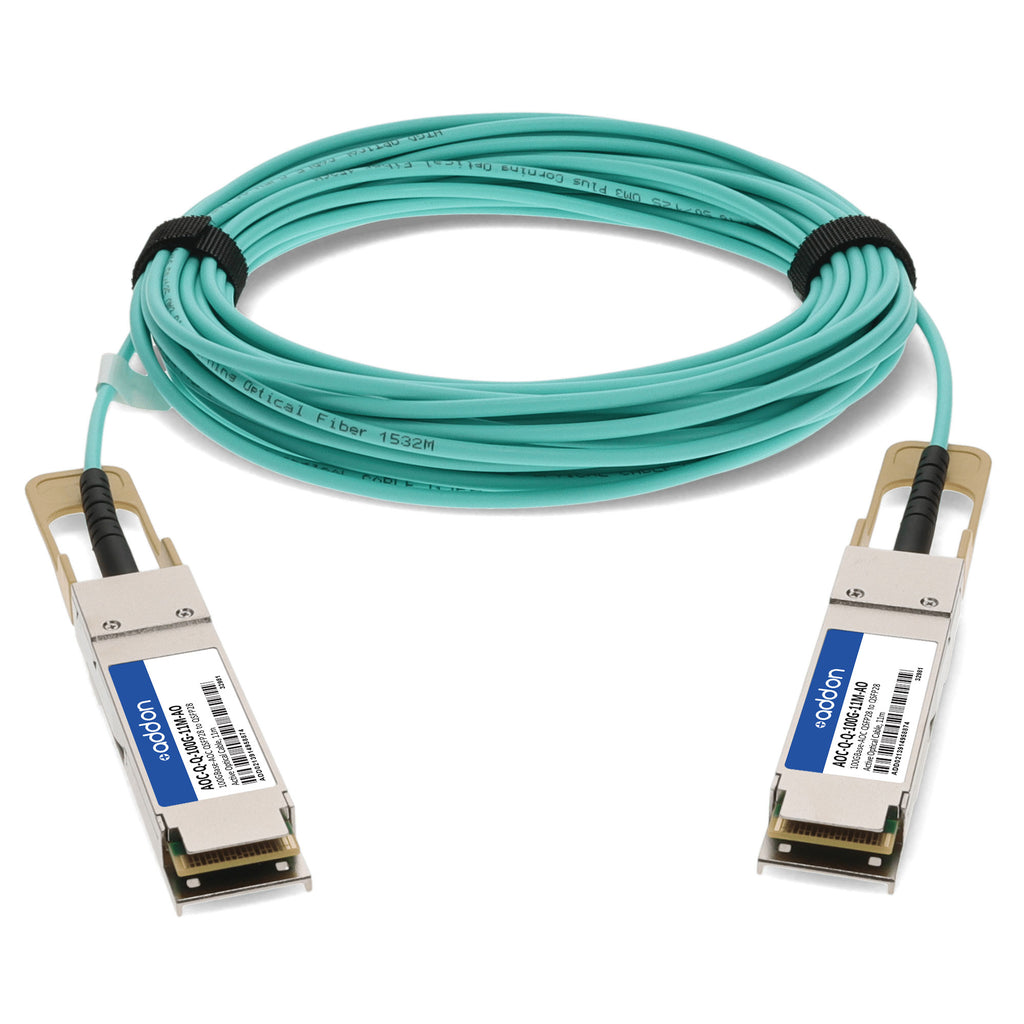

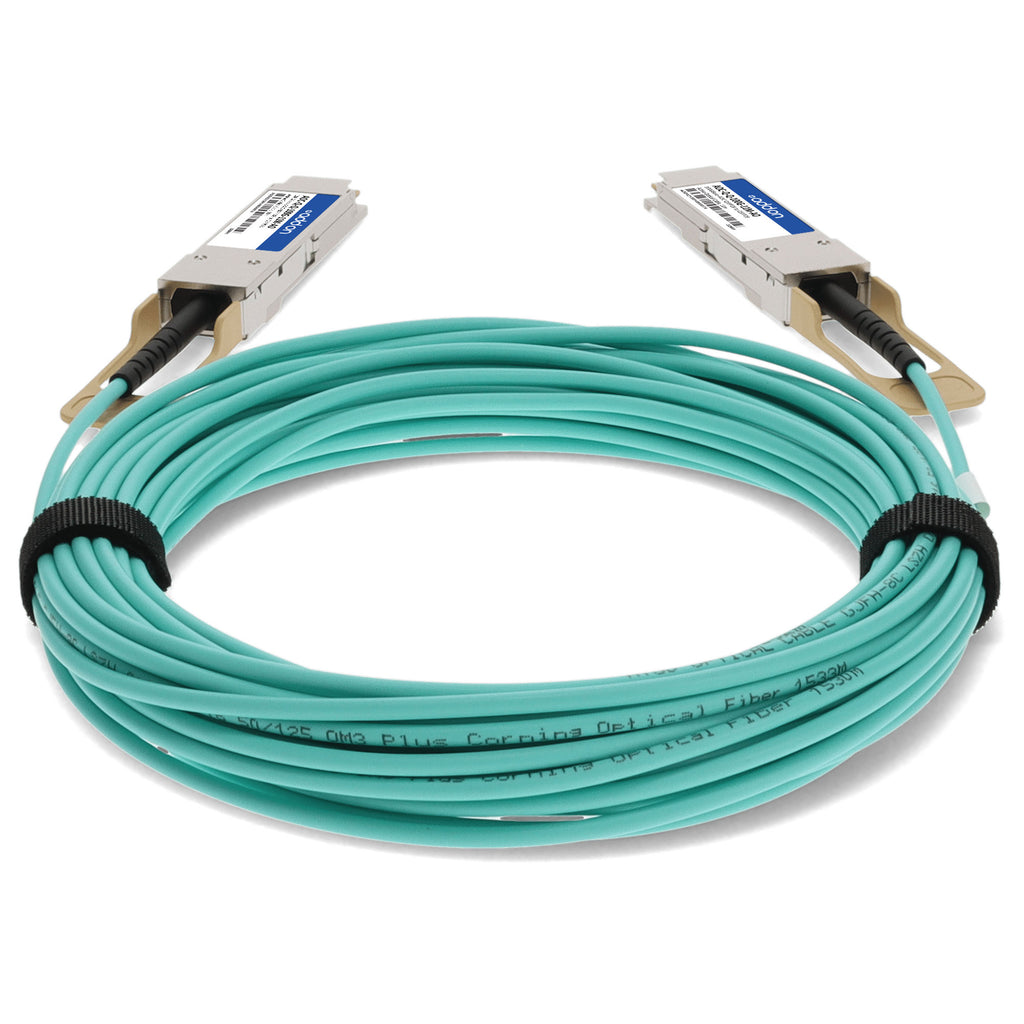

This AddOn Arista Networks® AOC-Q-Q-100G-11M compatible active optical cable delivers 100GBase-AOC performance with a maximum reach of 11 meters over active fiber. Designed with four independent full-duplex channels, it supports an aggregate bit rate of 103.1Gbps with a 4x25G electrical interface (OIF CEI-28G-VSR). Operating at 850nm, the cable is programmed, uniquely serialized, and rigorously tested for 100% functionality and compliance. Built to meet MSA (Multi-Source Agreement) standards and TAA (Trade Agreements Act) requirements, it is ideal for high-speed data center, enterprise, and InfiniBand EDR environments. With a low power consumption of just 2.5W per terminal and a single 3.3V power supply, this AOC provides a cost-effective, reliable interconnect solution with AddOn’s industry-leading quality assurance and limited lifetime warranty.
| Specification | Details |
|---|---|
| Manufacturer | AddOn |
| Part Number | AOC-Q-Q-100G-11M-AO |
| Compatibility | Arista Networks® |
| Product Type | Active Optical Cable (AOC) |
| Data Rate | 100GBase-AOC (103.1Gbps aggregate) |
| Form Factor | QSFP28 to QSFP28 |
| Wavelength | 850nm |
| Maximum Reach | 11 meters |
| Channels | 4 independent full-duplex channels |
| Electrical Interface | 4x25G OIF CEI-28G-VSR |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 0% to 85% (non-condensing) |
| Power Supply Voltage | 3.135V – 3.465V |
| Power Consumption | Max. 2.5W per terminal |
| Applications | 100GBase Ethernet, InfiniBand EDR |
| Compliance | QSFP28 MSA, TAA Compliant, RoHS Compliant, Lead-Free |
| Warranty | Limited Lifetime Warranty |
