Description

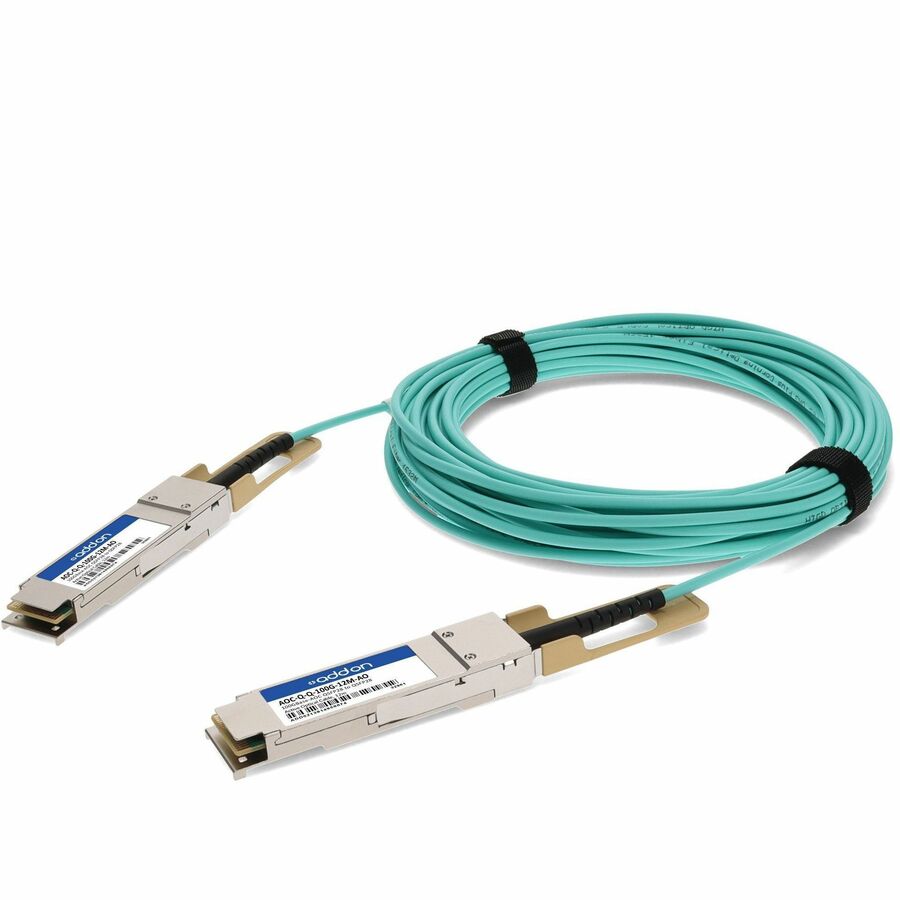

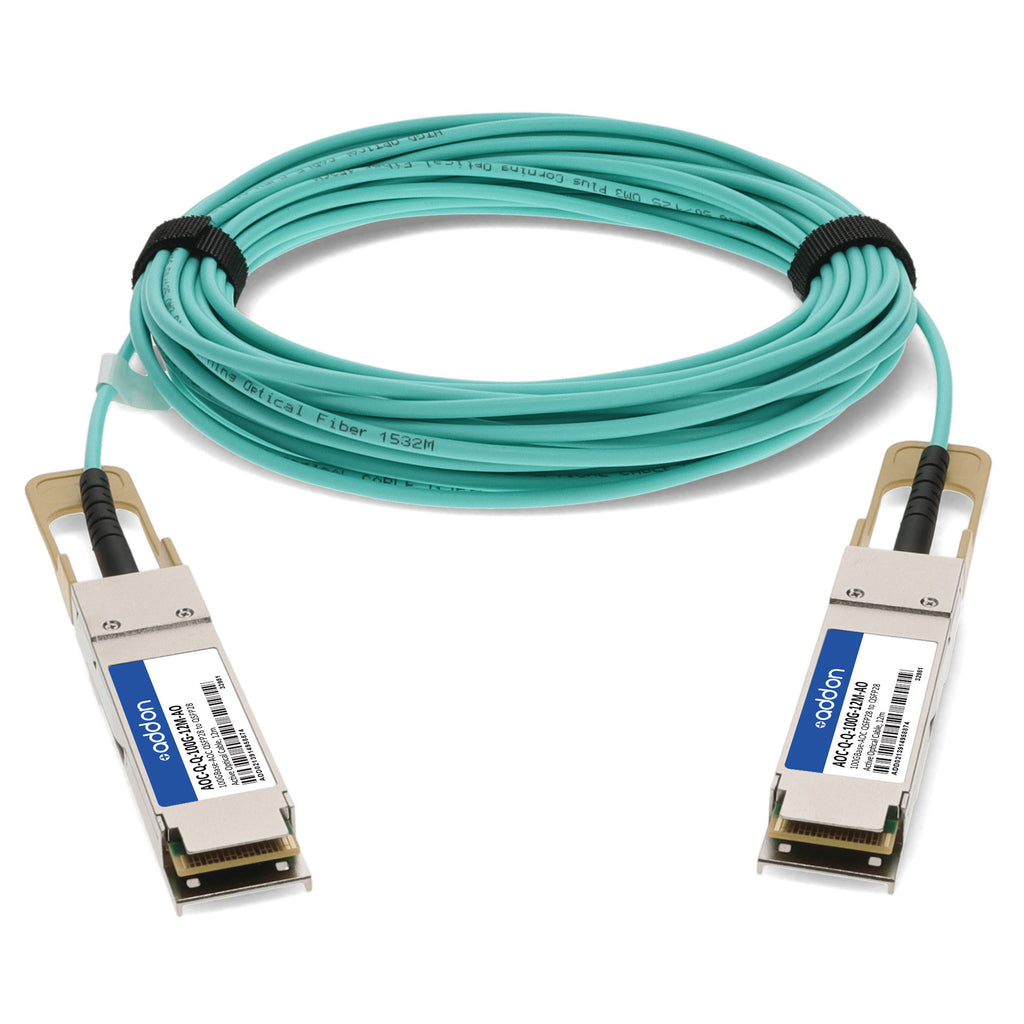

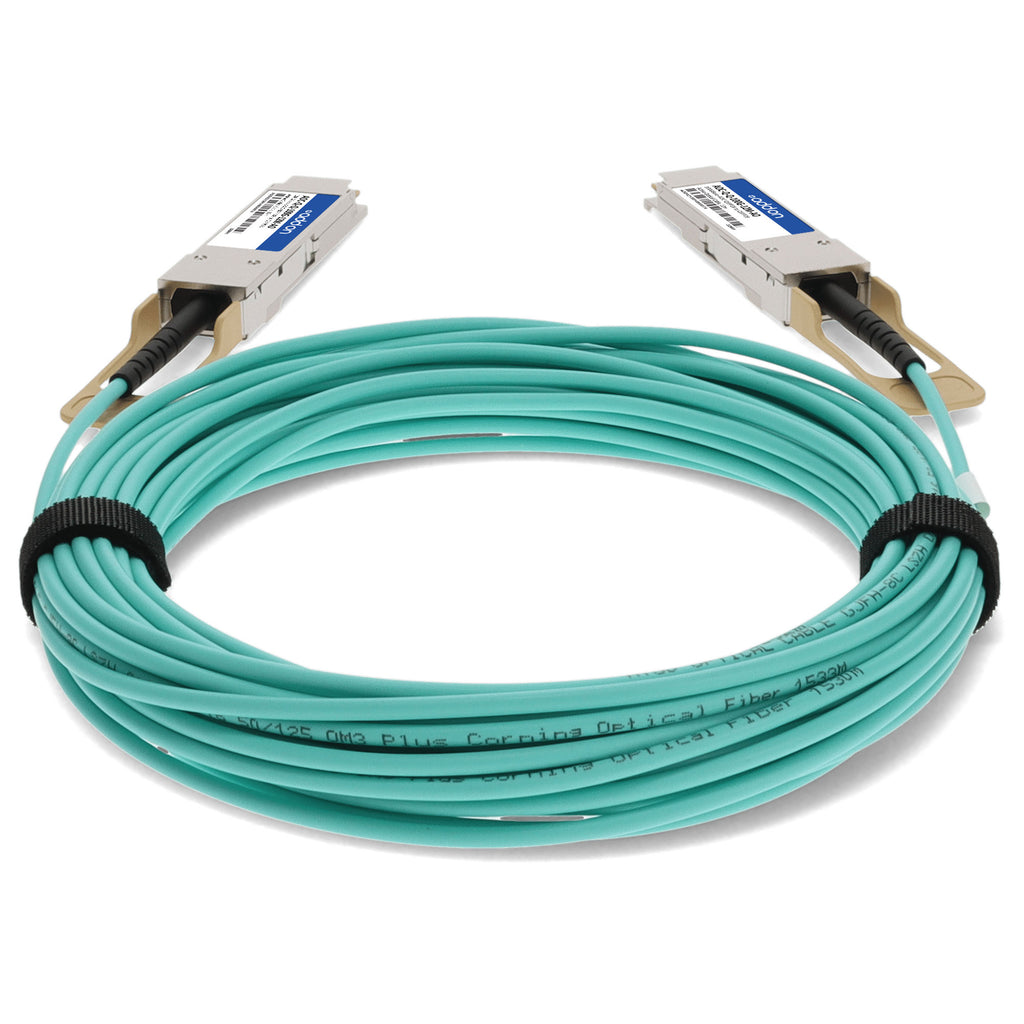

The AddOn Arista Networks® AOC-Q-Q-100G-12M is a 100GBase-AOC QSFP28 to QSFP28 active optical cable designed to deliver high-speed, low-latency connectivity over active fiber with a maximum reach of 12 meters. Supporting an aggregate data rate of 103.1 Gbps across four independent full-duplex channels, this cable is ideal for data center interconnects, InfiniBand EDR, and 100G Ethernet applications.
Built to comply with MSA (Multi-Source Agreement) and TAA (Trade Agreements Act) standards, it features a 4×25G electrical interface (OIF CEI-28G-VSR), operates with a single 3.3V power supply, and consumes a maximum of 2.5W per terminal, ensuring energy efficiency. Each unit is programmed, uniquely serialized, and fully tested for data-traffic and application compatibility. Backed by AddOn’s limited lifetime warranty, this active optical cable ensures reliability, seamless interoperability, and cost-effective performance.
| Specification | Details |
|---|---|
| Brand | AddOn |
| SKU | AOC-Q-Q-100G-12M-AO |
| Compatibility | Arista Networks® |
| Form Factor | QSFP28 to QSFP28 |
| Data Rate | 103.1 Gbps aggregate |
| Channels | 4 independent full-duplex |
| Per-Lane Data Rate | 25.78125 Gbps |
| Wavelength | 850nm |
| Cable Type | Active Optical Cable (AOC) |
| Maximum Reach | 12 meters |
| Interface Standard | OIF CEI-28G-VSR |
| Applications | InfiniBand EDR, 100GBase Ethernet |
| Power Supply Voltage | 3.135V – 3.465V |
| Power Consumption | ≤ 2.5 W per terminal |
| Supply Current | 757 mA |
| Operating Case Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 0% – 85% (non-condensing) |
| Compliance | QSFP28 MSA, TAA, RoHS, Lead-Free |
| Warranty | Limited Lifetime Warranty |
