Description

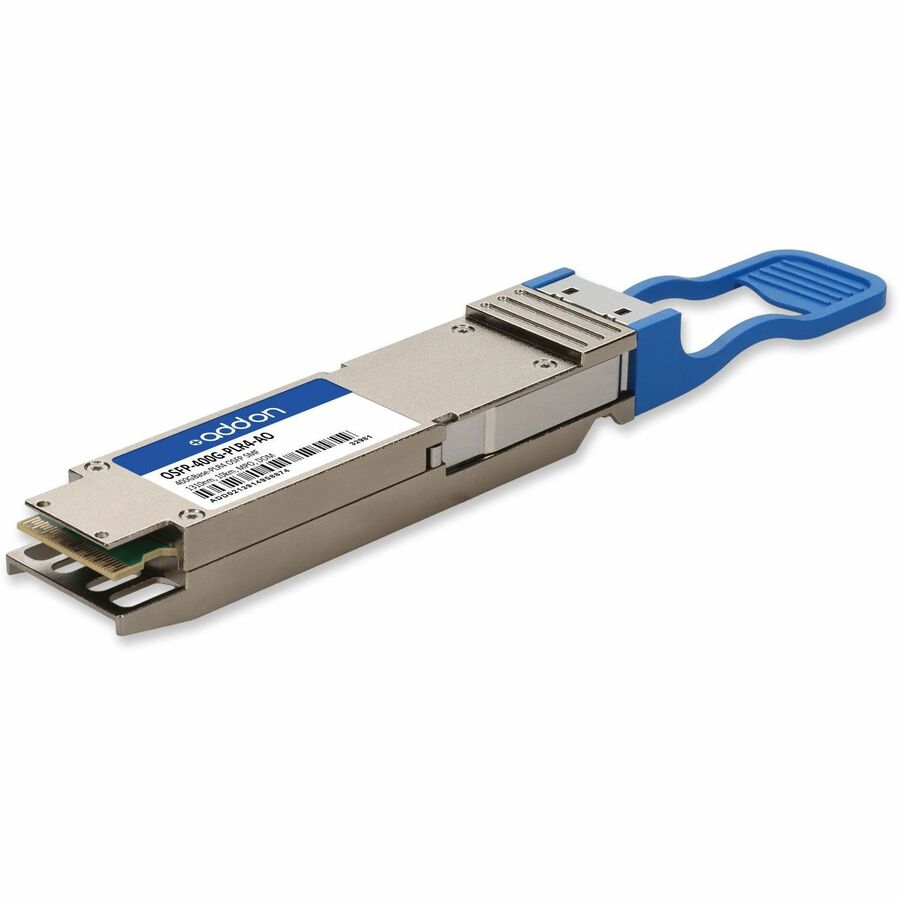

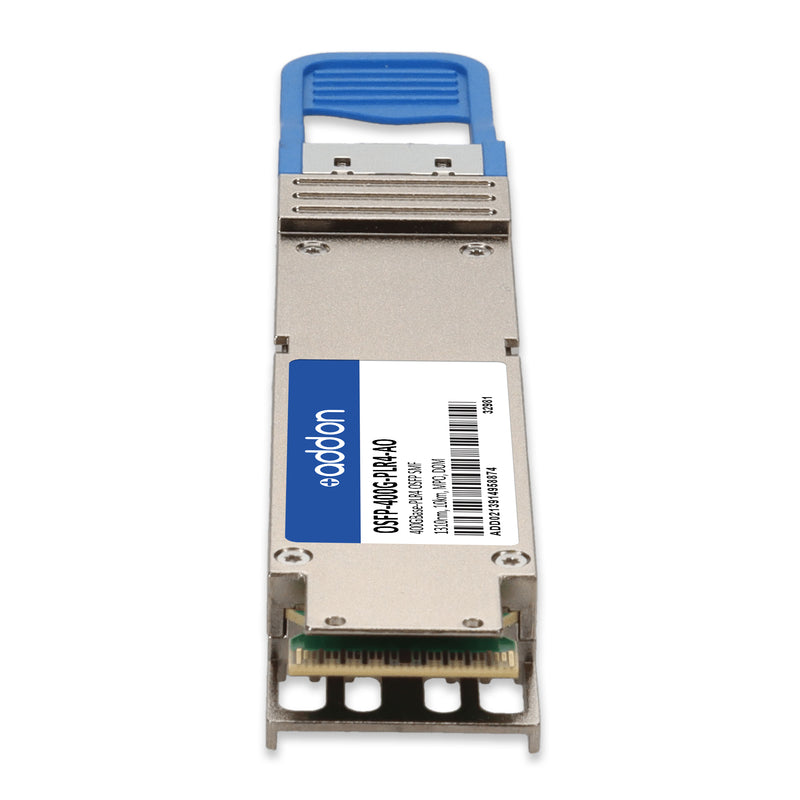

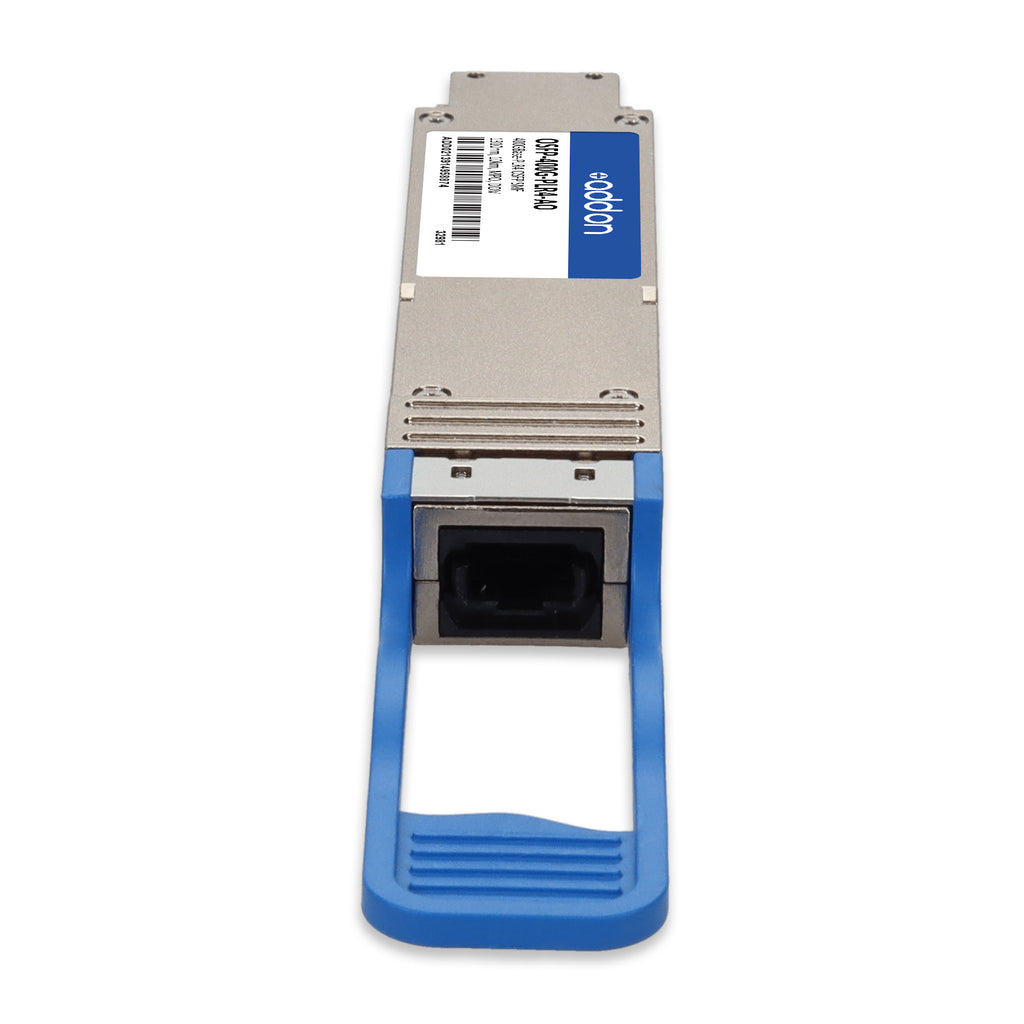

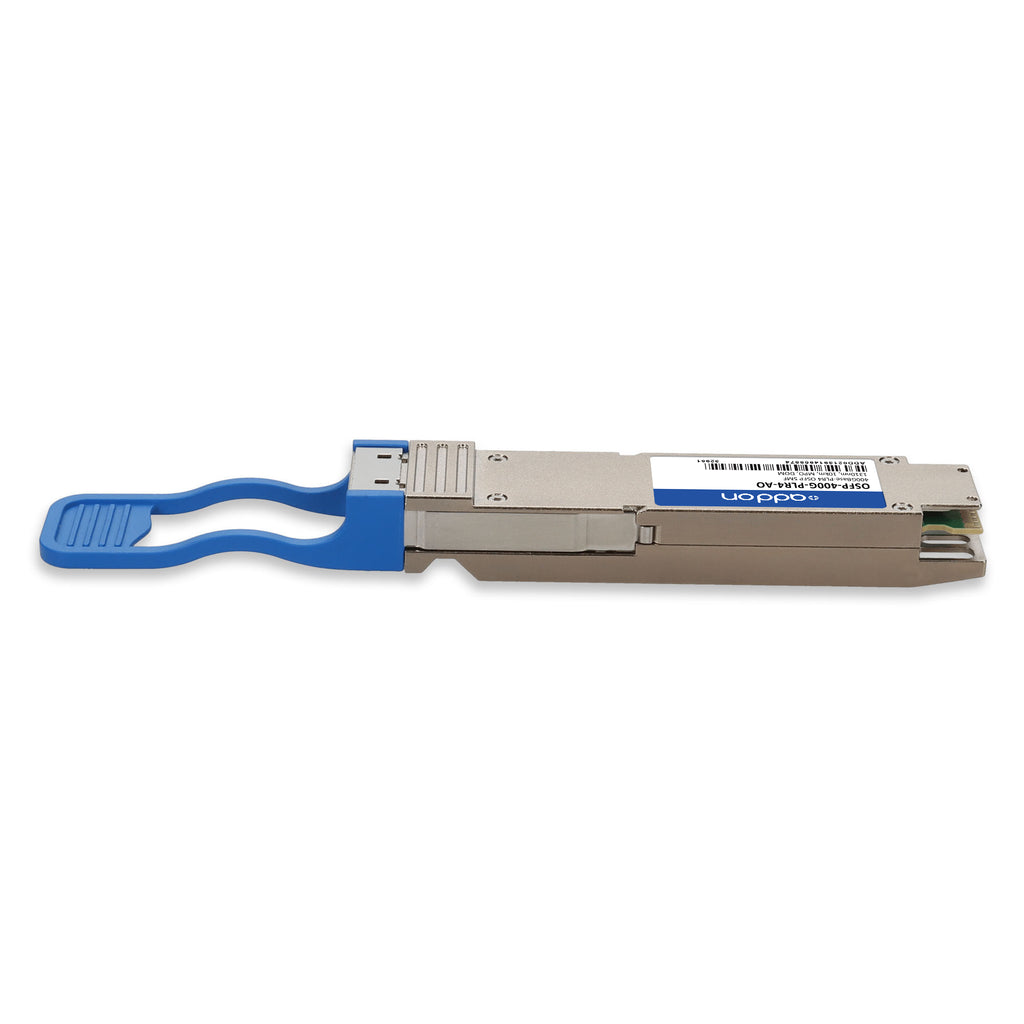

The AddOn Arista Networks® OSFP-400G-PLR4-AO is a high-performance, TAA-compliant 400GBase-PLR4 OSFP transceiver designed for ultra-high-speed data center, cloud, and enterprise networking applications. Delivering up to 400Gbps throughput over single-mode fiber (SMF) at distances of up to 10km, this transceiver operates on a 1310nm wavelength and uses an MPO-12 connector for efficient, high-density connectivity.
Engineered to meet or exceed OEM specifications, this transceiver is fully compliant with OSFP MSA and IEEE 802.3bs 400GAUI-8 standards. It features an 8×53.125Gbps PAM4 electrical interface and supports CMIS 4.0 or later for seamless interoperability and advanced management. Hot-pluggable and built with a low-EMI metal housing, it offers robust performance across a commercial temperature range of 0°C to 70°C.
Each unit is programmed, uniquely serialized, and extensively tested for data traffic and application compatibility, ensuring identical initialization and performance to the original Arista Networks® modules. With support for Digital Optical Monitoring (DOM), network operators can access real-time operating data for enhanced visibility and diagnostics. Backed by AddOn’s limited lifetime warranty, the OSFP-400G-PLR4-AO is the reliable, cost-effective choice for next-generation 400G optical interconnects.
| Specification | Description |
|---|---|
| Compatible OEM | Arista Networks® |
| Form Factor | OSFP |
| Data Rate | Up to 400Gbps |
| Transmission Distance | Up to 10km |
| Wavelength | 1310nm |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | MPO-12 |
| Electrical Interface | 8×53.125Gbps PAM4 |
| Standards Compliance | OSFP MSA, IEEE 802.3bs 400GAUI-8 |
| Management Interface | CMIS 4.0 or later |
| DOM Support | Yes |
| Operating Temperature | 0°C to 70°C |
| Power Consumption | ≤ 10W |
| Power Supply Voltage | 3.135V – 3.465V |
| Average Launch Power (Per Lane) | -1.9 to +4.8 dBm |
| Receiver Sensitivity (OMA Per Lane) | Max. (-6.1 dBm, TDECQ-7.5) |
| Extinction Ratio | ≥ 3.5 dB |
| Hot Pluggable | Yes |
| Compliance | TAA Compliant, RoHS Compliant, Lead-Free |
| Warranty | Limited Lifetime Warranty |
