Description

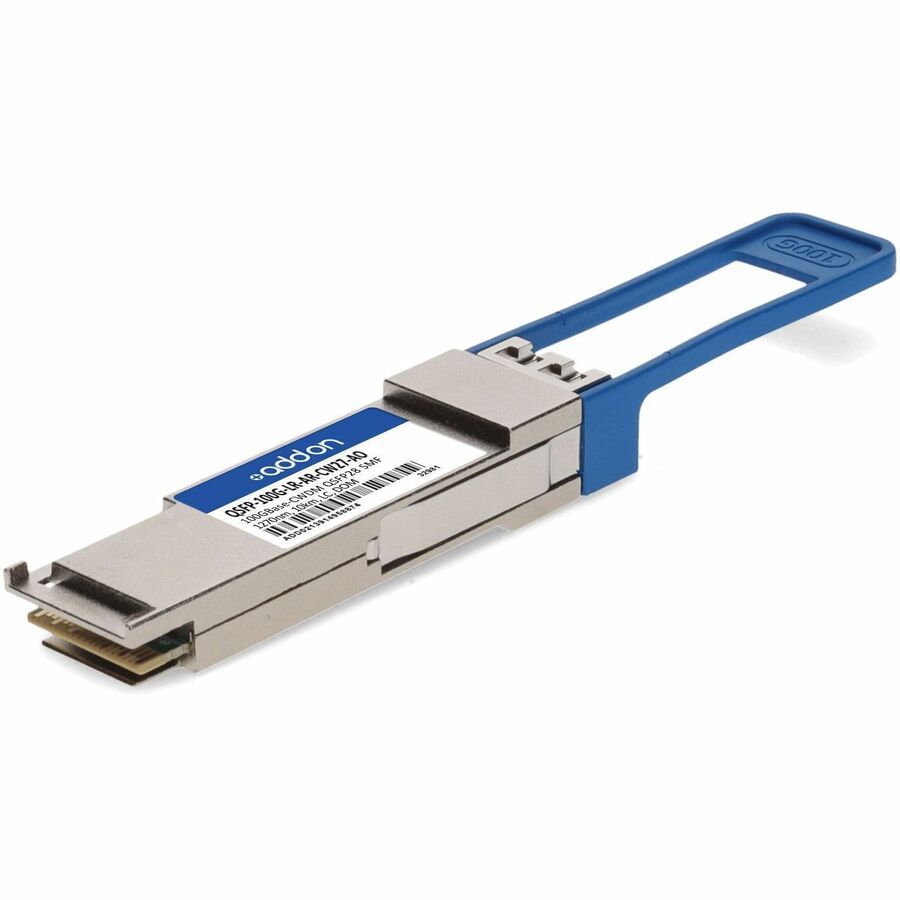

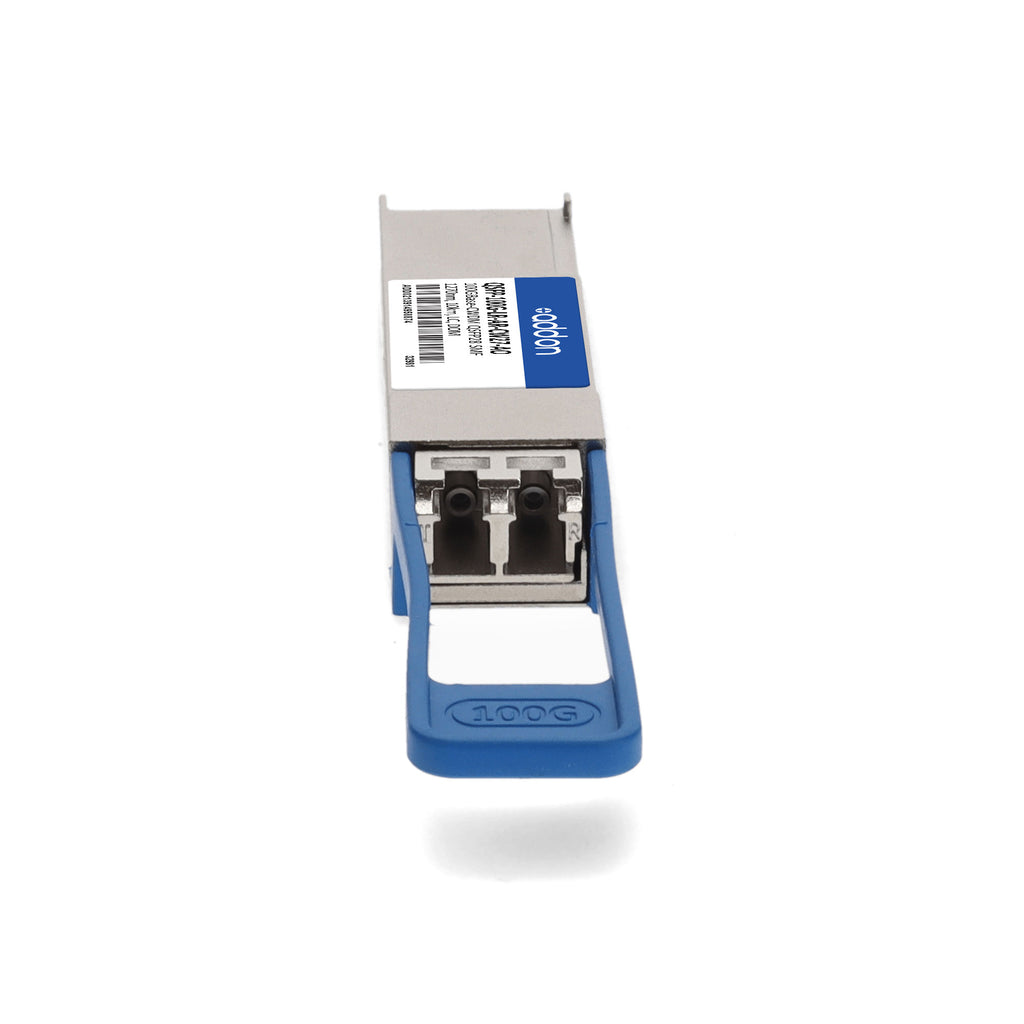

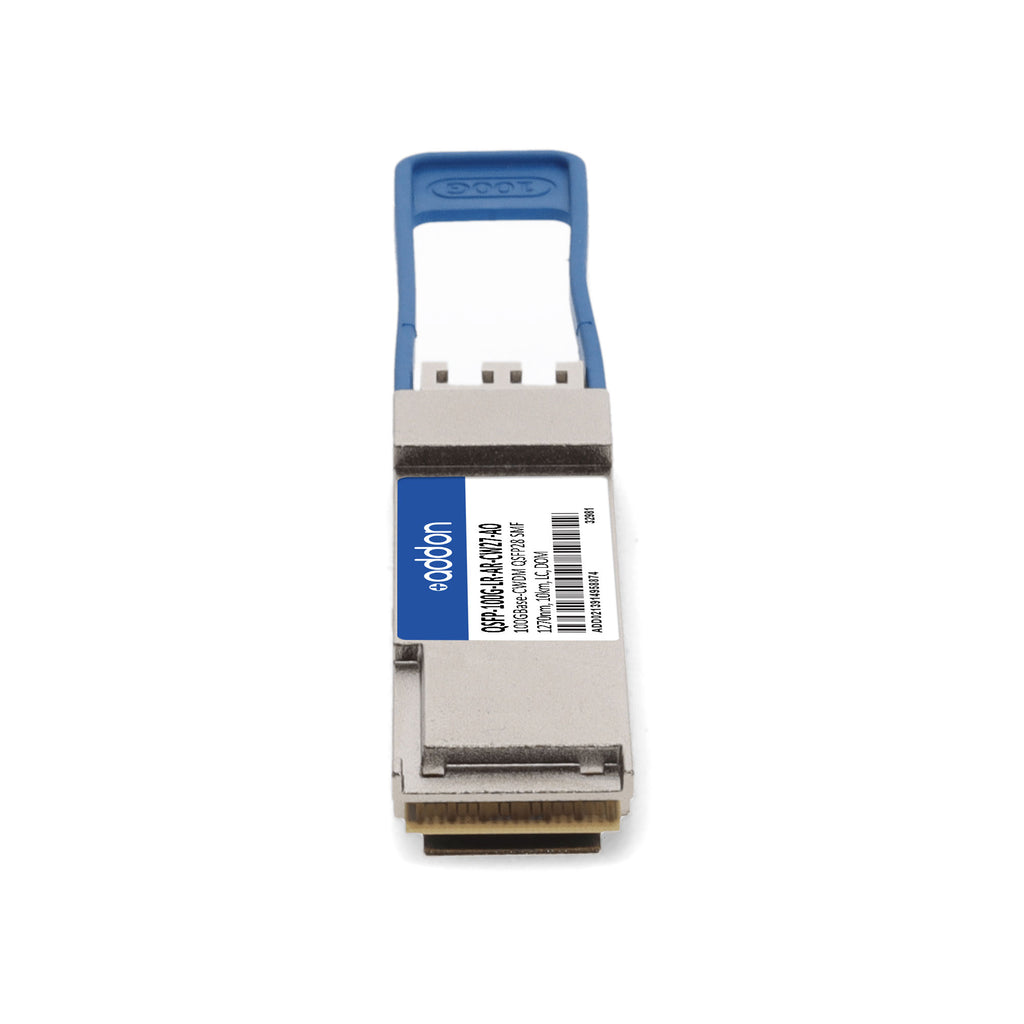

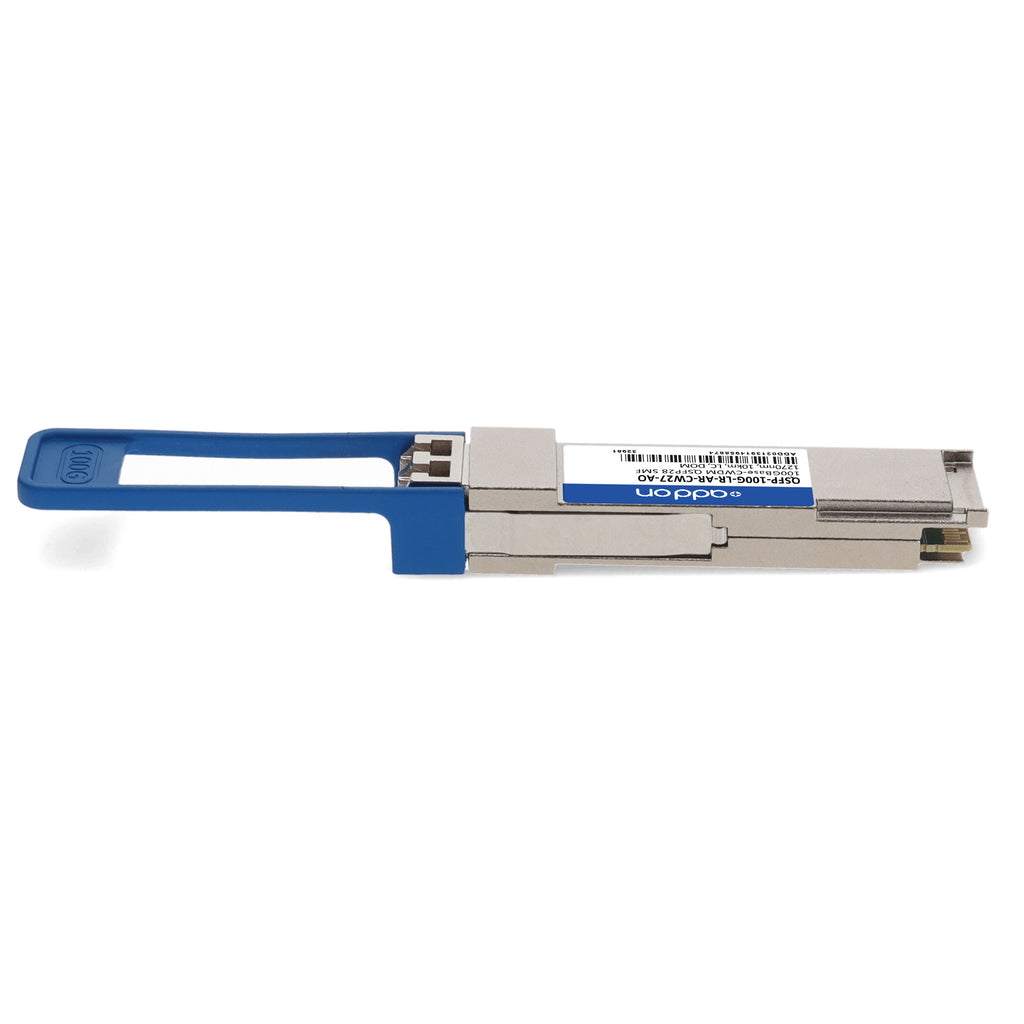

The AddOn Arista Networks® QSFP-100G-LR-AR-CW27 Compatible Transceiver is a high-performance, hot-swappable optical module designed for 100GBase-CWDM Ethernet applications. Operating over single-mode fiber (SMF), it delivers up to 10km reach using a 1270nm wavelength via an LC duplex connector. Compliant with QSFP28 and 100G Lambda MSA specifications, this transceiver supports a 4x25G electrical interface and PAM4 modulation for superior data transmission efficiency. Integrated Digital Optical Monitoring (DOM) provides real-time diagnostics for optimal network performance. Fully TAA and RoHS compliant, this module undergoes rigorous testing to guarantee seamless interoperability and identical performance to the original Arista Networks® part. It is ideal for high-speed access, metro, and enterprise networking environments, ensuring reliable, scalable connectivity with power dissipation under 4.5W and a standard operating temperature range of 0°C to 70°C.
| Specification | Details |
|---|---|
| Part Number | QSFP-100G-LR-AR-CW27-AO |
| Brand Compatibility | Arista Networks® |
| Form Factor | QSFP28 |
| Data Rate | 100 Gbps |
| Interface | 4x25G Electrical |
| Wavelength | 1270 nm (CWDM) |
| Transmission Distance | Up to 10 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | LC Duplex |
| Modulation Format | PAM4 |
| Optical Standards Compliance | 100G Lambda MSA 100G-LR, QSFP28 MSA |
| Digital Diagnostic Monitoring (DOM) | Supported |
| Power Dissipation | < 4.5 W |
| Power Supply Voltage | 3.3 V |
| Operating Temperature Range | 0°C to 70°C |
| Storage Temperature Range | -40°C to 85°C |
| Relative Humidity | 5% – 85% |
| TAA Compliance | Yes |
| RoHS Compliance | Yes |
| Applications | 100GBase Ethernet over CWDM, Access, Metro, Enterprise |
| Warranty | Limited Lifetime Warranty |
