Description

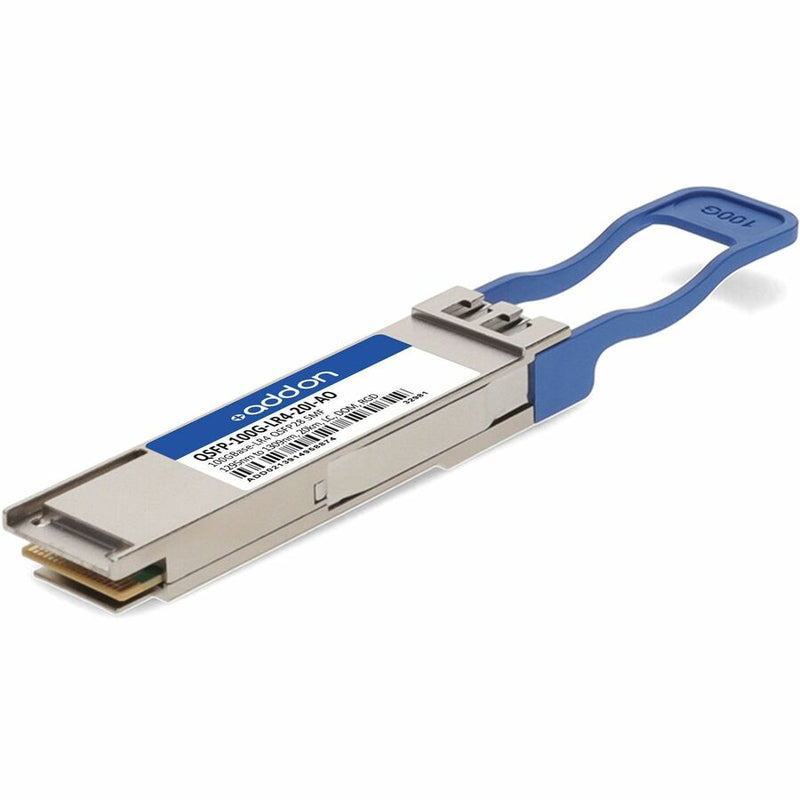

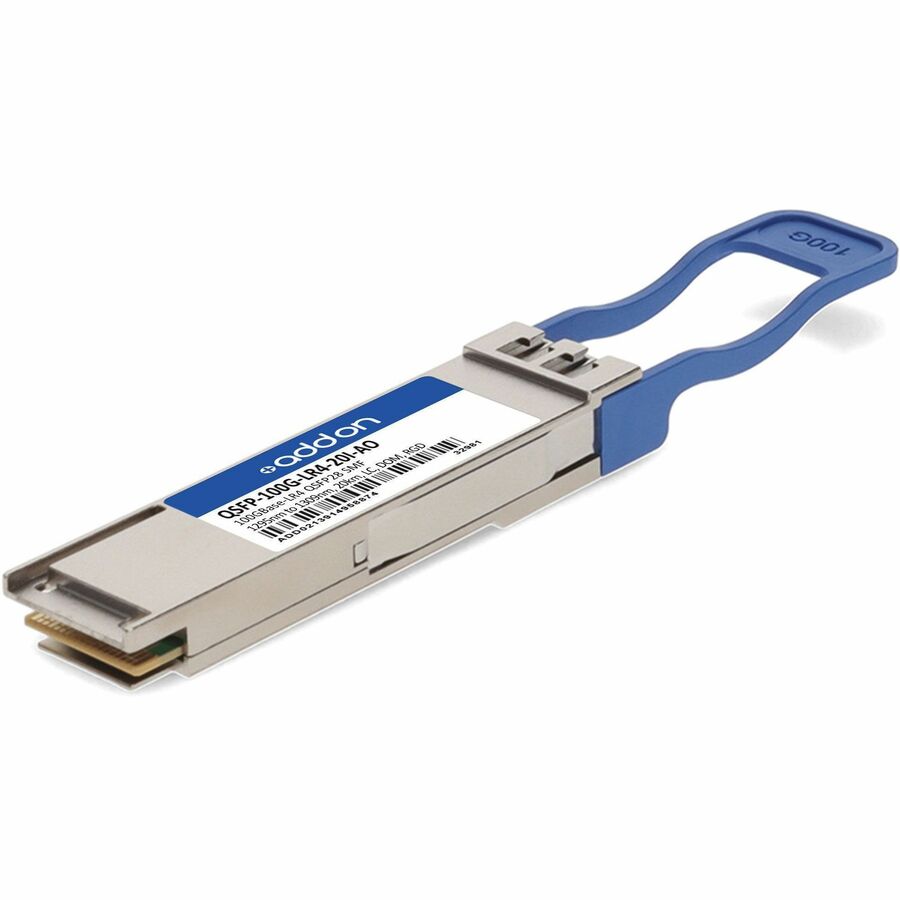

The AddOn Arista Networks® QSFP-100G-LR4-20-I-AO is a 100GBase-LR4 QSFP28 transceiver designed to deliver reliable high-speed data transmission over distances of up to 20km using single-mode fiber (SMF). Operating within a wavelength range of 1295nm to 1309nm, it connects via a duplex LC interface and supports Digital Optical Monitoring (DOM) for real-time diagnostics.
Built to meet SFF-8665 standards, this hot-pluggable module is engineered for demanding environments with an industrial temperature range of -40°C to 85°C. It is fully TAA compliant, RoHS certified, and rigorously tested for 100% compatibility with Arista Networks® equipment.
With its robust design, low EMI metal housing, and enhanced ESD protection, this transceiver is ideal for 100G Ethernet, access, and enterprise networks that require high performance, durability, and long-distance connectivity.
| Specification | Description |
|---|---|
| Manufacturer | AddOn |
| Manufacturer Part Number | QSFP-100G-LR4-20-I-AO |
| Form Factor | QSFP28 |
| Data Rate per Channel | 25.78125 Gb/s |
| Total Data Rate | 100 Gbps |
| Interface | Duplex LC |
| Fiber Type | Single-Mode Fiber (SMF) |
| Wavelength Range | 1295nm – 1309nm |
| Reach / Distance | Up to 20km |
| Digital Optical Monitoring (DOM) | Supported |
| Temperature Range | -40°C to 85°C (Industrial) |
| Connector Type | LC Duplex |
| Hot Pluggable | Yes |
| Compliance Standards | SFF-8665, RoHS, TAA |
| Optical Launch Power per Lane | 0 to +5 dBm |
| Receiver Sensitivity (OMA) | ≤ -9.0 dBm |
| Extinction Ratio | ≥ 4.0 dB |
| Power Supply Voltage | 3.135V – 3.465V |
| Power Dissipation | ≤ 5 W |
| Applications | 100G Ethernet, Access, Enterprise Networks |
| Warranty | Limited Lifetime Warranty |
