Description

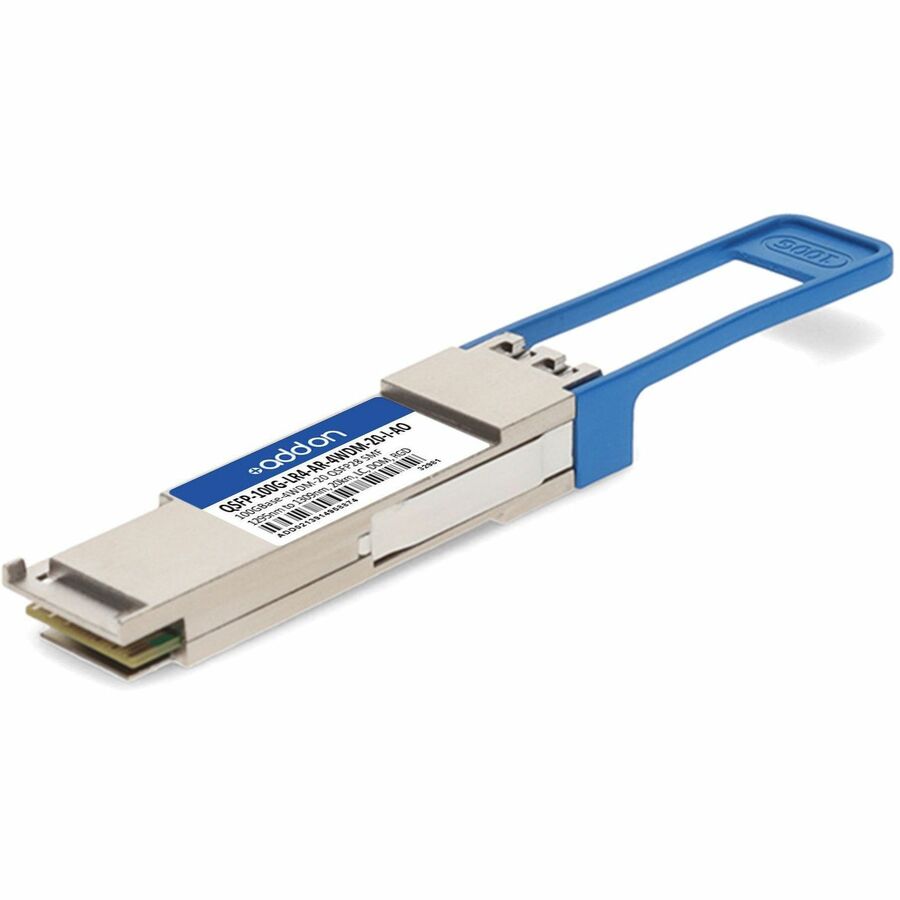

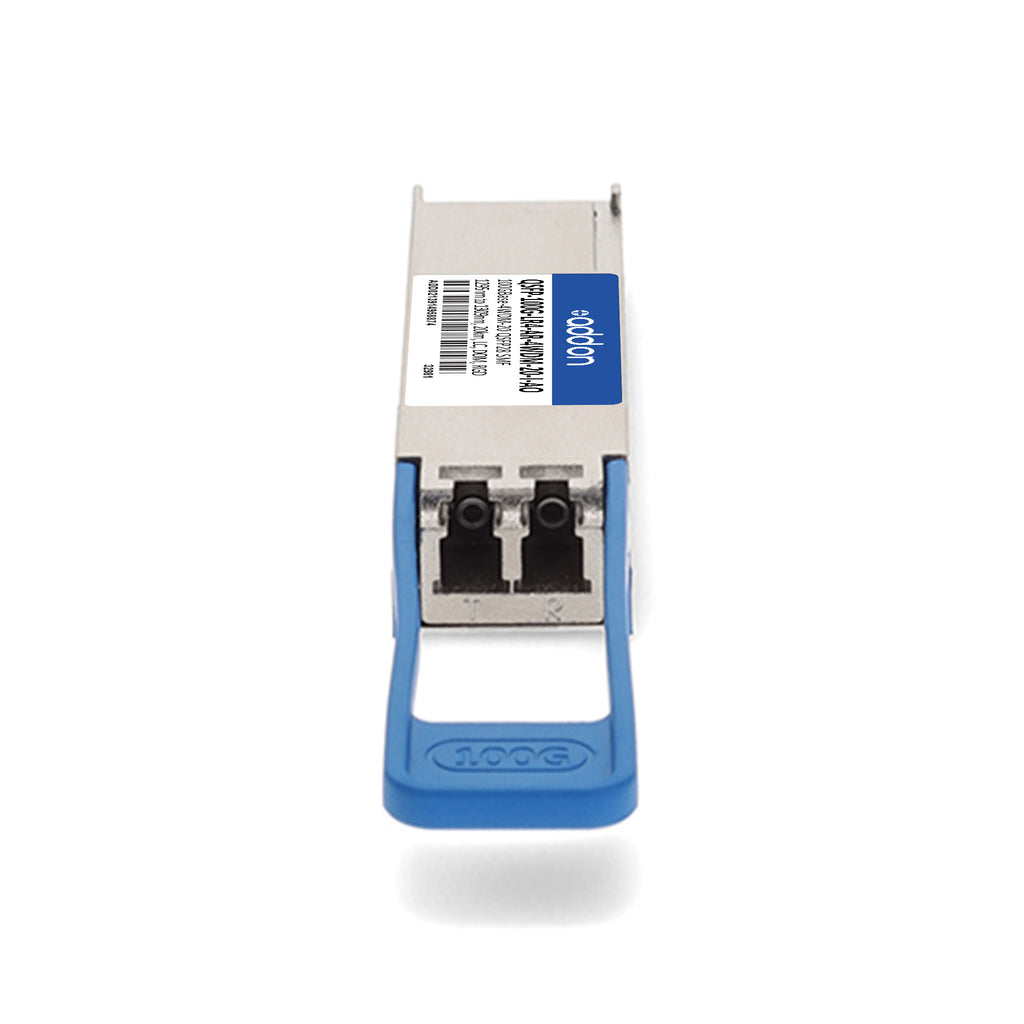

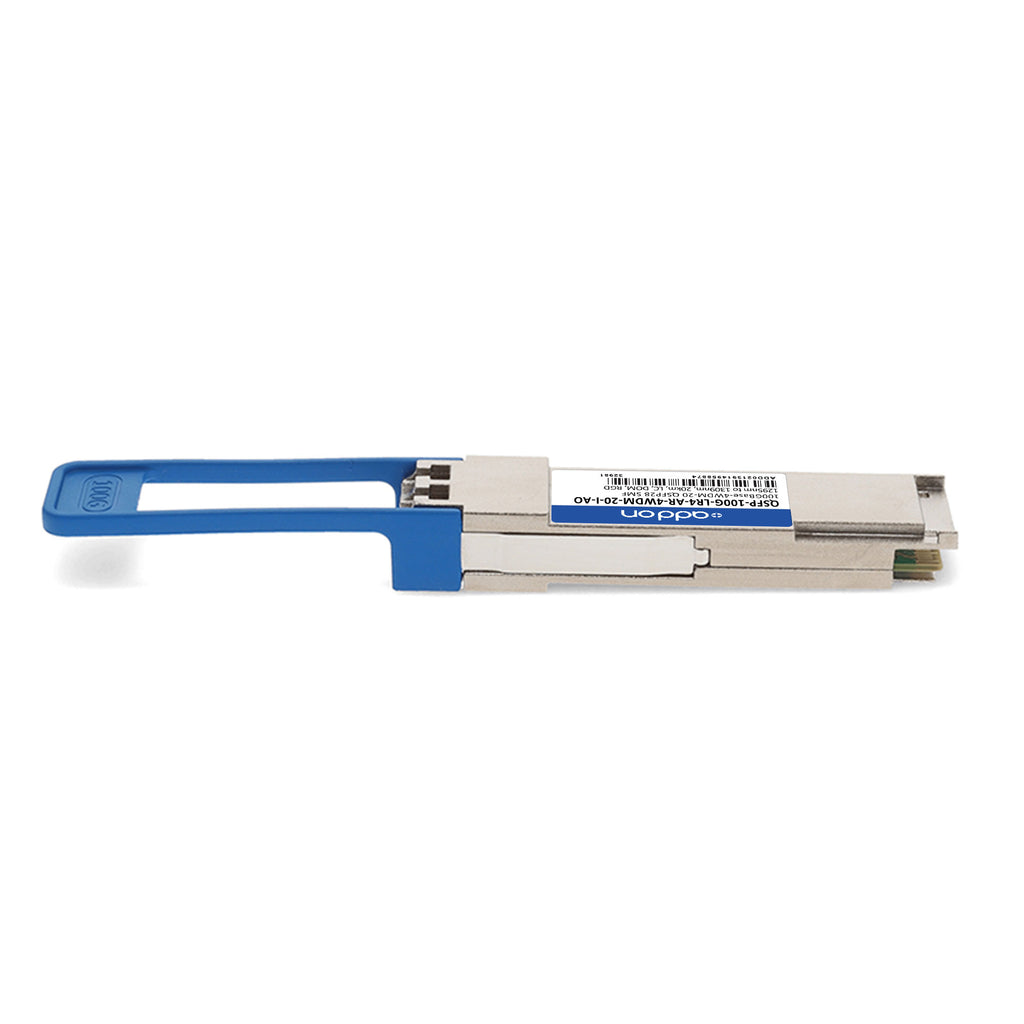

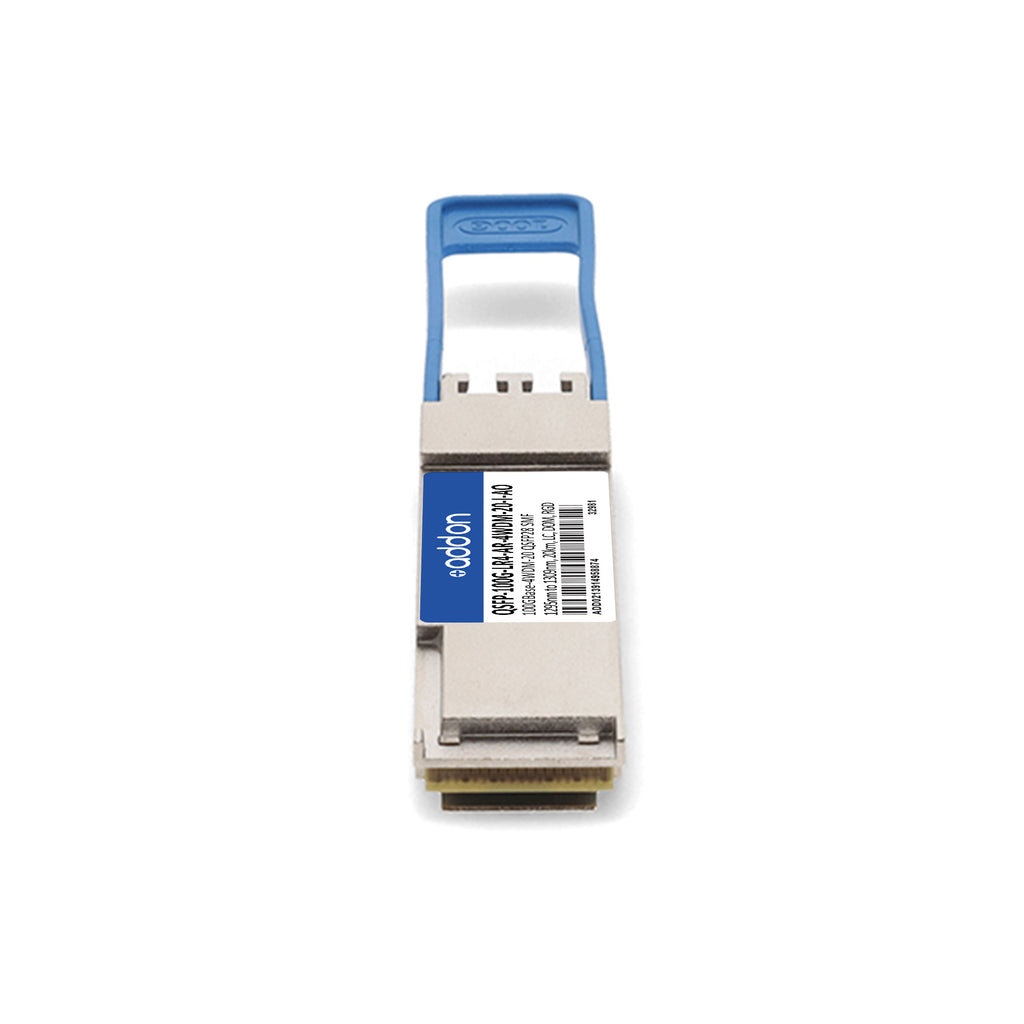

The AddOn Arista Networks® QSFP-100G-LR4-AR-4WDM-20-I Compatible TAA 100GBase-4WDM-20 QSFP28 Transceiver delivers reliable, high-performance 100 Gbps data transmission over single-mode fiber (SMF) up to 20 km. Designed to meet and exceed OEM specifications, it operates across 1295 nm to 1309 nm wavelengths and features four 25 Gbps LAN-WDM DFB transmitters.
Built for data center, enterprise, and access networking environments, this hot-swappable transceiver includes Digital Optical Monitoring (DOM) for real-time performance insights and utilizes a duplex LC connector. With MSA compliance, a wide -40 °C to +85 °C industrial operating range, and TAA compliance, this module guarantees seamless integration, exceptional reliability, and compatibility with Arista Networks® systems. Each unit is uniquely serialized, thoroughly tested for data traffic and applications, and backed by AddOn’s industry-leading quality assurance and limited lifetime warranty.
| Specification | Details |
|---|---|
| Manufacturer | AddOn |
| Part Number | QSFP-100G-LR4-AR-4WDM-20-I-AO |
| Form Factor | QSFP28 |
| Data Rate | 100 Gbps |
| Application | 100GBase-4WDM-20 Ethernet |
| Compatibility | Arista Networks® QSFP-100G-LR4-AR-4WDM-20-I |
| Wavelength Range | 1295 nm – 1309 nm |
| Reach / Distance | Up to 20 km over SMF |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Transmitter Type | 4×25 Gbps DFB LAN-WDM |
| Receiver Type | PIN + TIA array |
| Power Supply Voltage | 3.3 V |
| Power Dissipation | < 4.8 W |
| Operating Temperature | -40 °C to +85 °C (Industrial) |
| Digital Diagnostics (DOM) | Supported |
| Compliance | QSFP28 MSA, IEEE 802.3bm, RoHS, TAA |
| Hot-Swappable | Yes |
| Interface | I²C with integrated DDM |
| Warranty | Limited Lifetime Warranty |
