Description

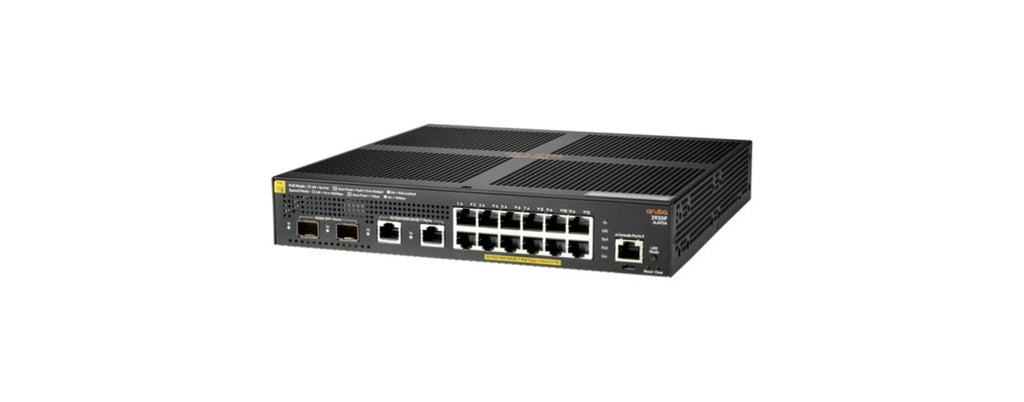

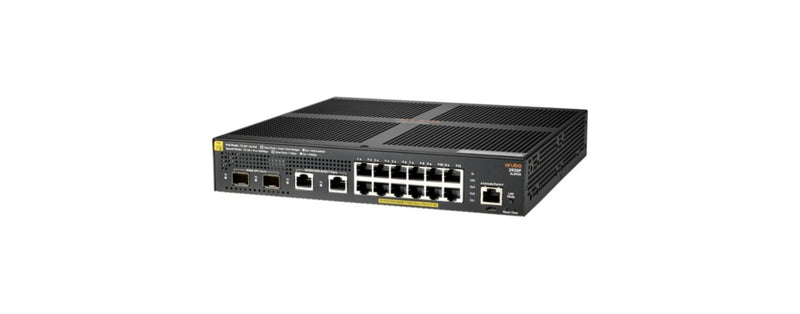

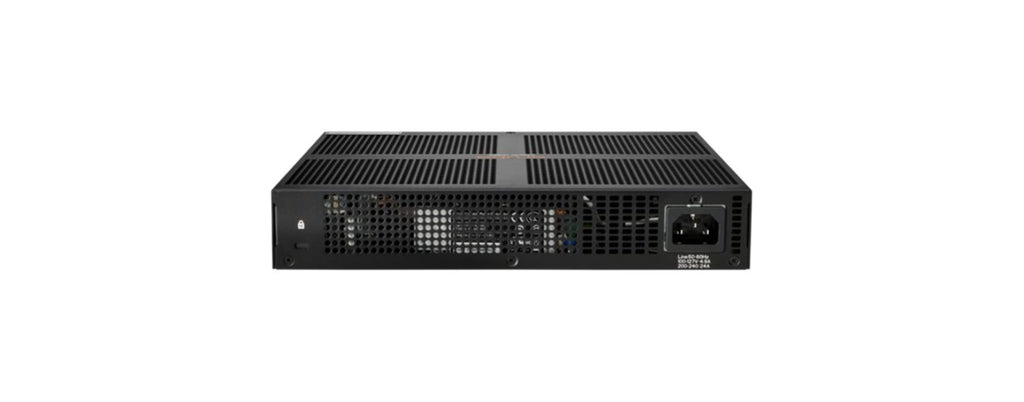

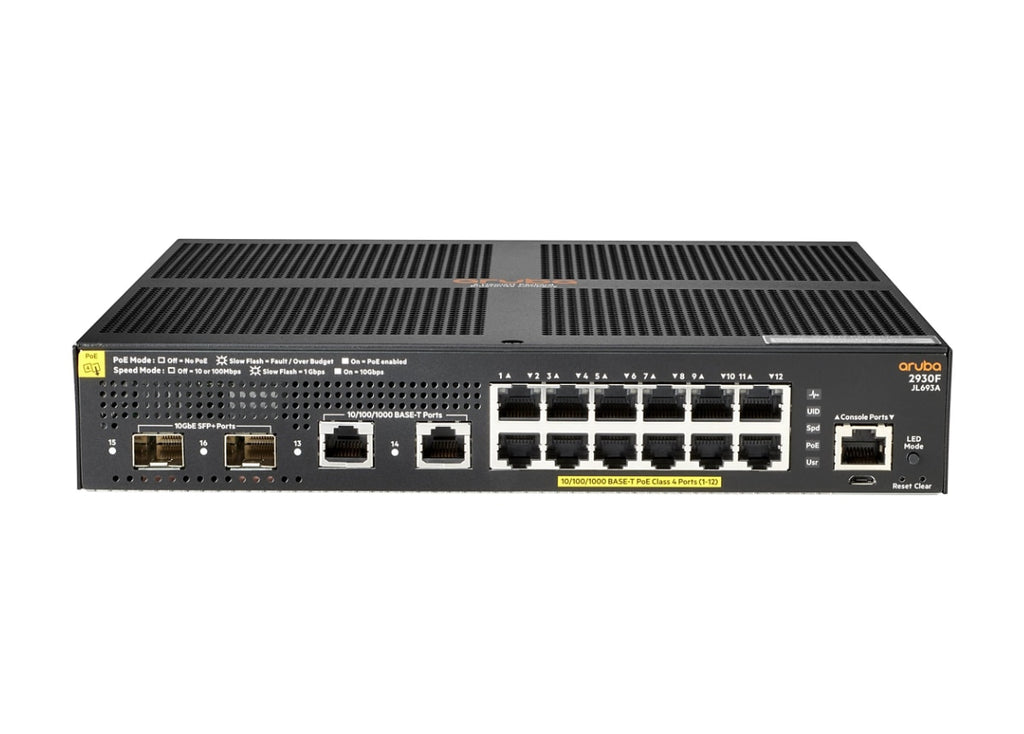

The HPE Aruba Networking 2930F 12G PoE+ 2G/2SFP+ Switch (JL693A#ABA) is an enterprise-class Layer 3 managed switch designed for performance, simplicity, and security at the edge. Featuring 12x PoE+ ports with a 139W PoE budget, it delivers up to 30W per port to power access points, VoIP phones, and surveillance cameras. Built with a powerful dual-core ARM Cortex-A9 processor and 1 GB DDR3 SDRAM, this switch supports fast throughput and low latency for demanding networking environments.
Integrated 1G and 10G SFP+ uplinks offer high-speed connectivity for aggregation or uplink to core switches. Unified network policy enforcement is simplified using Aruba ClearPass Policy Manager and Dynamic Segmentation. With a compact 1U rackmount form factor, energy-efficient 80 PLUS Silver power supply, and a limited lifetime warranty, the Aruba 2930F is a smart, scalable solution for modern campus and branch deployments.
| Category | Details |
|---|---|
| Product Name | HPE Aruba Networking 2930F 12G PoE+ 2G/2SFP+ Switch |
| Part Number | JL693A#ABA |
| Switching Layer | Layer 3 |
| Ports | 12 x 10/100/1000 PoE+ RJ-452 x 1G RJ-452 x 1G/10G SFP+ uplink |
| PoE Budget | 139W total (IEEE 802.3at PoE+) |
| Switching Capacity | 68 Gbps |
| Throughput | 41.7 Mpps |
| Processor | ARM Cortex-A9 Dual-Core 1.016 GHz |
| Memory | 1 GB DDR3 SDRAM, 4 GB Flash |
| MAC Address Table | 32K entries |
| Expansion Slot | 1x module slot |
| Management | CLI, SNMP, SSH, RMON, Telnet, Web GUI, Aruba ClearPass |
| Advanced Features | ACLs, QoS, Static & Dynamic Routing (IPv4/IPv6), sFlow, Jumbo Frames, MSTP |
| Security | RADIUS, TACACS+, PAP, CHAP, Dynamic Segmentation, MAC Lockout |
| Operating Temp | 32°F to 113°F (0°C to 45°C) |
| Storage Temp | -40°F to 158°F (-40°C to 70°C) |
| Humidity | 15% - 95% non-condensing |
| Power Supply | Internal, 80 PLUS Silver Certified |
| Form Factor | Rack-mountable, 1U |
| Dimensions (W x D x H) | 10 x 10 x 1.7 in (25.4 x 25.4 x 4.3 cm) |
| Weight | 4.85 lbs (2.2 kg) |
| Certifications | FCC, UL, CE, VCCI Class A, ICES-003, EN, CISPR, ENERGY STAR (non-certified) |
| Warranty | Limited Lifetime Warranty |
