Description

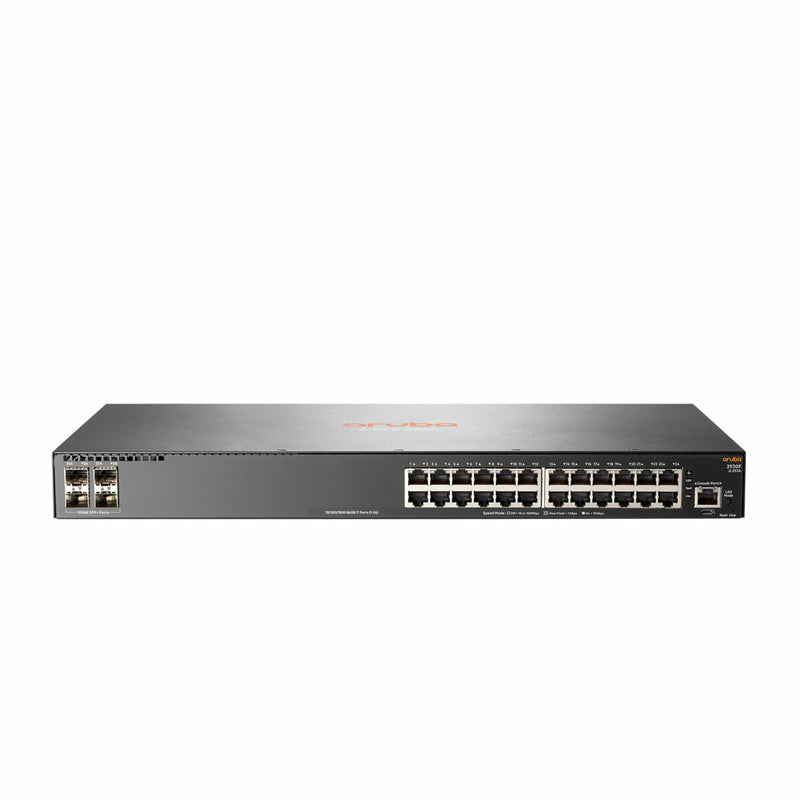

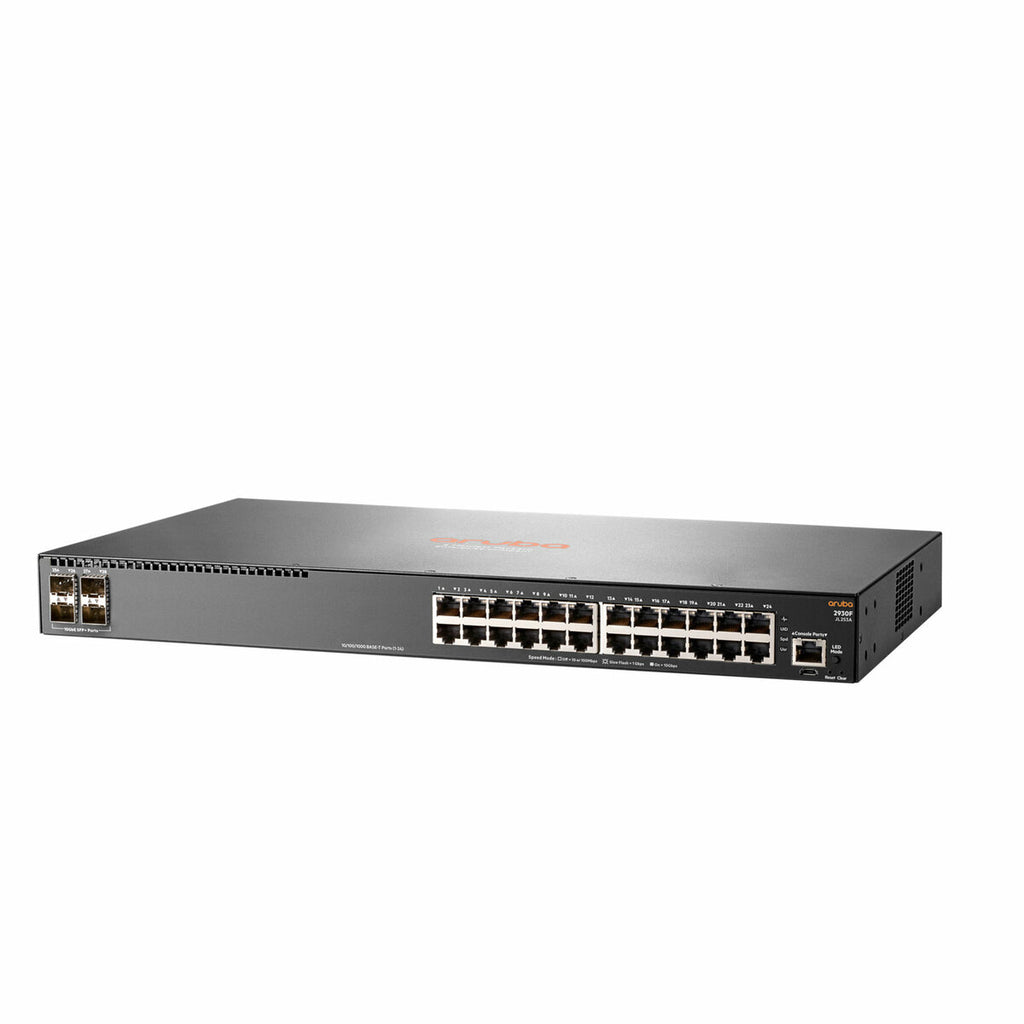

The HPE Aruba 2930F 24G 4SFP+ Switch is a high-performance Layer 3 managed switch designed to deliver scalable, secure, and smart network access for enterprise edge, SMB, and branch office environments. With 24 Gigabit Ethernet ports and 4 high-speed 1/10G SFP+ uplinks, this switch supports advanced Layer 3 routing, VSF stacking, PoE+ capabilities, and comprehensive management features including Aruba ClearPass, Aruba Central, and REST APIs.
Ideal for mobile-first networks, it simplifies deployment with Zero Touch Provisioning (ZTP) and offers robust security, dynamic segmentation, QoS, and energy-efficient operation—all backed by a limited lifetime warranty.
| Specification | Details |
|---|---|
| Model Number | JL253A#B2B |
| Switch Type | Layer 3 Managed Switch |
| Ports | 24 x 10/100/1000 RJ-45 |
| Uplinks | 4 x 1/10 Gigabit SFP+ |
| Stacking | Virtual Switching Framework (VSF) supported |
| Form Factor | Rack-mountable, 1U |
| Switching Capacity | 128 Gbps |
| Throughput | 95.2 Mpps |
| Latency | 3.8 µs (1G), 1.6 µs (10G) |
| MAC Address Table Size | 32,000 entries |
| Jumbo Frame Size | 9,220 bytes |
| Flash Memory / RAM | 4 GB / 1 GB DDR3 SDRAM |
| Processor | ARM Cortex-A9 1.016 GHz |
| Network Standards | IEEE 802.1D/Q/p/af/x/ad/w/x/s/v/ab/at/az, etc. |
| Routing Protocols | RIP, OSPF, BGP, Static IPv4/IPv6, RIPng, IGMP |
| Security Features | RADIUS, TACACS+, ACLs, SSL, MAC lockout |
| Remote Management | SNMPv1/v2/v3, RMON, SSH, CLI, Aruba AirWave |
| Power Supply | Internal, 80 PLUS Silver certified |
| Power Consumption | 29.3W |
| Dimensions (W x D x H) | 44.25 x 20.02 x 4.39 cm |
| Weight | 2.41 kg |
| Operating Temp / Humidity | 0°C to 45°C / 15–95% RH |
| Warranty | Limited Lifetime Warranty |
