Description

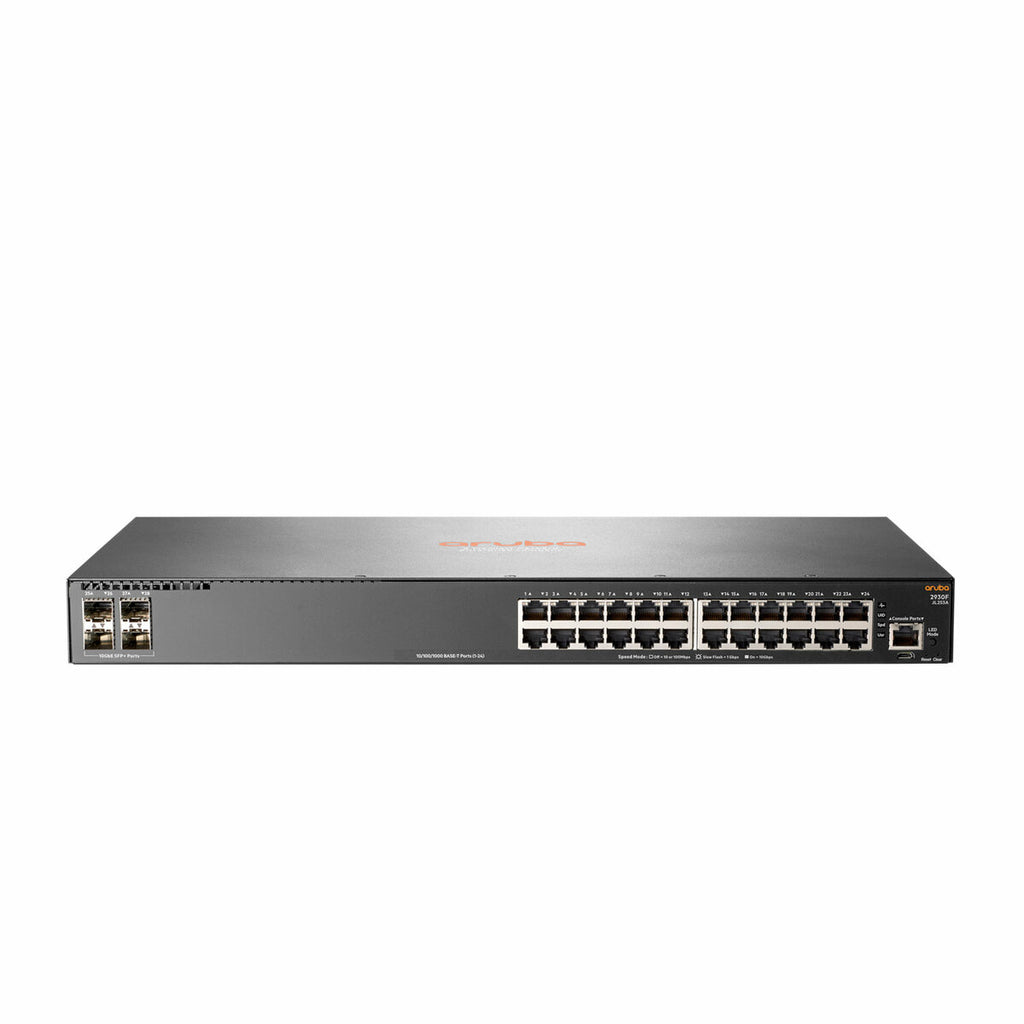

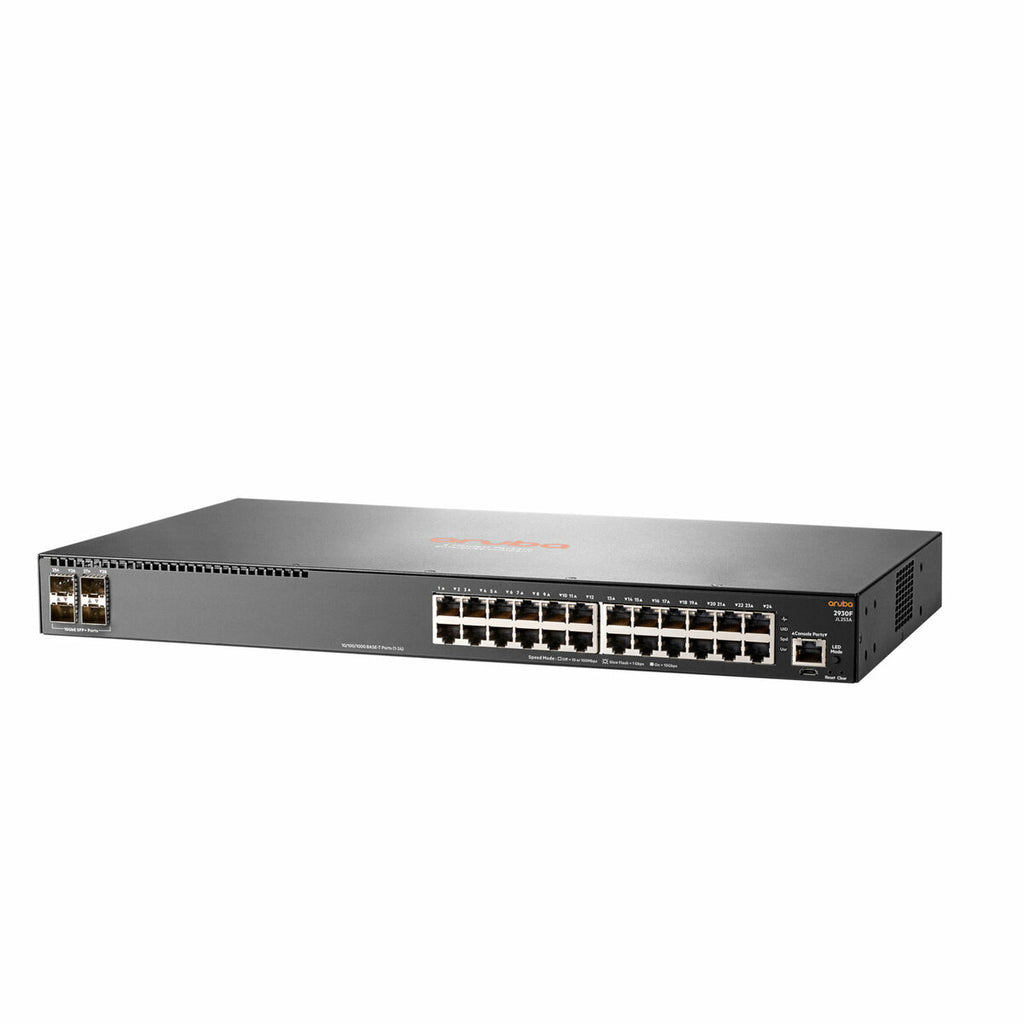

The HPE Aruba Networking 2930F 24G 4SFP Switch is a high-performance, Layer 3 managed switch designed for enterprise edge, branch, and SMB networks. With 24 Gigabit Ethernet ports and 4 dedicated Gigabit SFP uplinks, it delivers secure, scalable connectivity and simplified management through tools like Aruba Central, AirWave, and ClearPass Policy Manager.
This switch supports Virtual Switching Framework (VSF) stacking, advanced Layer 3 features (RIP, static routes, and Access OSPF), PoE priority for APs, enhanced security protocols (802.1X, MAC authentication, Web Auth), and automation via REST APIs and OpenFlow. The JL259A#ABA offers exceptional value with no additional software licensing required, making it ideal for modern, mobile-first digital workplaces.
| Specification | Details |
|---|---|
| Model Number | JL259A#ABA |
| Product Series | HPE Aruba Networking 2930F |
| Ports | 24 × RJ-45 autosensing 10/100/1000 + 4 × Gigabit SFP |
| Switching Capacity | 56 Gbps |
| Throughput | Up to 41.7 Mpps |
| Latency (1G) | < 3.8 µs |
| Stacking Support | Up to 8 members via VSF |
| Memory & Processor | Dual Core ARM Cortex A9 @ 1016 MHz, 1 GB DDR3 SDRAM |
| 4 GB eMMC storage, 12.38 MB packet buffer (Ingress: 4.5 MB, Egress: 7.875 MB) | |
| Management | Aruba Central, AirWave, ClearPass, CLI, Web GUI, SNMP, IMC, RMON, Telnet, FTP |
| Input Voltage | 100–127/200–240 VAC |
| Power Consumption | 29.3W max |
| Heat Dissipation | 100 BTU/hr (105.5 kJ/hr) |
| Mounting | Rack-mountable |
| Dimensions (HxWxD) | 1.73 x 17.42 x 7.88 in (4.39 x 44.25 x 20.02 cm) |
| Form Factor | 1U |
| Warranty | Limited Lifetime Warranty |
