Description

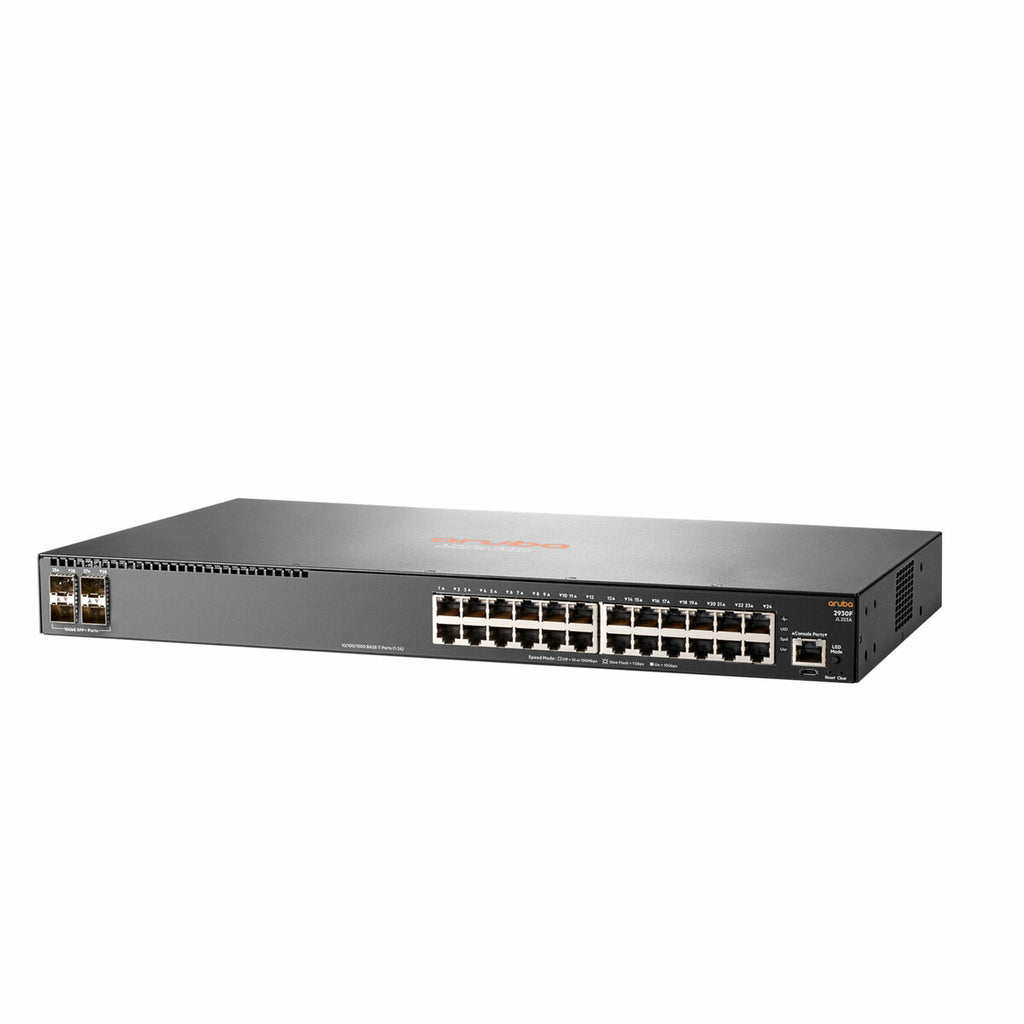

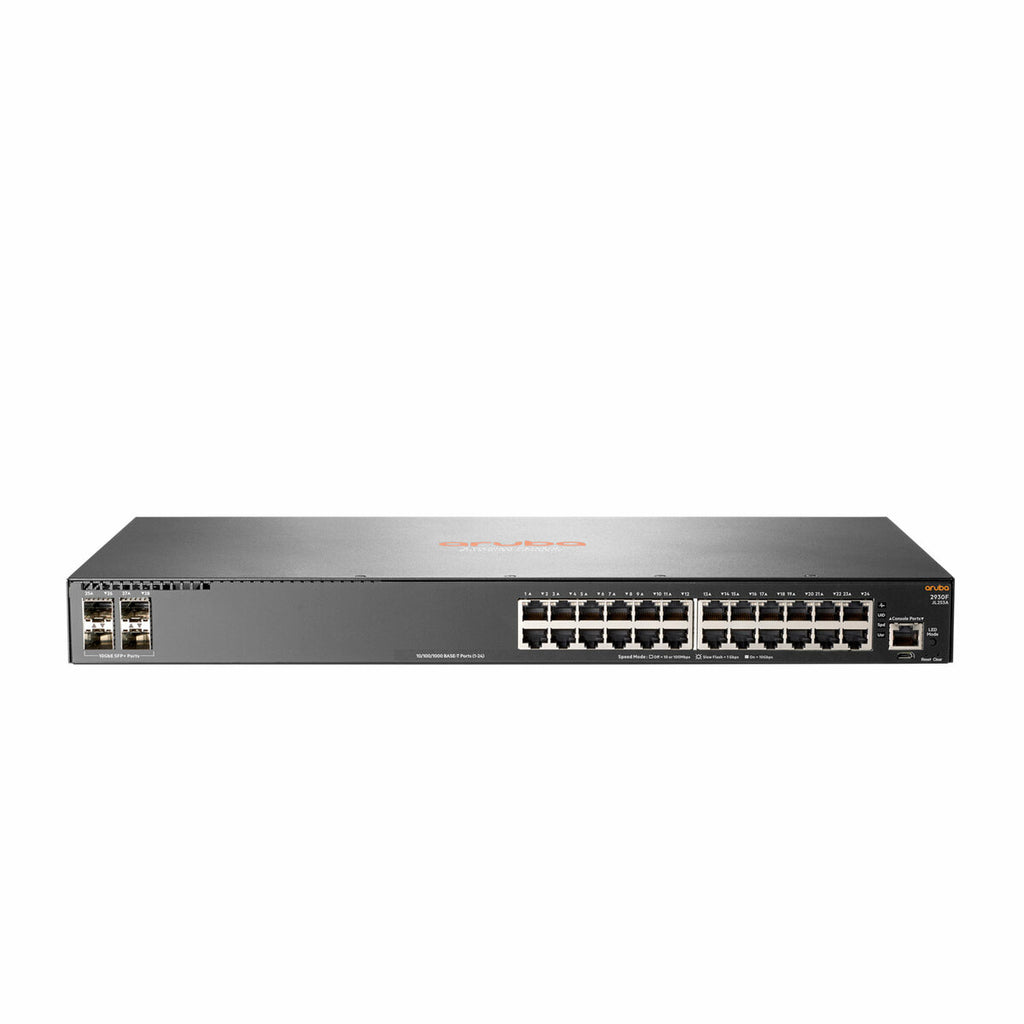

The HPE Aruba Networking 2930F 24G 4SFP+ Switch is a high-performance, secure, and scalable Layer 3 managed switch built for enterprise edge, SMB, and branch networks. Equipped with 24 Gigabit RJ-45 ports and 4 SFP+ uplinks (1/10GbE), this rack-mountable switch delivers enterprise-class features with simplified cloud-based or on-premise management through Aruba Central or AirWave.
With support for Virtual Switching Framework (VSF), RIP, Access OSPF routing, and robust QoS, the 2930F ensures flexible deployment with zero software licensing requirements. Designed for today’s mobile-first digital environments, it offers powerful SDN optimizations, integrated security, and advanced monitoring capabilities.
| Feature | Details |
|---|---|
| Model Number | JL253A#ABA |
| Product Type | Layer 3 Managed Switch |
| Ports | 24 x 10/100/1000 RJ-454 x 1/10GbE SFP+ uplink (PHY-less) |
| Stacking | Virtual Switching Framework (VSF), up to 8 switches |
| Processor | Dual Core ARM Cortex A9 @ 1016 MHz |
| Memory | 1 GB DDR3 SDRAM, 4 GB eMMC |
| Packet Buffer Size | 12.38 MB (4.5 MB Ingress / 7.875 MB Egress) |
| Switching Capacity | 128 Gbps |
| Throughput | Up to 95.2 Mpps |
| Latency | < 3.8 µs (1G) / < 1.6 µs (10G) |
| Power Supply | Internal, 100–127 / 200–240 VAC |
| Power Consumption | 29.3W (maximum) |
| Heat Dissipation | 100 BTU/hr (105.5 kJ/hr) |
| Dimensions (H x W x D) | 1.73 x 17.42 x 7.88 in |
| Management Interfaces | CLI, Web UI, SNMP, Telnet, AirWave, Aruba Central, IMC |
| Mounting | Rack-mountable |
| Security Features | 802.1X, MAC/Web Authentication, RADIUS/TACACS+, Port Security, SSL |
| Monitoring Features | sFlow, RMON, Out-of-band management (RS-232C / micro USB) |
| OS/Software | No license required; includes routing, ACLs, QoS, sFlow, IPv6 |
