Description

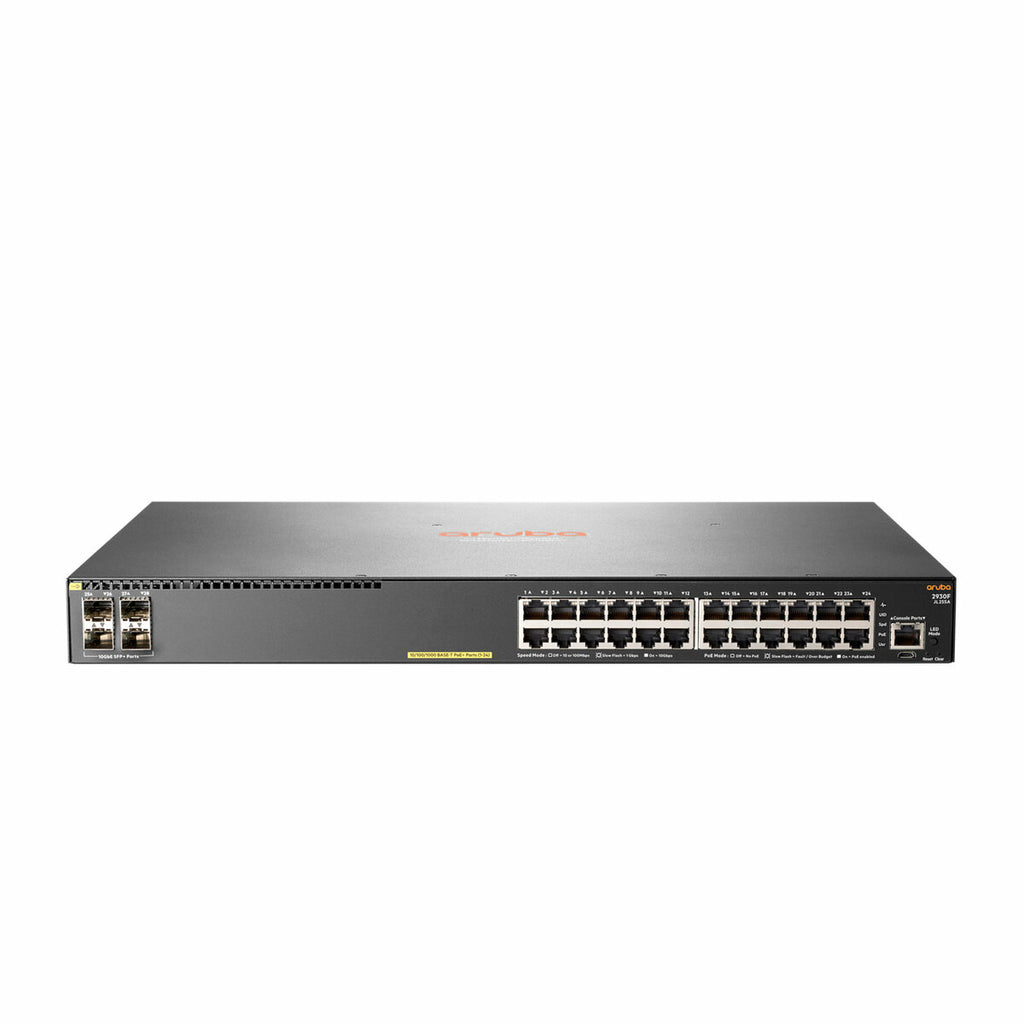

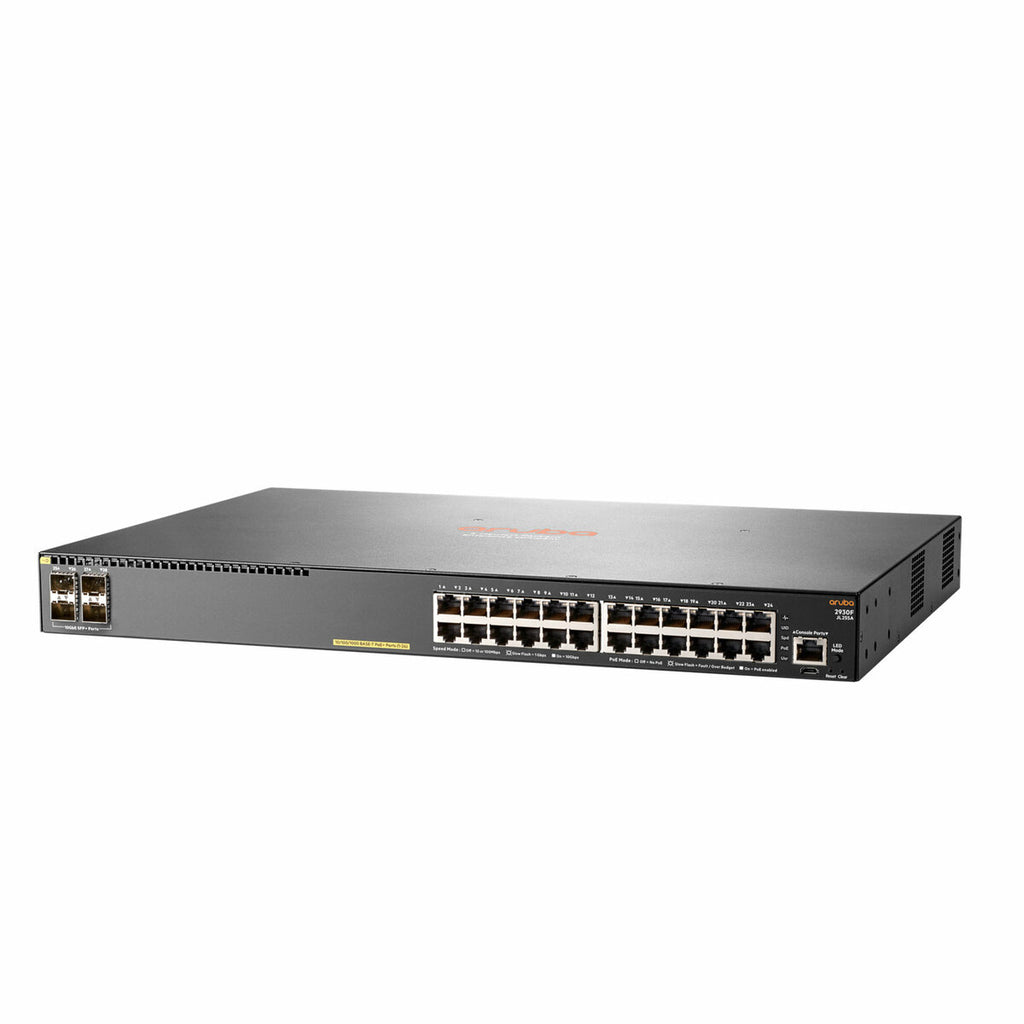

The HPE Aruba Networking 2930F 24G PoE+ 4SFP+ Switch (JL255A#ABA) is a high-performance, Layer 3 managed switch purpose-built for digital workplaces, edge access, and SMB deployments. With 24 Gigabit PoE+ ports and 4 SFP+ uplink ports, it supports fast, scalable network connectivity while delivering up to 370W of PoE+ power for wireless APs, IP phones, and security cameras.
This stackable switch features HPE Aruba Networking’s Virtual Switching Framework (VSF), which enables up to 8 switches to operate as one logical device. It includes advanced Layer 3 routing features such as static routes, RIP, and Access OSPF, all license-free. Simplified management is enabled via Aruba Central (cloud), AirWave, or a local CLI.
Whether you're upgrading your campus network or building out edge access, the JL255A#ABA delivers performance, reliability, and integrated security with ease of use.
| Specification | Details |
|---|---|
| Product Number | JL255A#ABA |
| Switch Type | Layer 3 Managed Switch |
| Ports | 24 Ă— 10/100/1000 PoE+ RJ-454 Ă— SFP+ 1/10GbE uplinks |
| PoE Power Budget | 370W PoE+ |
| Switching Capacity | 128 Gbps |
| Throughput | Up to 95.2 Mpps |
| Latency | < 3.8 µs (1 Gbps), < 1.6 µs (10 Gbps) |
| Processor | Dual Core ARM Cortex A9 @ 1016 MHz |
| Memory | 1 GB DDR3 SDRAM, 4 GB eMMC |
| Packet Buffer | 12.38 MB total (4.5 MB ingress / 7.875 MB egress) |
| Power Input | 100–127 / 200–240 VAC |
| Max Power Consumption | 445W |
| Heat Dissipation | 258 BTU/hr |
| Stacking | Supports VSF stacking (up to 8 members) |
| Management | Aruba Central, AirWave, Web GUI, CLI, SNMP, Telnet, Out-of-band (serial/USB) |
| Mounting | Rack-mountable |
| Form Factor | 1U |
| Software Licenses Required | None |
