Description

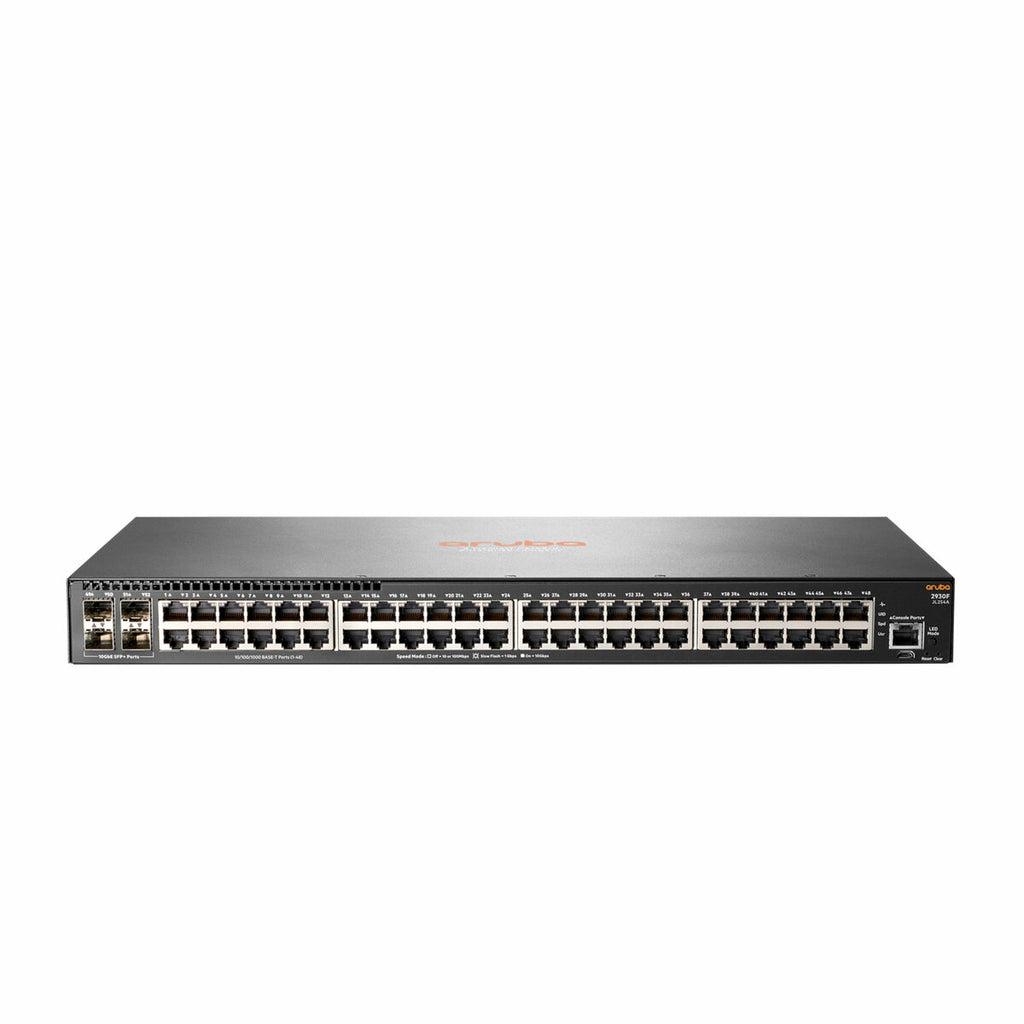

The HPE Aruba Networking 2930F 48G 4SFP+ Switch is a Layer 3 access switch purpose-built for digital campuses, branch networks, and SMBs. Designed for high-performance edge connectivity, it features 48 autosensing 10/100/1000 Mbps ports and 4 dual-speed SFP+ uplinks supporting 1/10GbE. This managed switch simplifies network deployment with support for Zero Touch Provisioning, Aruba Central, ClearPass, and AirWave.
Built on the powerful ProVision ASIC architecture, it delivers advanced features such as RIP and Access OSPF routing, MACsec-ready security, robust QoS, up to 8-member VSF stacking, and PoE+ options — all with no software licensing required. The 2930F series offers unmatched performance, manageability, and scalability for secure, mobile-first networking.
| Specification | Details |
|---|---|
| Product Number | JL254A#ABA |
| Switch Type | Layer 3 Managed |
| Ports | 48 x RJ-45 10/100/1000; 4 x SFP+ 1/10GbE uplinks (PHY-less) |
| Stacking | HPE Aruba VSF, up to 8 members |
| Memory | 1 GB DDR3 SDRAM; 4 GB eMMC; Packet buffer: 12.38 MB |
| Processor | Dual Core ARM Cortex A9 @ 1016 MHz |
| Latency | < 3.8 µs (1G), < 1.6 µs (10G) |
| Throughput | Up to 112 Mpps |
| Switching Capacity | 176 Gbps |
| Management | CLI, Web GUI, SNMP, AirWave, Aruba Central, IMC, Zero Touch |
| Security | 802.1X, ACLs, RADIUS/TACACS+, SSL, MAC Lockout, Port Security |
| Input Voltage | 100–127 / 200–240 VAC rated |
| Power Consumption | 46.6 W (maximum) |
| Heat Dissipation | 157.2 BTU/hr |
| Form Factor | 1U Rack-Mountable |
| Dimensions | 1.73 x 17.42 x 9.7 in (4.4 x 44.2 x 24.7 cm) |
| Weight | Approx. 8.6 lbs (3.9 kg) |
