Description

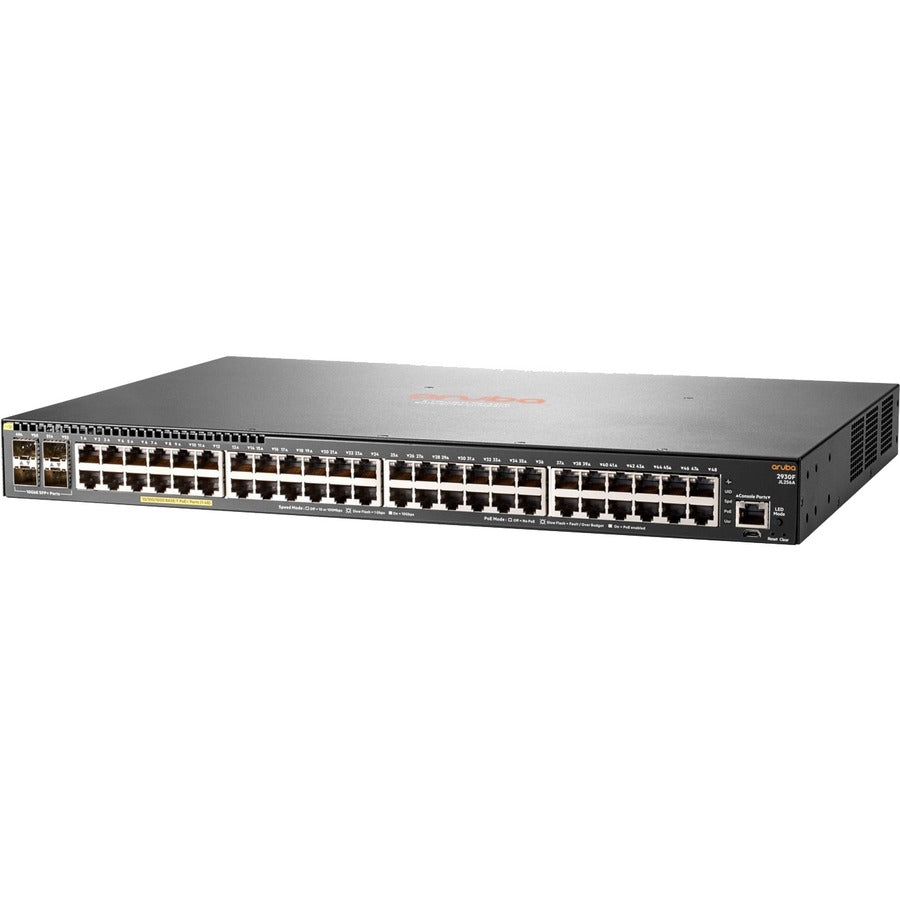

The HPE Aruba Networking 2930F 48G PoE+ 4SFP+ Switch (JL256A#ABA) is a powerful Layer 3 access switch designed for enterprise edge, SMBs, and branch office deployments. Equipped with 48 Gigabit PoE+ ports and 4 SFP+ uplink slots, it supports 10Gbps fiber connectivity and delivers up to 740W of PoE+ power, ideal for powering IP cameras, VoIP phones, and access points.
This rack-mountable switch offers high performance with its 1.02GHz ARM Cortex-A9 processor, 1GB RAM, and 4GB flash memory. It supports advanced network features like VSF stacking, robust Layer 3 routing (OSPF, RIP, BGP), Aruba ClearPass integration, and centralized cloud management via Aruba Central.
Its compact 1U design, integrated power supply, and 80 PLUS Silver efficiency make it a sustainable and space-saving choice. Backed by a limited lifetime warranty, this switch provides enterprise-grade features without the need for additional software licensing.
| Category | Details |
|---|---|
| Model Number | JL256A#ABA |
| Product Type | Managed Layer 3 Switch |
| Ports | 48 x 10/100/1000 PoE+ RJ-45 ports |
| Uplink Ports | 4 x SFP+ 10GbE |
| PoE+ Budget | Up to 740W |
| Switching Capacity | 176 Gbps |
| Throughput | 112 Mpps |
| Stacking | Virtual Switching Framework (VSF) supported |
| Processor | 1.02 GHz ARM Cortex-A9 |
| Memory | 1 GB DDR3 SDRAM RAM, 4 GB flash |
| MAC Address Table | 32K entries |
| Form Factor | Rack-mountable (1U) |
| Power Supply | Internal, 80 PLUS Silver, 120–230V AC |
| Latency | 3.8 µs (1Gbps), 1.6 µs (10Gbps) |
| Operating Temp | 32°F to 113°F (0°C to 45°C) |
| Dimensions (W x D x H) | 17.4 x 12 x 1.7 in |
| Weight | 9.83 lbs |
| Management | Aruba Central, AirWave, Web UI, CLI, SNMP, SSH |
| Security | RADIUS, TACACS+, ACLs, MAC lockout, Dynamic ARP protection |
| Routing Protocols | RIP, RIPng, OSPF, OSPFv3, BGP, Static IPv4/IPv6 |
| Compliance | FCC, EN, CISPR, UL, IEC standards |
| Included Accessories | Mounting ears, bumper feet, cable tie, mounting screws |
| Warranty | Limited lifetime warranty |
