Description

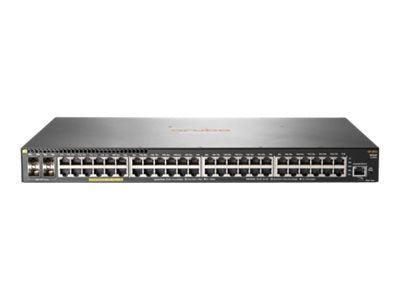

The HPE Aruba Networking 2930F 48G PoE+ 4SFP Switch is a high-performance Layer 3 access switch tailored for the mobile-first digital workplace. Ideal for enterprise edge, SMB, and branch networks, it simplifies deployment and management with built-in security, Zero Touch Provisioning (ZTP), and cloud-based Aruba Central.

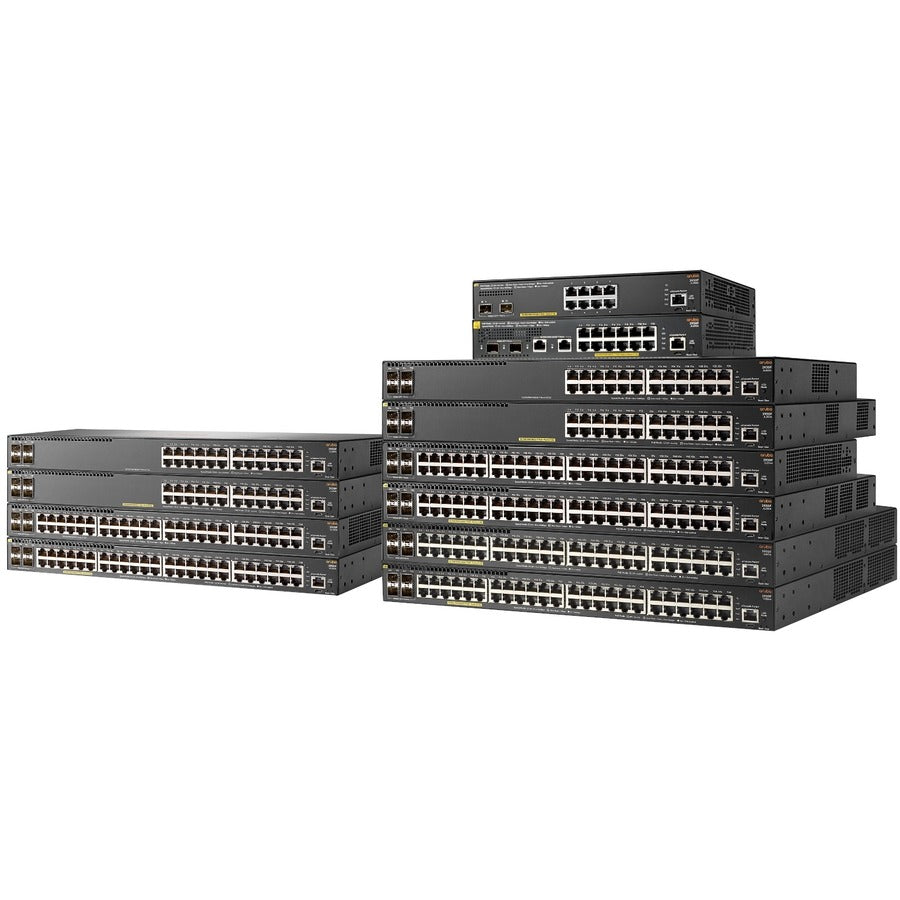

The 2930F Series delivers enterprise-grade performance with support for RIP and Access OSPF routing, 10GbE uplinks, robust QoS, and up to 740W of PoE+ power. Its Virtual Switching Framework (VSF) allows stacking up to 8 switches for scalable, streamlined network topologies. Integrated security and management features, including ClearPass, AirWave, and REST APIs, make it a versatile choice for secure, automated, and efficient networking.
| Specification | Details |
|---|---|
| Model Number | JL262A#B2B |
| Device Type | Layer 3 Managed Switch - Rack-mountable |
| Ports | 48 × 10/100/1000 RJ-45 autosensing PoE+ ports4 × SFP (1 GbE) uplink slots |
| Switching Capacity | 104 Gbps |
| Throughput | Up to 77.4 Mpps |
| Latency | < 3.8 µs (1000 Mb) |
| PoE Capability | 370W internal PoE+ |
| Memory & Processor | Dual Core ARM Cortex A9 @ 1016 MHz1 GB DDR3 SDRAM4 GB eMMC |
| Packet Buffer | 12.38 MB total (4.5 MB Ingress / 7.875 MB Egress) |
| Stacking Support | Up to 8 switches via Virtual Switching Framework (VSF) |
| Management Options | AirWave, Aruba Central, CLI, SNMP, RMON, Web GUI, IMC, REST APIs, Telnet |
| Power Input | 100–127/200–240 VAC |
| Max Power Consumption | 459W |
| Heat Dissipation | 293 BTU/hr (309.1 kJ/hr) |
| Dimensions (H x W x D) | 1.73 x 17.42 x 11.98 in |
| Weight | 9.83 lb |
