Description

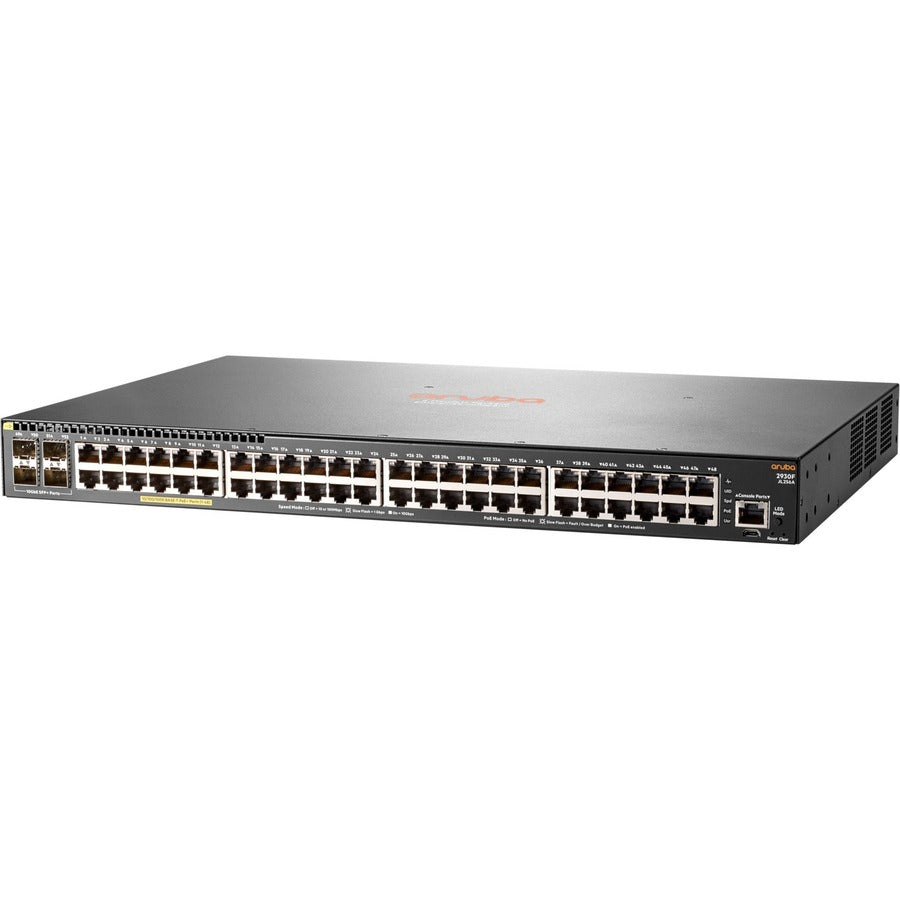

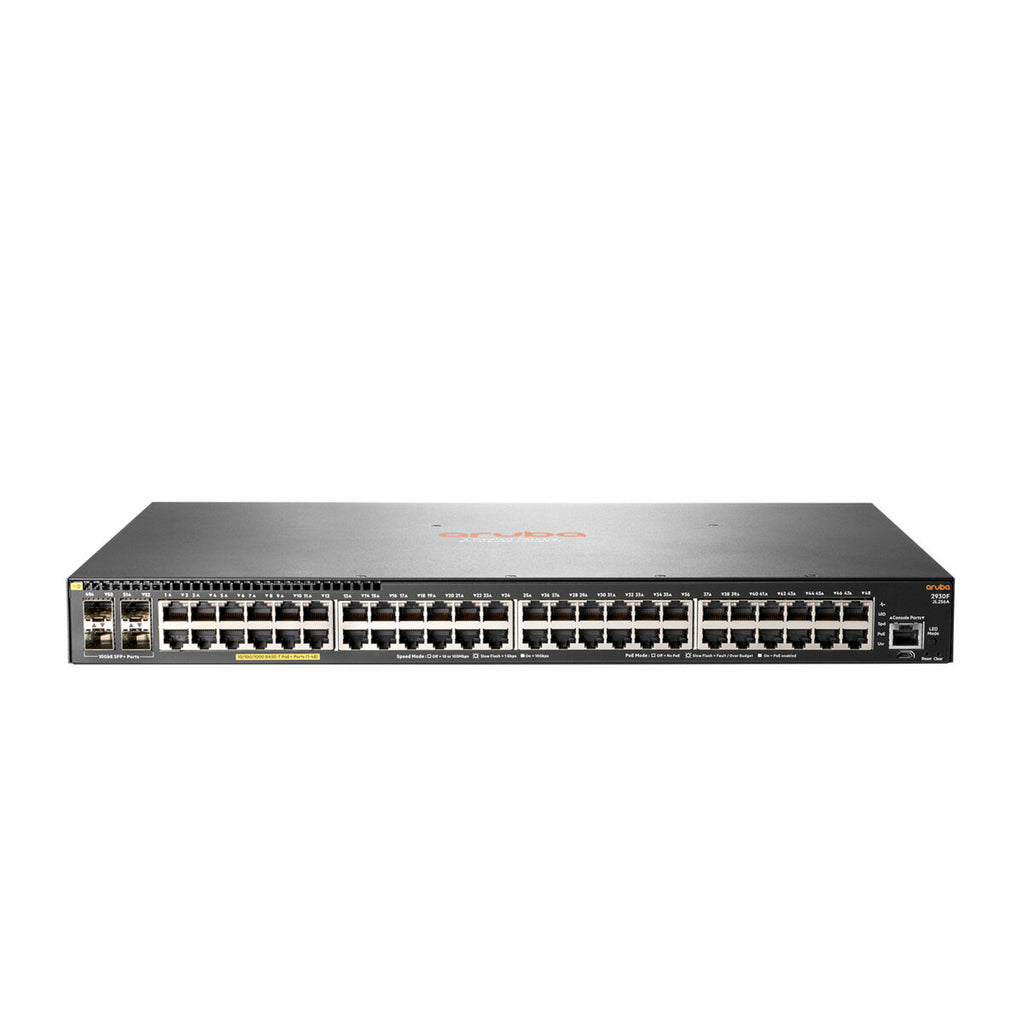

The HPE Aruba Networking 2930F 48G PoE+ 4SFP+ Switch is purpose-built for digital workplaces and enterprise edge networks. Designed with mobile users and high-performance access in mind, this Layer 3 managed switch features 48 autosensing Gigabit PoE+ ports and 4 SFP+ 10GbE uplinks.
Powered by a robust ProVision ASIC, it ensures low-latency forwarding, SDN-ready flexibility, and up to 370W PoE+ power for access points, IP phones, and surveillance systems.
With support for Zero Touch Provisioning, Aruba Central, ClearPass, AirWave, and Virtual Switching Framework (VSF) for simplified stacking, the 2930F combines security, scalability, and ease of management—all without requiring software licenses.
| Specification | Details |
|---|---|
| Model Number | JL256A#AC3 |
| Ports | 48x RJ-45 autosensing 10/100/1000 PoE+ 4x SFP+ 1/10GbE (PHY-less) |
| Switching Capacity | 176 Gbps |
| Throughput | Up to 112 Mpps |
| Latency | < 3.8 µs @ 1GbE < 1.6 µs @ 10GbE |
| PoE+ Power Budget | 370W |
| Stacking Support | Up to 8 switches with Virtual Switching Framework (VSF) |
| Memory | 1 GB DDR3 SDRAM, 4 GB eMMC, 12.38 MB packet buffer |
| Management | Aruba Central, AirWave, CLI, Web GUI, SNMP, RMON, Telnet |
| Power Input | 100–127/200–240 VAC (rated) |
| Max Power Consumption | 459W |
| Heat Dissipation | 293.0 BTU/hr (309.1 kJ/hr) |
| Dimensions (H x W x D) | 1.73 x 17.42 x 11.98 in |
| Weight | 9.83 lb (4.46 kg) |
