Description

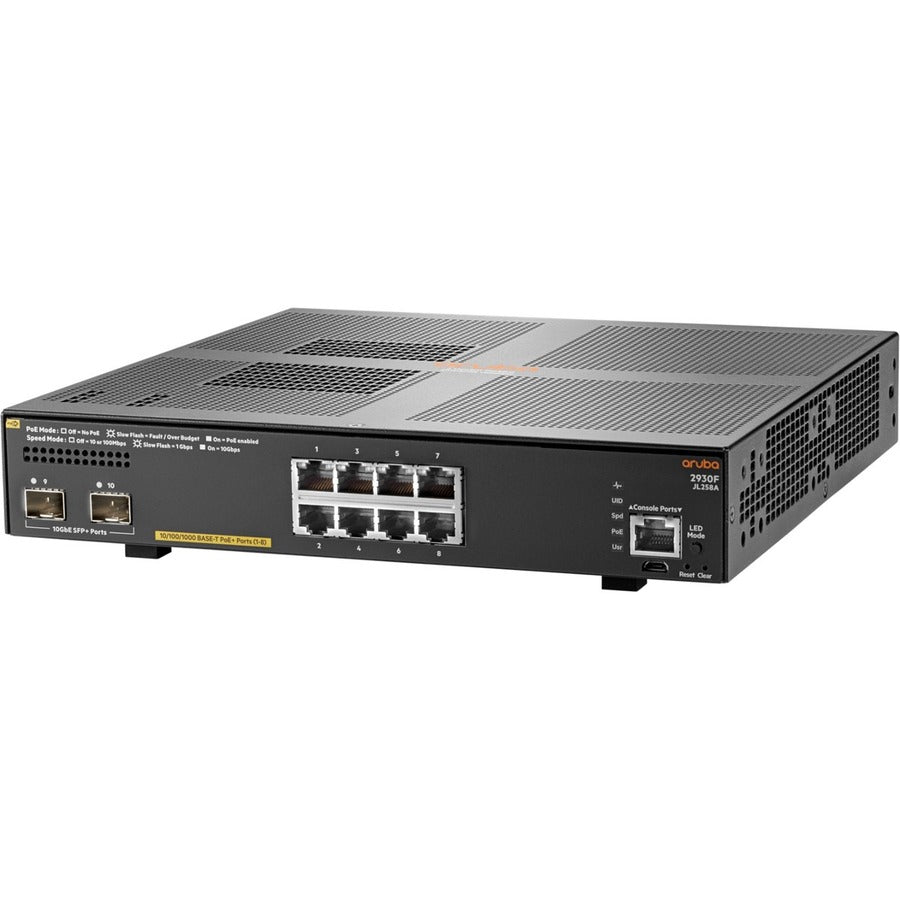

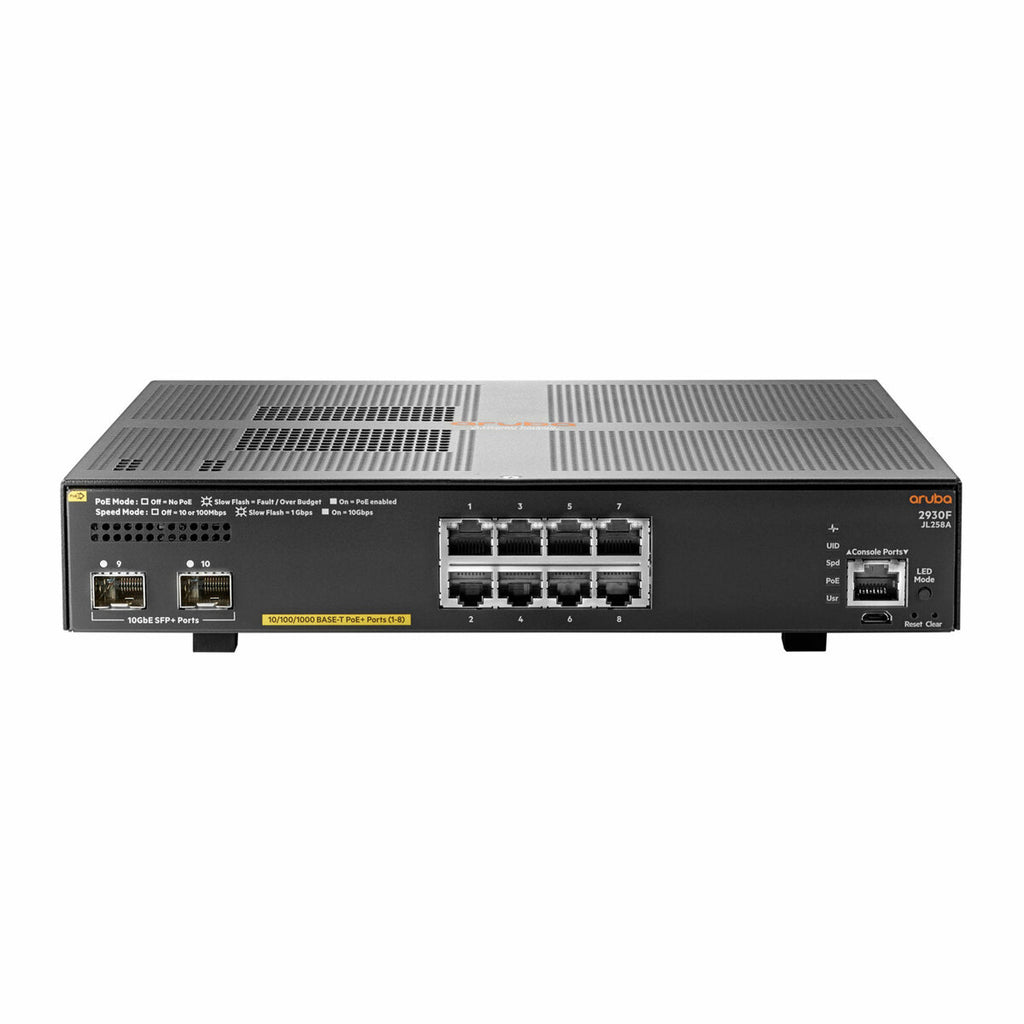

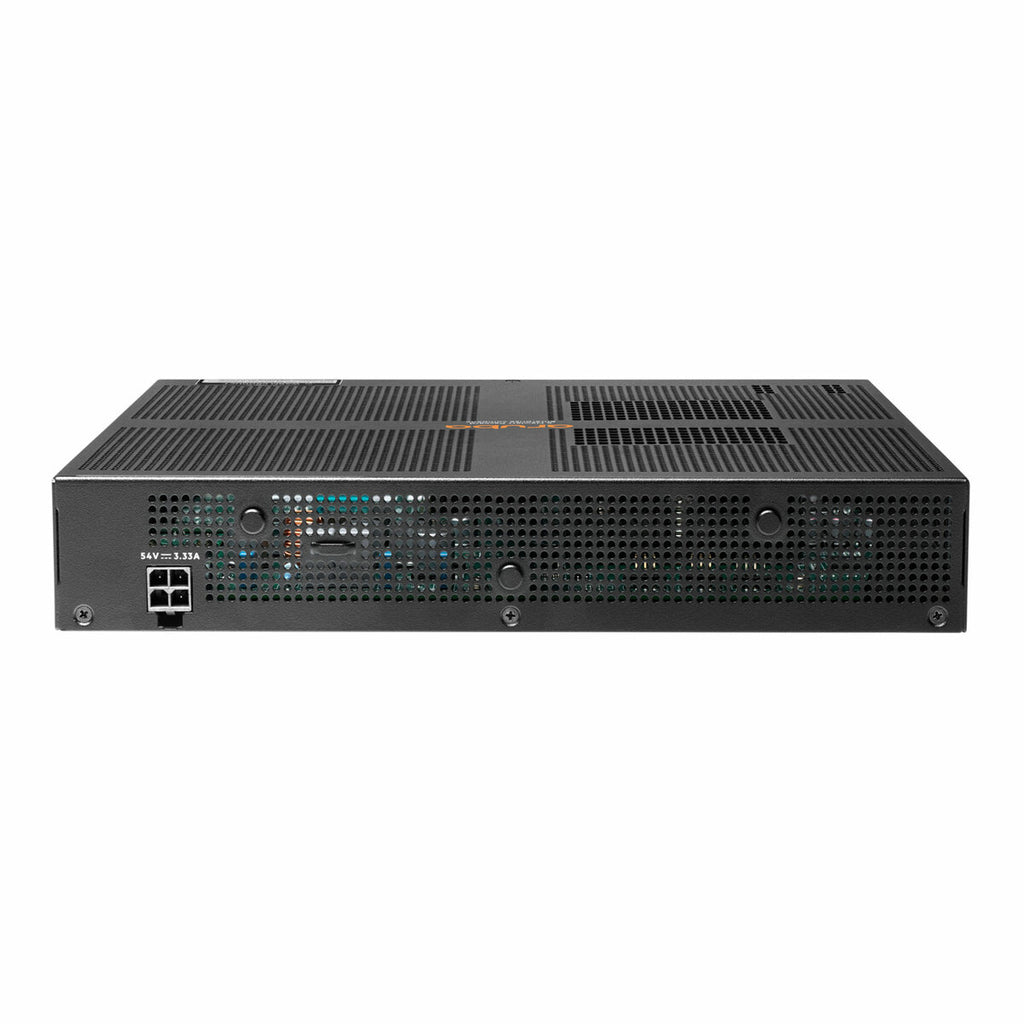

The HPE Aruba Networking 2930F 8G PoE+ 2SFP+ Switch is a powerful, Layer 3 managed switch built for enterprise edge, SMB, and branch office networks. Designed with simplicity, performance, and mobility in mind, this compact rack-mountable switch features 8 PoE+ Gigabit ports and 2 SFP+ uplinks for high-speed network extension.
With integrated support for Aruba Central, ClearPass, and AirWave, the 2930F series streamlines deployment and management while providing robust Layer 3 capabilities such as RIP and Access OSPF routing. Its Virtual Switching Framework (VSF) enables up to 8-member stacking for scale and operational efficiency. With up to 125W of PoE+ power, this switch is ideal for powering access points, IP phones, and IoT devices.
| Feature | Specification |
|---|---|
| Product Code | JL258A#B2B |
| Form Factor | Rack-mountable |
| Switch Type | Layer 3, Managed |
| Ports | 8 x 10/100/1000 PoE+ RJ-452 x SFP+ (1/10 GbE) uplinks |
| PoE Power Budget | 125W |
| Switching Capacity | 56 Gbps |
| Throughput | Up to 41.7 Mpps |
| Latency | < 3.8 µs (1Gbps)< 1.6 µs (10Gbps) |
| Processor | Dual Core ARM Cortex A9 @ 1016 MHz |
| Memory | 1 GB DDR3 SDRAM4 GB eMMC12.38 MB Packet Buffer |
| Management Tools | Aruba Central (cloud)AirWaveCLIWeb GUISNMPIMC |
| Input Voltage | 90 - 264 VAC |
| Max Power Consumption | 155W |
| Heat Dissipation | 58.6 BTU/hr |
| Stacking Support | Up to 8 switches (via Virtual Switching Framework - VSF) |
| Security Features | 802.1X, MAC Authentication, Web Auth, RADIUS/TACACS+, SSL, Port Security |
| Routing Support | Static, RIP, Access OSPF |
