Description

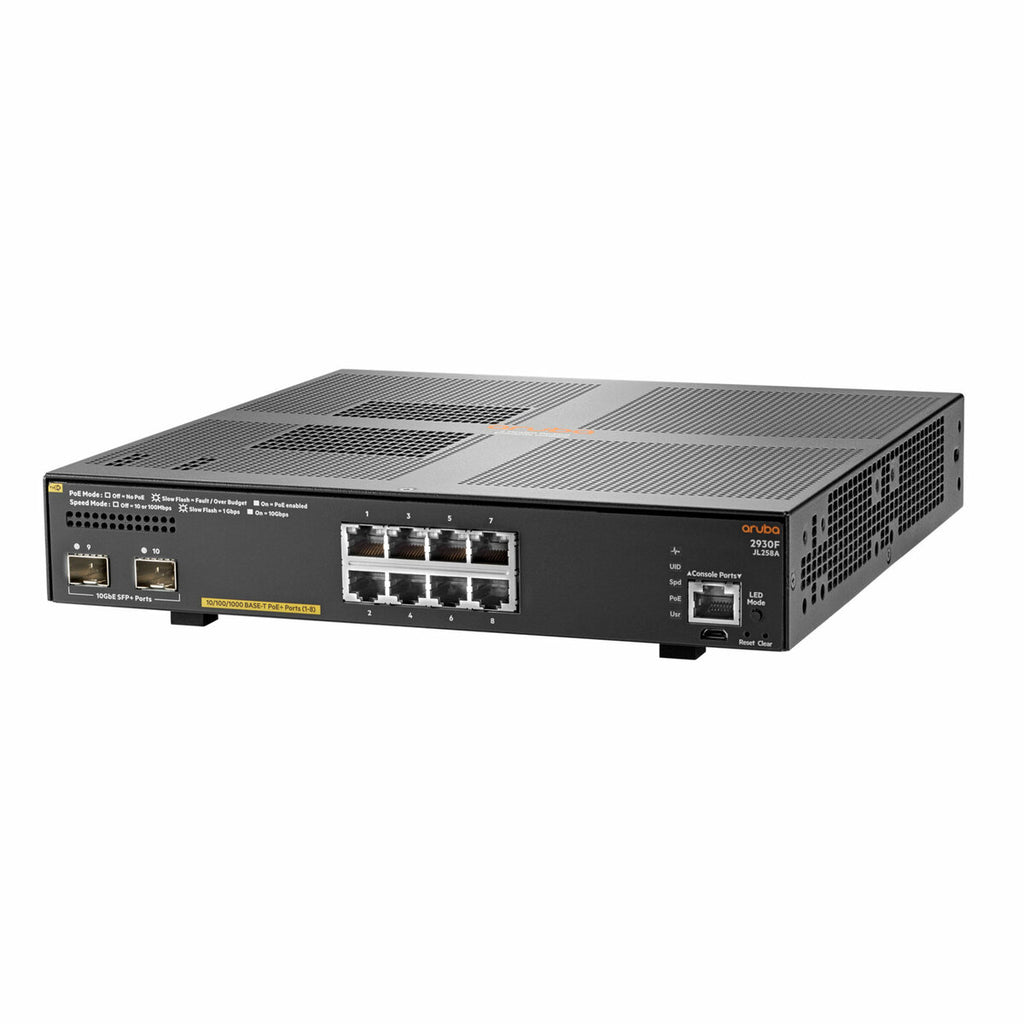

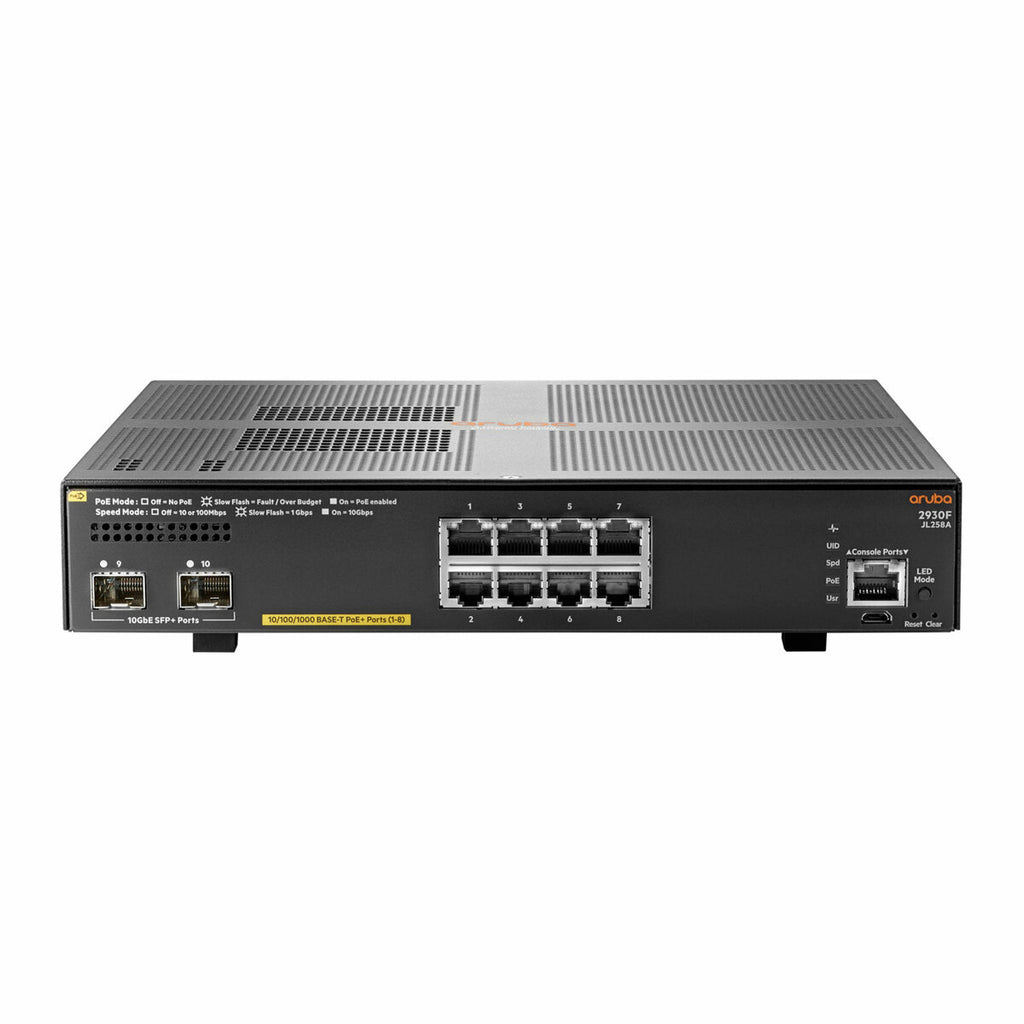

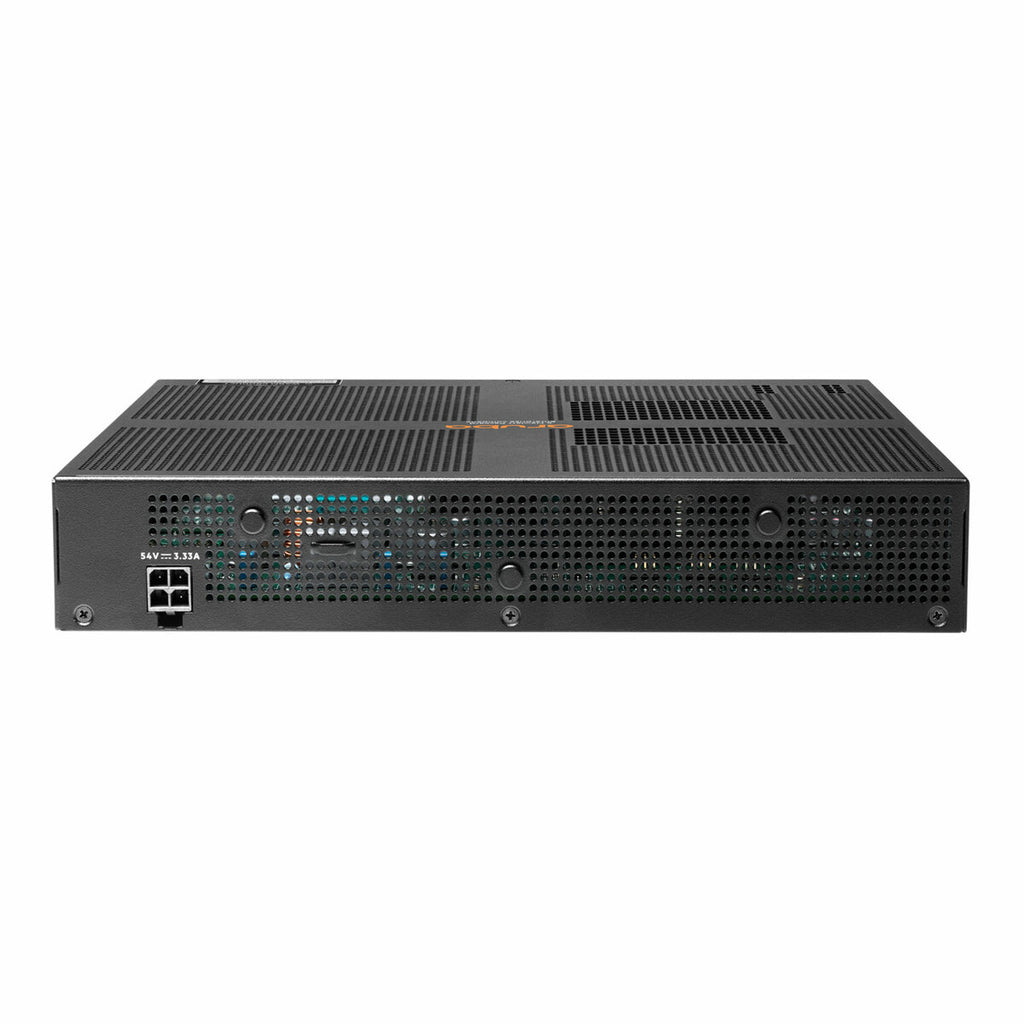

The HPE Aruba Networking 2930F 8G PoE+ 2SFP+ Switch (JL258A#ABA) is a high-performance, cost-effective Layer 3 switch designed for enterprise edge, SMB, and branch office networks. This managed switch features 8 Gigabit Ethernet PoE+ ports and 2 dual-speed SFP+ uplink ports, supporting both 1GbE and 10GbE connections. Built for the digital workplace, it integrates seamlessly with Aruba’s cloud-based and on-premises network management solutions.
Equipped with a powerful ProVision ASIC, Virtual Switching Framework (VSF), and advanced security, the 2930F enables simplified deployment, enhanced QoS, and robust performance—all without requiring additional licensing. It delivers up to 125W of PoE+ power, ideal for powering access points, IP phones, and surveillance systems.
Whether you're scaling your access layer or optimizing for mobile-first deployments, the 2930F 8G PoE+ switch ensures performance, agility, and secure manageability at the edge.
| Specification | Details |
|---|---|
| Product Number | JL258A#ABA |
| Switch Type | Layer 3 Managed Switch |
| Ports | 8 x 10/100/1000 PoE+ RJ-45, 2 x 1/10GbE SFP+ uplinks |
| Switching Capacity | 56 Gbps |
| Throughput | Up to 41.7 Mpps |
| Latency | < 3.8 µs (1GbE), < 1.6 µs (10GbE) |
| PoE Power Budget | 125W PoE+ |
| Processor | Dual Core ARM Cortex A9 @ 1016 MHz |
| Memory | 1 GB DDR3 SDRAM, 4 GB eMMC |
| Packet Buffer Size | 12.38 MB (4.5 MB Ingress / 7.875 MB Egress) |
| Management Options | CLI, Web GUI, SNMP, Telnet, AirWave, Aruba Central, IMC |
| Stacking Support | Up to 8 switches via Virtual Switching Framework (VSF) |
| Input Voltage | 90 - 264 VAC |
| Max Power Consumption | 155W |
| Heat Dissipation | 58.6 BTU/hr |
| Mounting | Rack-mountable |
