Description

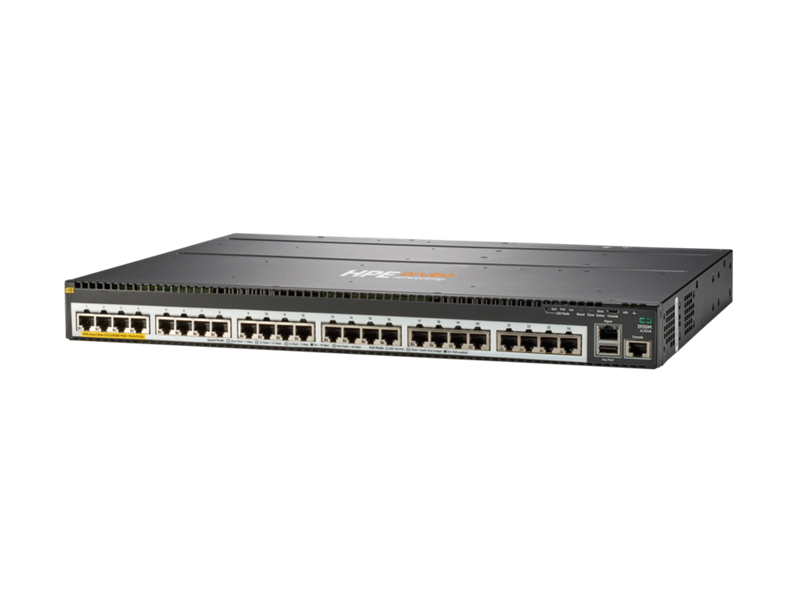

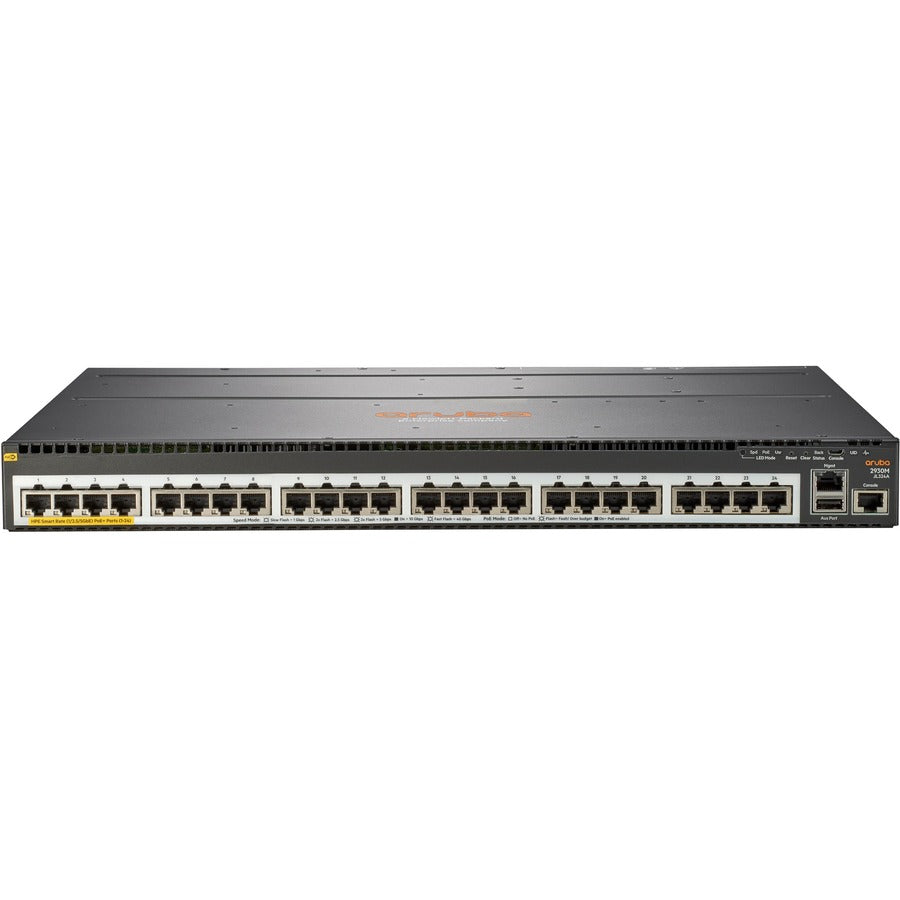

The HPE Aruba Networking 2930M 24-Port Smart Rate PoE+ Switch (JL324A) is a high-performance, stackable Layer 3 access switch designed for the modern digital workplace. With 24 Smart Rate 802.3bz ports supporting 1/2.5/5GBASE-T and up to 60W PoE+ per port, this switch is ideal for powering advanced Wi-Fi access points and IoT deployments over existing cabling. It supports modular stacking, uplinks, and redundant power for scalable, resilient networks. Integrated with HPE Aruba Central, ClearPass, and AirWave, the 2930M ensures simplified, secure management across wired and wireless infrastructure.
| Specification | Details |
|---|---|
| Product Code | JL324A |
| Ports | 24 × 1/2.5/5GBASE-T PoE+ (802.3bz) RJ-45 ports |
| Uplink Slots | 1 × uplink module slot, 1 × stacking module slot |
| Layer Support | Layer 3 (Static, RIP, Access OSPF), ACLs, IPv6 |
| Switching Capacity | 320 Gbps |
| Throughput | Up to 112 Mpps |
| PoE Power Budget | Up to 860W (with optional JL087A PSU) |
| PoE Standard | IEEE 802.3af/at; up to 60W per port |
| Memory | 1 GB DDR3 SDRAM, 4 GB eMMC |
| Processor | Dual-Core ARM Cortex A9 @ 1016 MHz |
| Packet Buffer | 12.38 MB total (4.5 MB ingress / 7.785 MB egress) |
| Latency | <3.1 µs @ 1G; <3.4 µs @ 10G |
| Power Supply Compatibility | JL086A (513W), JL087A (873W) - hot-swappable, redundant |
| Input Voltage | 100–127 / 200–240 VAC |
| Management Options | CLI, Web GUI, SNMP, AirWave, Aruba Central, IMC |
| Dimensions (H × W × D) | 4.39 × 44.25 × 32.43 cm |
| Weight | 4.50 kg |
| Mounting | Rack-mountable (1U) |
| Ideal Use Case | Enterprise edge, SMB, branch networks with high-performance Wi-Fi needs |
