Description

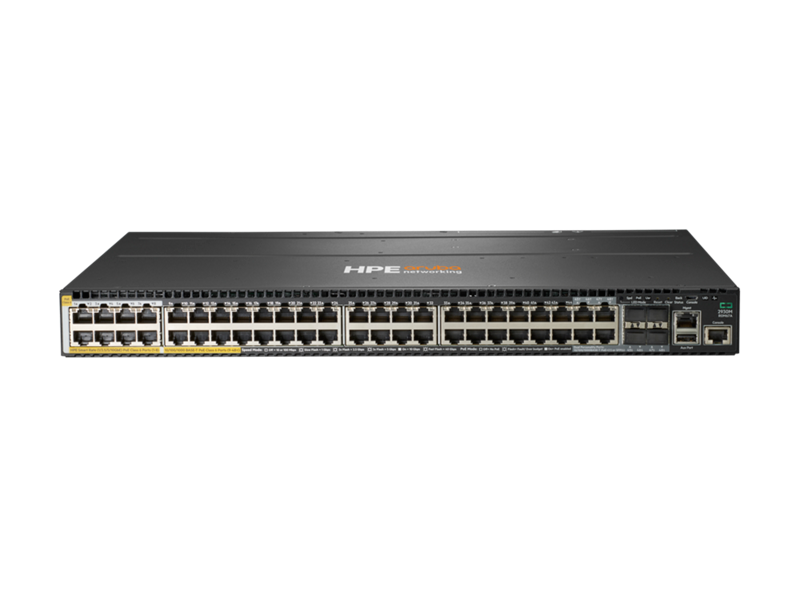

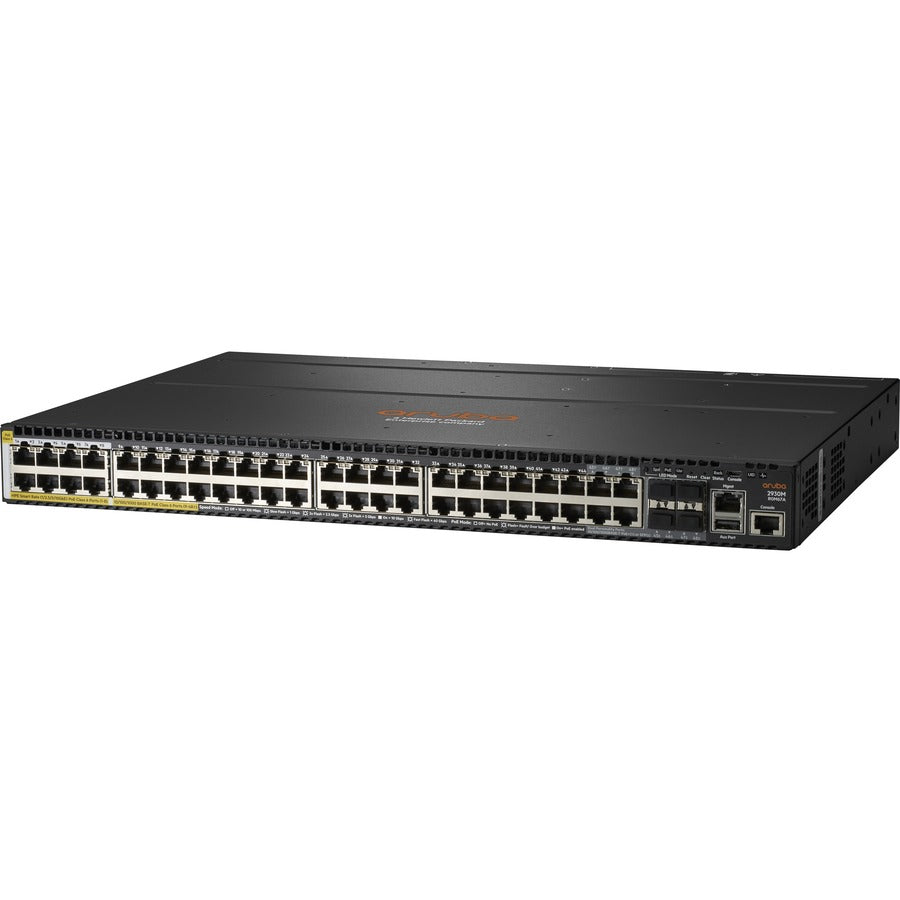

The HPE Aruba Networking 2930M 40G 8-Port Smart Rate PoE+ Class 6 Switch (R0M67A) is a high-performance Layer 3 switch purpose-built for digital workplaces and modern enterprise edge environments. Designed to support high-speed wireless deployments, this switch features 8 HPE Smart Rate multi-gigabit PoE+ ports, 40 GbE uplink support, and modular stacking capabilities.
With robust Layer 3 features, including static, RIP, and OSPF routing, this switch enables secure, scalable connectivity for mobile-first networks. It also supports advanced management tools such as Aruba Central, ClearPass Policy Manager, and AirWave for unified wired and wireless network administration. Its modular design allows for up to 1440W of PoE and redundant power options, ensuring performance and resiliency at the edge.
Ideal for organizations deploying next-gen Wi-Fi access points, IP phones, and IoT devices, the R0M67A switch offers automation, security, and power in a compact 1U form factor.
| Specification | Details |
|---|---|
| Model Number | R0M67A |
| Form Factor | 1U rack-mountable |
| Switching Capacity | 320 Gbps |
| Throughput | Up to 112 Mpps |
| Latency | < 3.4 µs (10 Gbps), < 3.1 µs (1 Gbps) |
| Ports | 36 x RJ-45 10/100/1000 PoE+, 4 x Dual Personality, 8 x Smart Rate (1/2.5/5/10GBASE-T) |
| Expansion Slots | 1 x uplink module slot, 1 x stacking module slot |
| PoE Standard | IEEE 802.3bt Class 6, up to 60W per port |
| Max PoE Budget | Up to 1440W (with dual power supplies) |
| Power Supply Options | JL086A (495W), JL087A (855W) – sold separately |
| Memory | 1 GB DDR3 SDRAM, 4 GB eMMC |
| Packet Buffer | 12.38 MB total (Ingress: 4.5 MB, Egress: 7.785 MB) |
| Processor | Dual-Core ARM Cortex A9 @ 1016 MHz |
| Management | Web GUI, CLI, SNMP, Aruba Central, AirWave, ClearPass, REST APIs |
| Security Features | 802.1X, MAC/Web Auth, RADIUS/TACACS+, Dynamic Segmentation, ACLs |
| Dimensions (W x D x H) | 44.25 x 32.43 x 4.39 cm |
| Weight | 4.49 kg |
| Heat Dissipation | 145 BTU/hr |
| Operating Voltage | 100–240 VAC (varies by PSU) |
