Description

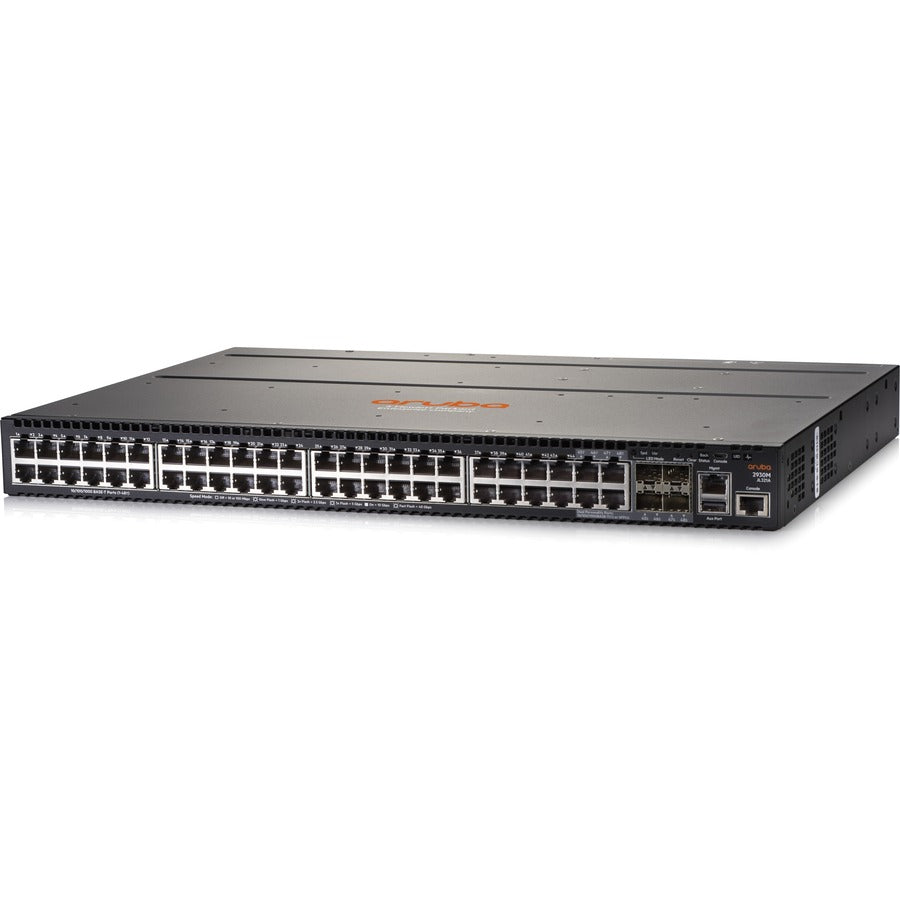

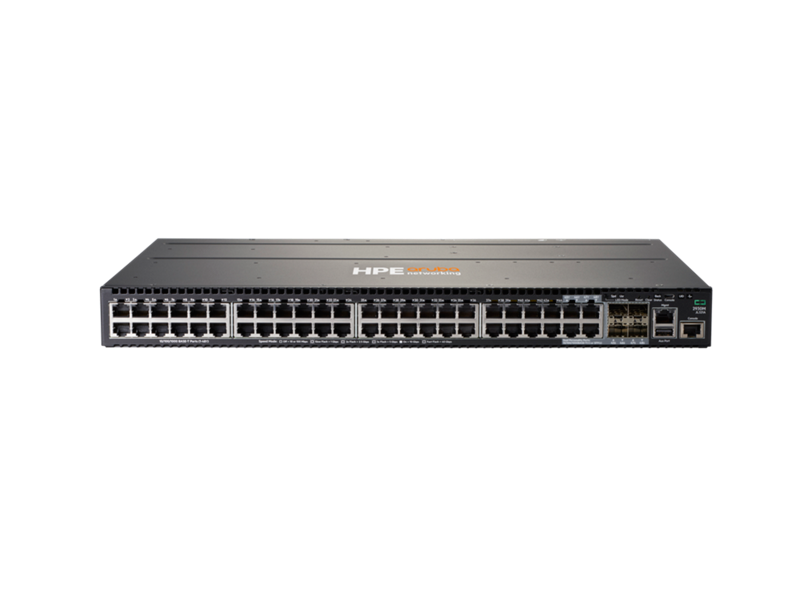

The HPE Aruba Networking 2930M 48G 1-slot Switch is a high-performance, Layer 3 managed switch designed for modern digital workplaces. With 48 Gigabit ports including four dual-personality SFP ports, it supports flexible uplinks and stacking for scalable enterprise, SMB, or branch deployments. Featuring advanced Layer 3 routing, security, dynamic segmentation, and cloud-ready management through HPE Aruba Networking Central, it’s ideal for secure, unified network access and seamless wireless integration.
Whether you're supporting high-speed access points or scaling power via modular PSUs and up to 10-chassis stacking, the JL321A delivers low latency, energy efficiency, and powerful edge performance.
| Specification | Details |
|---|---|
| Product Number | JL321A |
| Form Factor | 1U rack-mountable |
| Ports | 44 × RJ-45 10/100/1000 + 4 × Dual-Personality 10/100/1000 or SFP |
| Uplink/Expansion Slots | 1 × Uplink Module Slot, 1 × Stacking Module Slot |
| Layer Support | Layer 3 (Static, RIP, Access OSPF) |
| Performance | Switching Capacity: 176 GbpsThroughput: up to 112 Mpps |
| Latency | < 3.1 µs @ 1 Gbps< 3.4 µs @ 10 Gbps |
| PoE Power Budget | 78W (Max), scalable up to 1440W with additional PSUs |
| Power Supply Options | JL085A (X371) 250W PSU (ordered separately) |
| Memory | 1 GB DDR3 SDRAM4 GB eMMC12.38 MB Packet Buffer |
| Management | HPE Aruba Networking Central, AirWave, CLI, SNMP, Web UI, IMC |
| Security Features | 802.1X, MAC/Web Auth, RADIUS/TACACS+, ACLs, SSL, Port Security |
| Advanced Features | Dynamic Segmentation, sFlow, REST API, OpenFlow 1.0/1.3 |
| Power Input | 100–240 VAC |
| Power Consumption | 78W (Max) |
| Heat Dissipation | 185 BTU/hr (194 kJ/hr) |
| Dimensions (H×W×D) | 4.39 × 44.25 × 32.43 cm |
| Weight | 4.60 kg |
