Description

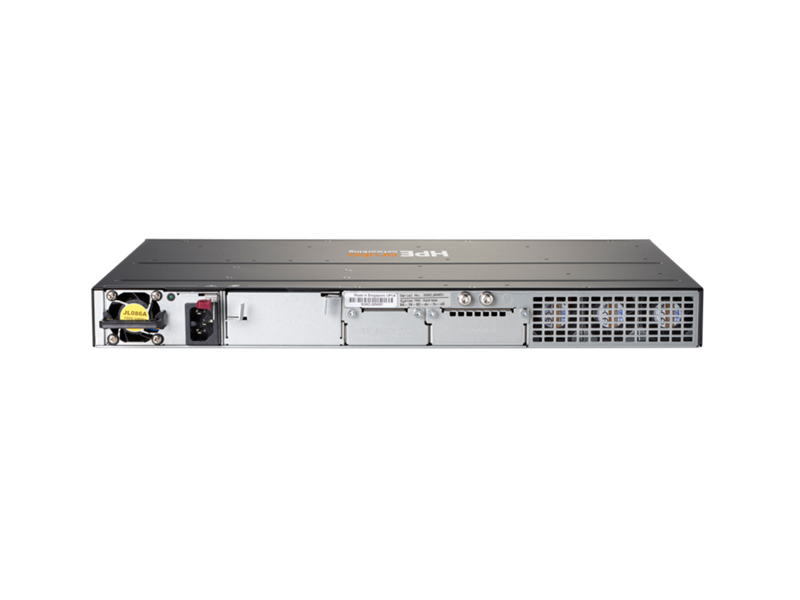

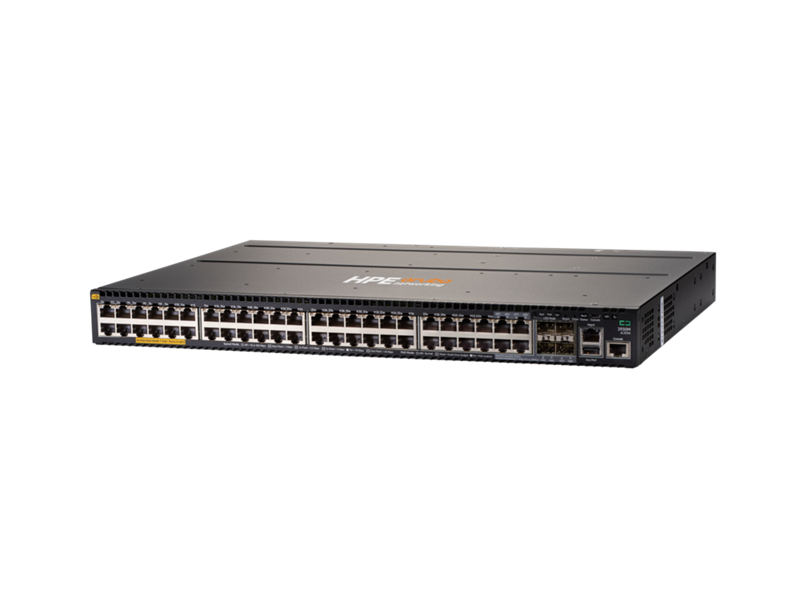

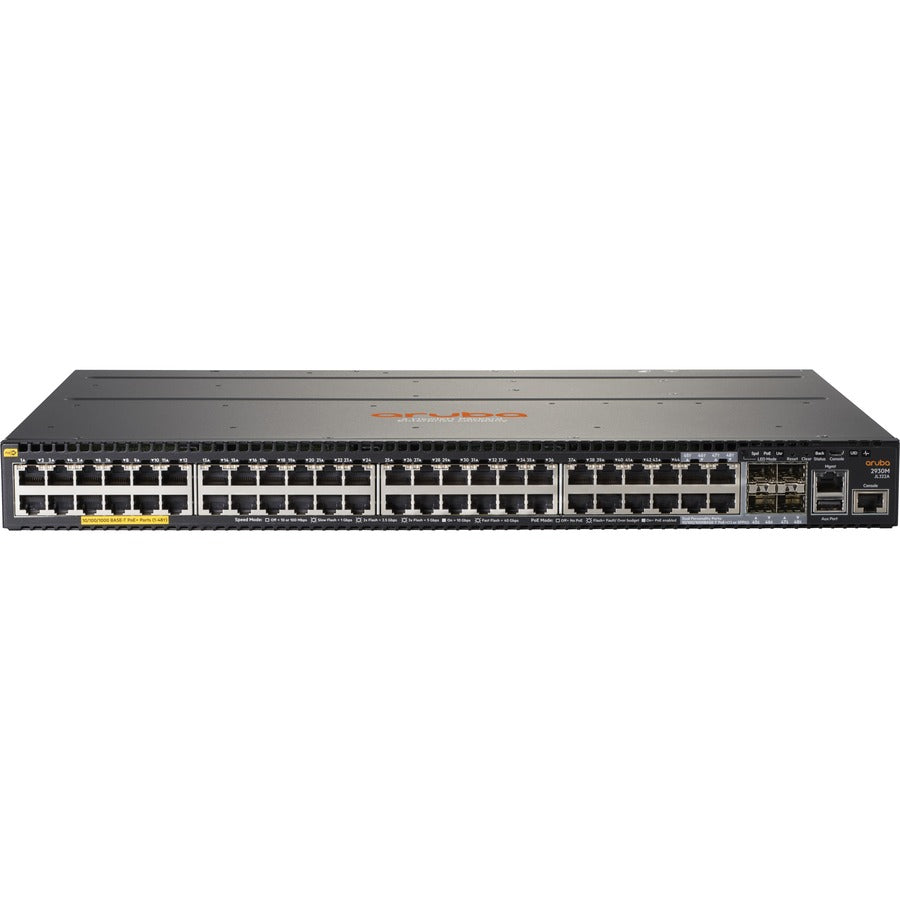

The HPE Aruba Networking 2930M 48G PoE+ 1-slot Switch is a high-performance Layer 3 access switch designed for digital workplaces and enterprise edge networks. Featuring 48 Gigabit Ethernet ports with PoE+ support, this modular switch supports up to 1440W of PoE power and includes dual-purpose SFP uplinks, stacking options, and a 1-slot modular uplink bay. Integrated with advanced management tools like Aruba Central and AirWave, it delivers simplified deployment, security, and scalability. Ideal for campus and branch environments requiring performance, flexibility, and secure wired and wireless integration.
| Specification | Details |
|---|---|
| Product Number | JL322A |
| Form Factor | 1U Rack Mountable |
| Ports | 44 × RJ-45 10/100/1000 PoE+ ports4 × Dual-personality 10/100/1000 or SFP |
| Uplink/Stacking Slots | 1 × Uplink module slot1 × Stacking module slot |
| Switching Capacity | 176 Gbps |
| Throughput | Up to 112 Mpps |
| Latency | < 3.1 µs (1G), < 3.4 µs (10G) |
| PoE Power Budget | Up to 1440W (using JL087A PSUs) |
| Supported PSU Options | JL086A (470W), JL087A (860W) |
| Heat Dissipation | 355 BTU/hr (375 kJ/hr) |
| Input Voltage | 100–127 / 200–240 VAC |
| Memory | 1 GB DDR3 SDRAM, 4 GB eMMC |
| Packet Buffer | 12.38 MB total (4.5 MB ingress, 7.785 MB egress) |
| Processor | Dual Core ARM Cortex A9 @ 1016 MHz |
| Management Interfaces | CLI, Web GUI, SNMP, FTP, Telnet, AirWave, Aruba Central, IMC |
| Out-of-Band Management | RS-232C or Micro USB |
| Advanced Features | Layer 3 routing (Static, RIP, OSPF), ACLs, QoS, Dynamic Segmentation |
| Security | 802.1X, MAC/Web Authentication, RADIUS, TACACS+, port security |
| Dimensions (H x W x D) | 4.39 x 44.25 x 32.43 cm (1.73 x 17.42 x 12.77 in) |
| Weight | 4.65 kg (10.25 lbs) |
| Warranty | Limited Lifetime Warranty |
