Description
Flexible, Resilient, and Scalable Layer 3 Core Switch for the Modern Digital Campus

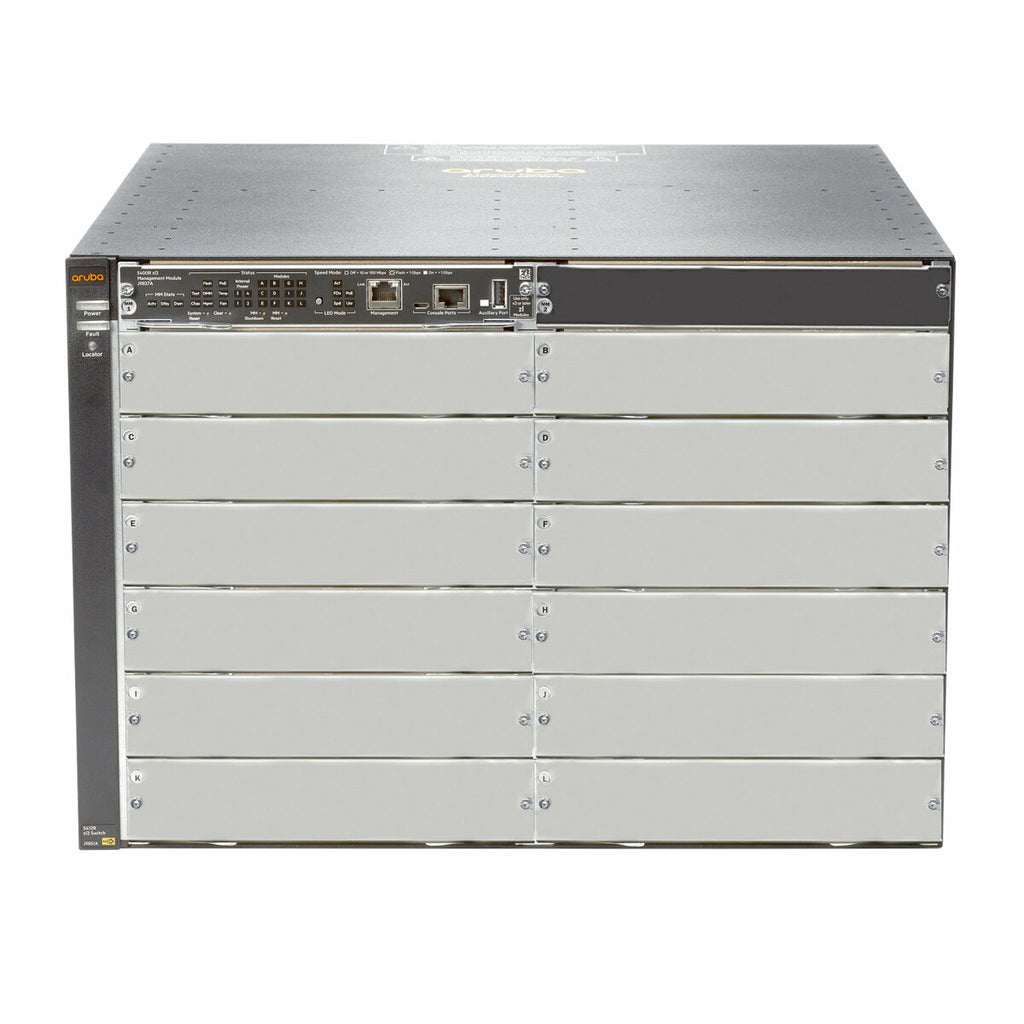

The HPE Aruba Networking 5412R zl2 Switch delivers enterprise-grade resiliency, performance, and flexibility for mobile-first, high-bandwidth networks. Designed for scalability, it features 12 open module slots that support a mix of multi-gigabit Ethernet, SFP/SFP+, and 40GbE ports, enabling up to 288 ports of PoE+ or 96 line-rate 10GbE ports.
Built on the sixth-generation HPE ProVision ASIC, this Layer 3 modular switch provides a powerful 2 Tbps switching fabric, low latency, and robust support for high-availability protocols like VSF stacking and VRRP. It enables secure, policy-based automation via REST APIs and integrates seamlessly with Aruba ClearPass Policy Manager, AirWave, and Aruba Central for unified wired and wireless management.
This switch is ideal for large enterprise edge or aggregation deployments requiring fast software upgrades, seamless redundancy, advanced security features, and cloud-based visibility — all license-free.
| Feature | Details |
|---|---|
| Model Number | J9822A#B8X |
| Form Factor | 12-slot Modular Chassis |
| Switch Type | Layer 3 Modular Enterprise Switch |
| Port Capacity | Up to 288 x 10/100/1000BASE-T or 96 x 10GbE or 24 x 40GbE |
| Switch Fabric Capacity | 2.03 Tbps |
| Throughput | 1,142.8 Mpps |
| Latency | <2.8 μs (1G), <1.8 μs (10G), <1.5 μs (40G) |
| Stacking Support | Virtual Switching Framework (VSF) |
| Routing Capabilities | RIP, OSPF, BGP, VRRP, Policy-Based Routing |
| Security | MACsec (select modules), DHCPv6 Protection, ACLs, RADIUS, SSH, Tunnel Node |
| Management Tools | Aruba Central, AirWave, ClearPass, CLI, Web GUI, SNMP |
| PoE+ Support | Up to 288 PoE+ ports with appropriate power supplies |
| Power Supply Slots | 4 (2 required, ordered separately) |
| Input Voltage | 100–127 / 200–240 VAC (dependent on PSU) |
| Monitoring & Automation | REST API, RMON, XRMON, sFlow |
| Software Licensing | No license required for advanced Layer 3 features |
| Weight / Dimensions | Varies by configuration |
