Description

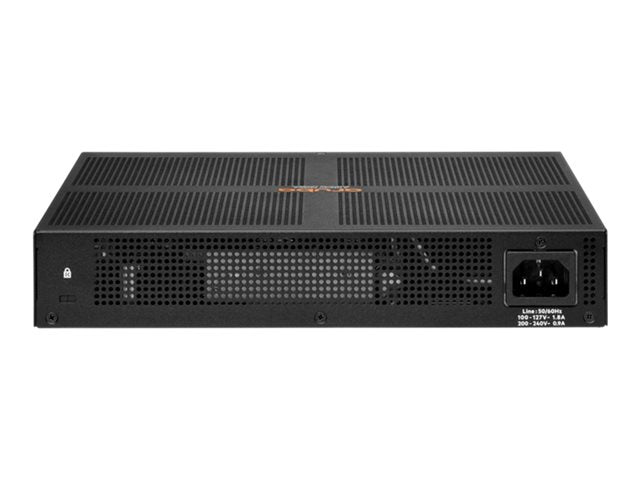

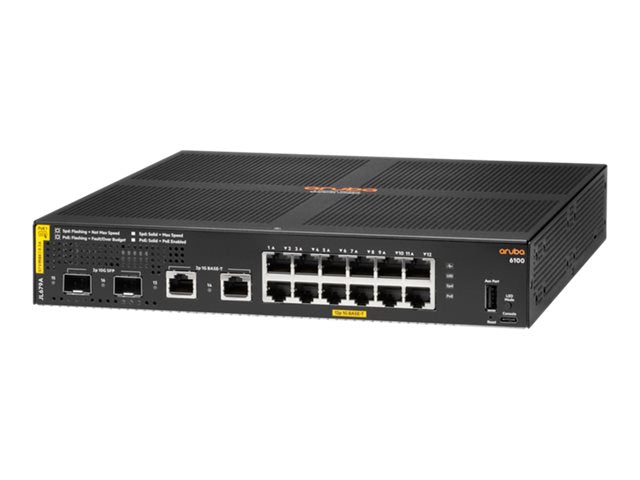

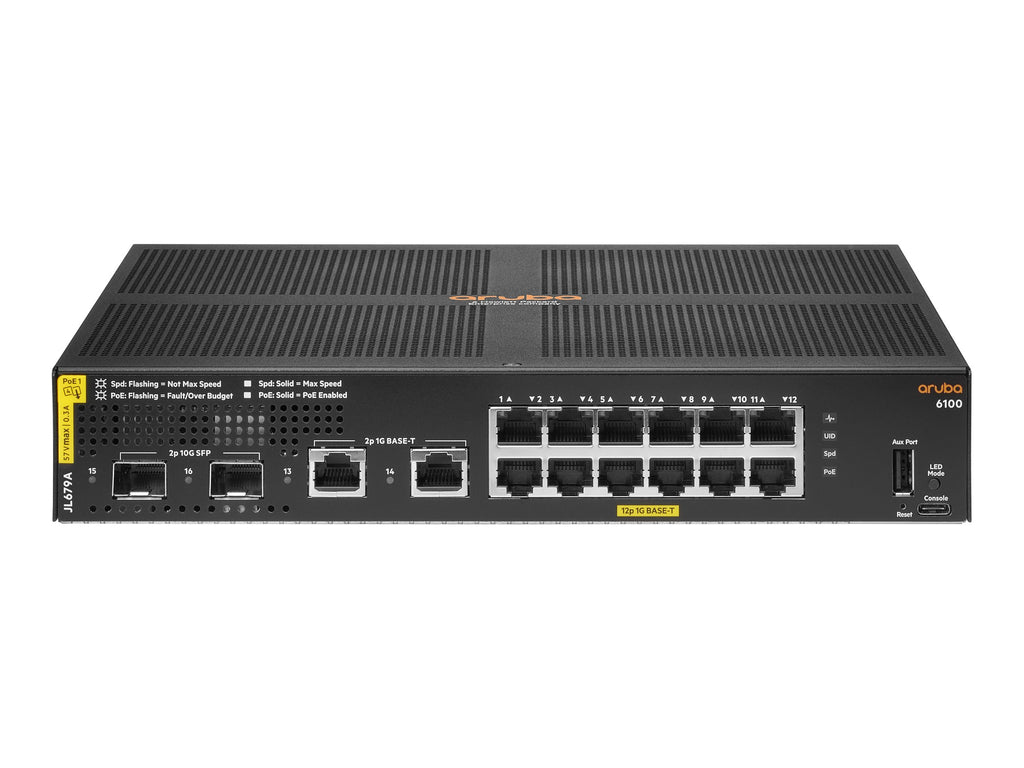

The HPE Aruba Networking CX 6100 12G Class4 PoE 2G/2SFP+ 139W Switch is a fully managed Layer 2 switch designed for branch offices, SMBs, and enterprise edge environments. This compact and fanless 12-port switch supports 139W of IEEE 802.3at Class 4 PoE+, perfect for powering access points, IP cameras, and IoT devices.
It includes 12 x 10/100/1000Base-T PoE+ ports, 2 x 1000Base-T uplinks, and 2 x 1/10GbE SFP+ ports, providing flexible high-speed connectivity. Built on Aruba's AOS-CX operating system, it offers enterprise-grade features like static routing, ACLs, robust QoS, sFlow, and REST APIs for software-defined networking.
Ideal for silent deployments in open workspaces, this switch simplifies IT operations with centralized management via Aruba Central, intuitive web GUI, or industry-standard CLI. Backed by a limited lifetime warranty, the CX 6100 is a reliable, future-ready solution for modern wired access.
| Specification | Details |
|---|---|
| Model Number | JL679A#B2B |
| Product Name | HPE Aruba Networking CX 6100 12G Class4 PoE 2G/2SFP+ 139W Switch |
| Ports | 12 x 10/100/1000 (PoE+) + 2 x 1000Base-T + 2 x 1/10G SFP+ |
| PoE Power Budget | 139W (Class 4 PoE - 30W per port max) |
| Switching Capacity | 68 Gbps |
| Throughput | 45.1 Mpps |
| Latency | 2.3 ΞΌs (1Gbps), 2.6 ΞΌs (10Gbps) |
| Form Factor | 1U Rack-mountable |
| Power Supply | Internal PSU (165W provided) |
| Operating Temperature | 0Β°C to 45Β°C |
| Management Options | Aruba Central, Web GUI, CLI, REST API |
| Compliance | IEEE 802.3, 802.3at, 802.1Q, FCC Class A, UL 60950, etc. |
| MAC Address Table | 8192 entries |
| Dimensions (W x D x H) | 25.4 cm x 25.5 cm x 4.39 cm |
| Weight | 2.78 kg |
| Memory | 4 GB RAM, 16 GB Flash |
| Processor | ARM A9 1.016 GHz |
| Warranty | Limited Lifetime Warranty |
| Features | Fanless, sFlow, LACP, VLAN, QoS, ACLs, Energy Efficient Ethernet |
