Description

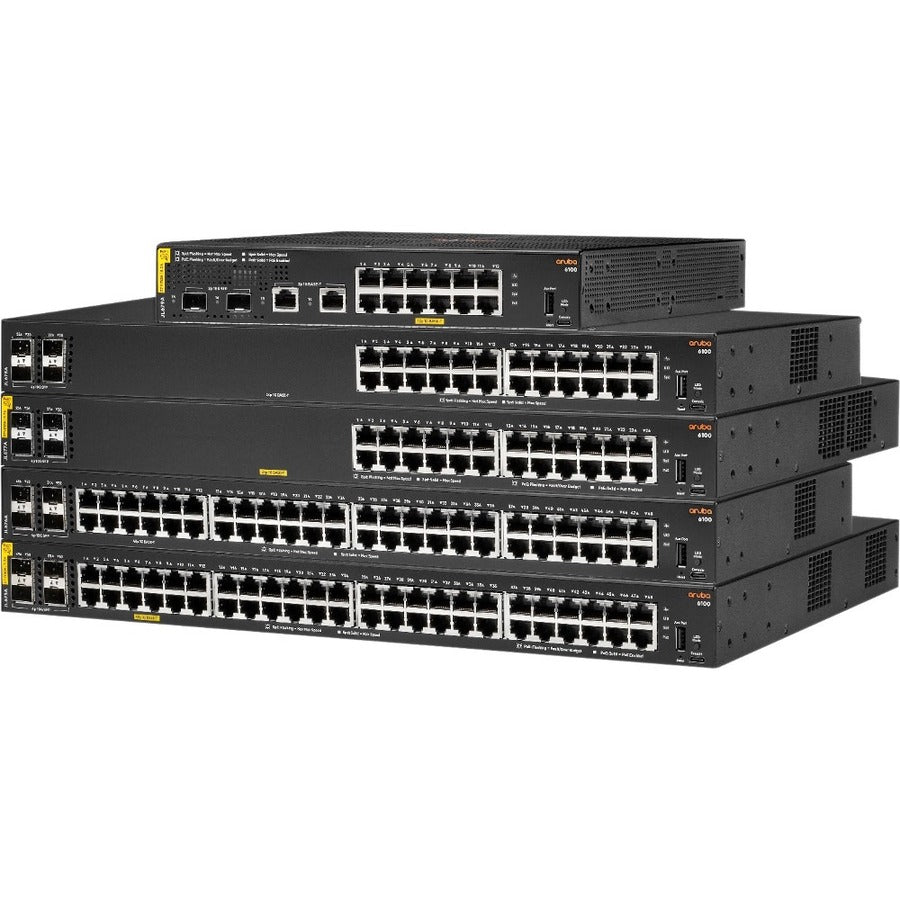

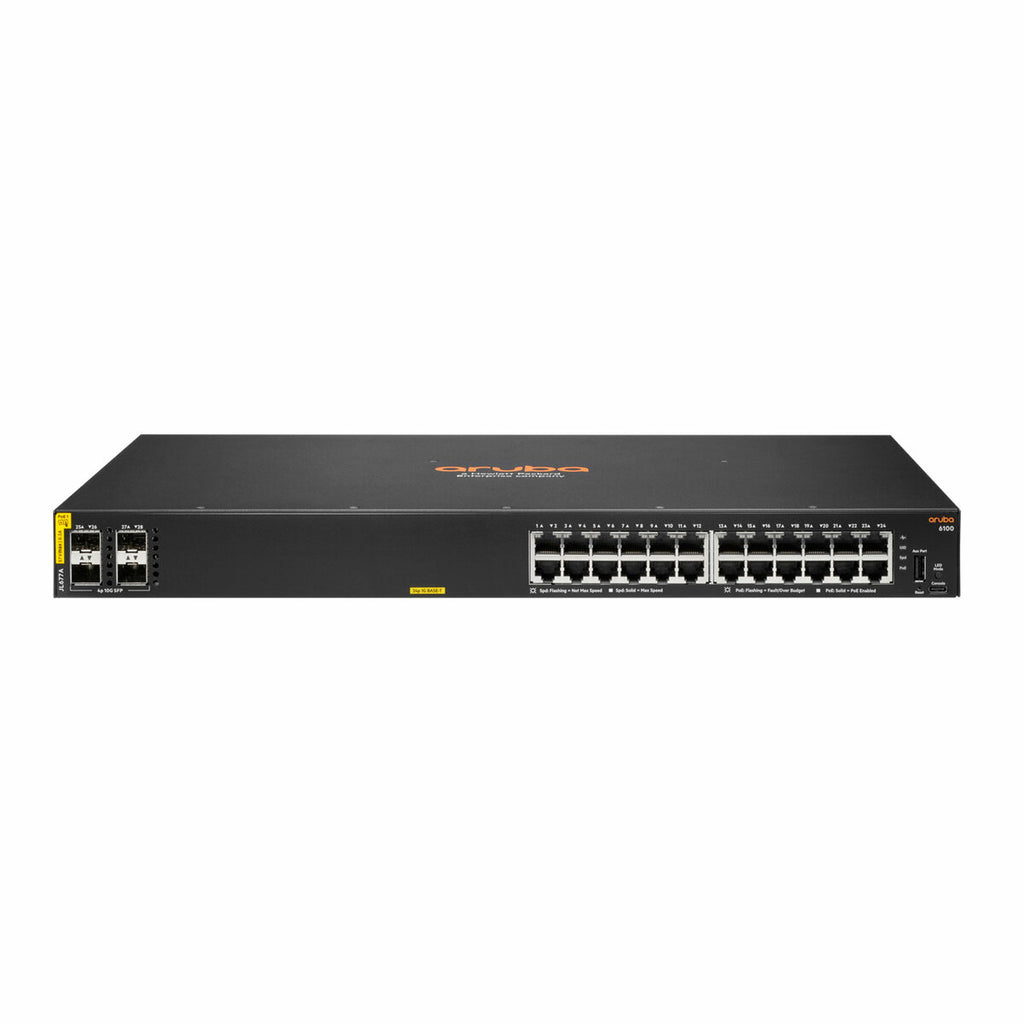

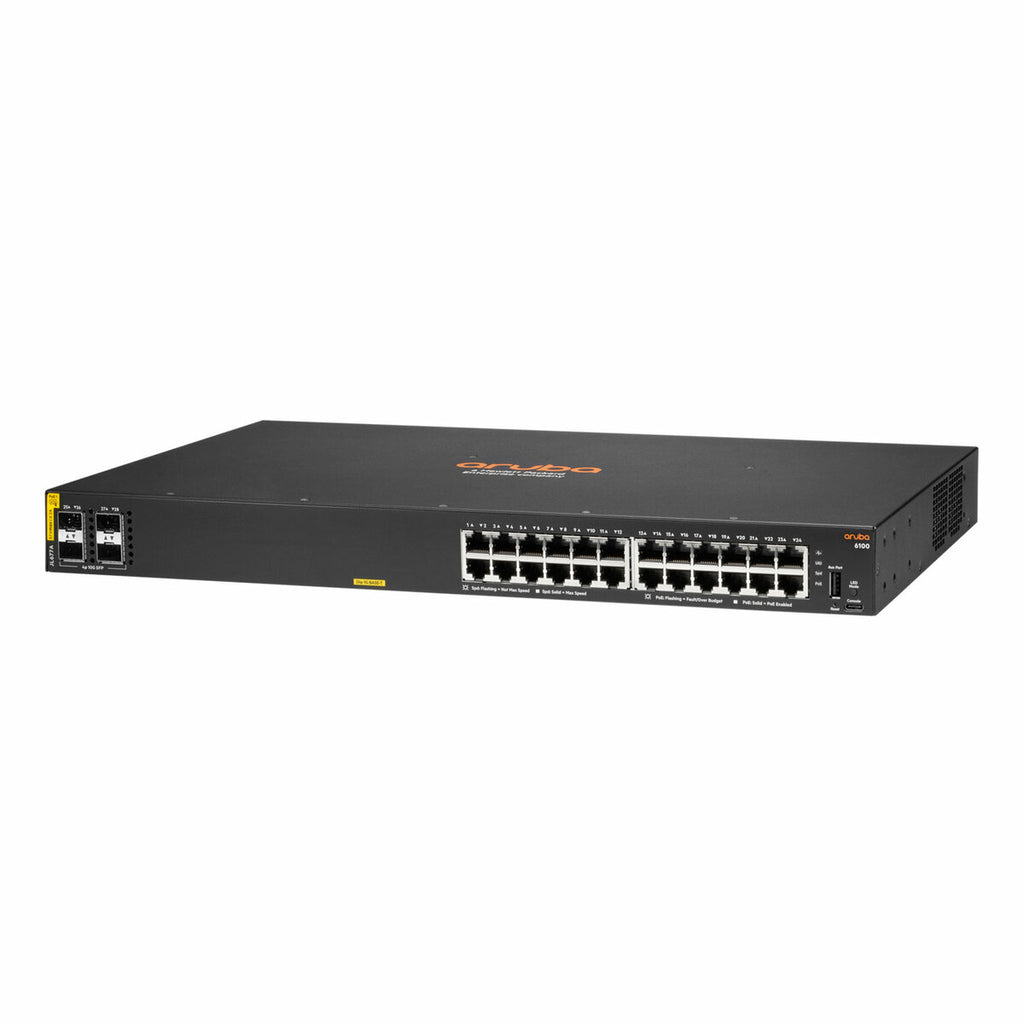

The HPE Aruba Networking CX 6100 Switch Series is designed for reliable, secure, and simple wired access in enterprise branch offices, SMBs, and mid-market networks. The JL677A#ABA model features 24x 1G PoE+ ports and 4x 1/10G SFP+ uplinks, delivering high-performance Layer 2 switching with 370W of Class 4 PoE power—perfect for powering IP cameras, access points, and IoT devices.
Built on Aruba’s programmable AOS-CX operating system and purpose-built ASIC architecture, the CX 6100 delivers a modern network experience with low latency, high throughput, and automated management. It supports static routing, robust QoS, sFlow, and IPv6, and integrates seamlessly with Aruba Central and other cloud-based tools.
Ideal for edge deployments, this switch offers rack-mountable design, side-to-side airflow, and enterprise-grade manageability—all without the burden of software licensing subscriptions.
| Category | Details |
|---|---|
| Model Number | JL677A#ABA |
| Product Type | Managed Layer 2 Gigabit Ethernet Switch |
| Ports | 24 x 10/100/1000BASE-T (PoE+) 4 x 1G/10G SFP+ uplink ports |
| PoE Power Budget | 370W IEEE 802.3at Class 4 PoE (PoE+) |
| Airflow | Side-to-side airflow |
| Switching Capacity | 128 Gbps |
| Throughput | 95.2 Mpps |
| Latency | 1 Gbps: 1.5 µs 10 Gbps: 1.8 µs |
| Memory | 4 GB DDR3 |
| Storage | 16 GB eMMC |
| Processor | Dual-Core ARM Cortex A9 @ 1016 MHz |
| Input Voltage | 100–127 VAC / 200–240 VAC |
| Power Consumption | Max 455W (with PoE), Max 32.7W (without PoE) |
| Form Factor | 1U Rack-mountable |
| Dimensions (WxDxH) | 17.4 x 10.56 x 1.73 in |
| Weight | 9.24 lbs |
| Software Features | AOS-CX OS, QoS, static routing, ACLs, sFlow, REST API, IPv6 |
| Management Options | Web GUI, CLI, Aruba Central, REST API, Multi-Edit Software |
| Fanless Design | No (this model includes fan with side-to-side airflow) |
| Warranty | Limited Lifetime Warranty (per HPE terms) |
