Description

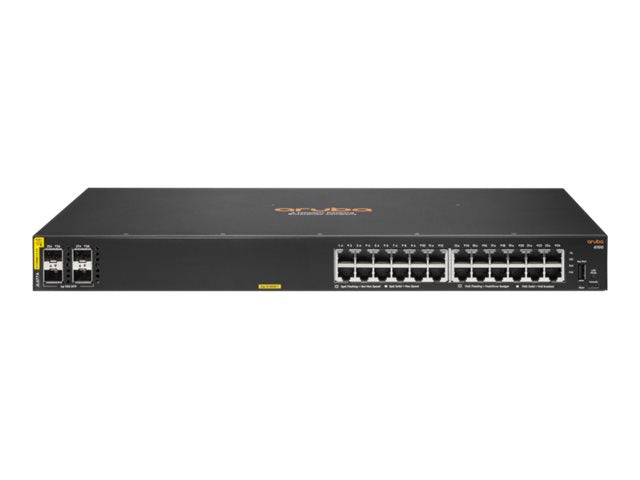

The HPE Aruba Networking CX 6100 24G Class4 PoE+ 4SFP+ 370W Switch is part of a modern, fully-managed Layer 2 switch series designed for entry-level access in branch offices, mid-market enterprises, and SMB networks. With 24 Gigabit Ethernet ports and four high-speed 1/10 GbE SFP+ uplinks, this switch delivers high-performance connectivity for demanding applications.
Ideal for supporting IoT, mobile, and cloud services, it provides 370W of IEEE 802.3at PoE+ power across all access ports—perfect for powering IP cameras, phones, and wireless APs. With a powerful Aruba ASIC and the AOS-CX operating system, it offers consistency, low latency, and simplified management using Aruba Central, Web GUI, CLI, or REST APIs.
The side-to-side airflow and rack-mountable 1U form factor ensure optimal deployment flexibility and cooling in enterprise environments.
| Specification | Details |
|---|---|
| Product Code | JL677A#ACC |
| Ports | 24 x 10/100/1000BASE-T, 4 x 1G/10G SFP+ |
| PoE Support | 370W total (IEEE 802.3at Class 4 PoE/PoE+) |
| Airflow | Side-to-side airflow |
| Mounting | Rack-mountable (1U) |
| Management | Fully managed (Web GUI, CLI, Aruba Central, REST APIs) |
| Switching Capacity | 128 Gbps |
| Throughput | 95.2 Mpps |
| Latency | 1.5 µs (1Gbps), 1.8 µs (10Gbps) |
| Processor | Dual-Core ARM Cortex A9 @ 1016 MHz |
| Memory | 4 GB DDR3, 16 GB eMMC |
| Power Consumption | 32.7W (no PoE), 455W (full PoE load) |
| Input Voltage | 100–127 VAC / 200–240 VAC |
| Dimensions (H x W x D) | 1.73 x 17.4 x 10.56 in (4.39 x 44.2 x 26.8 cm) |
| Weight | 9.24 lbs (4.19 kg) |
