Description
High-Performance Layer 3 Access Switch for Enterprise Edge

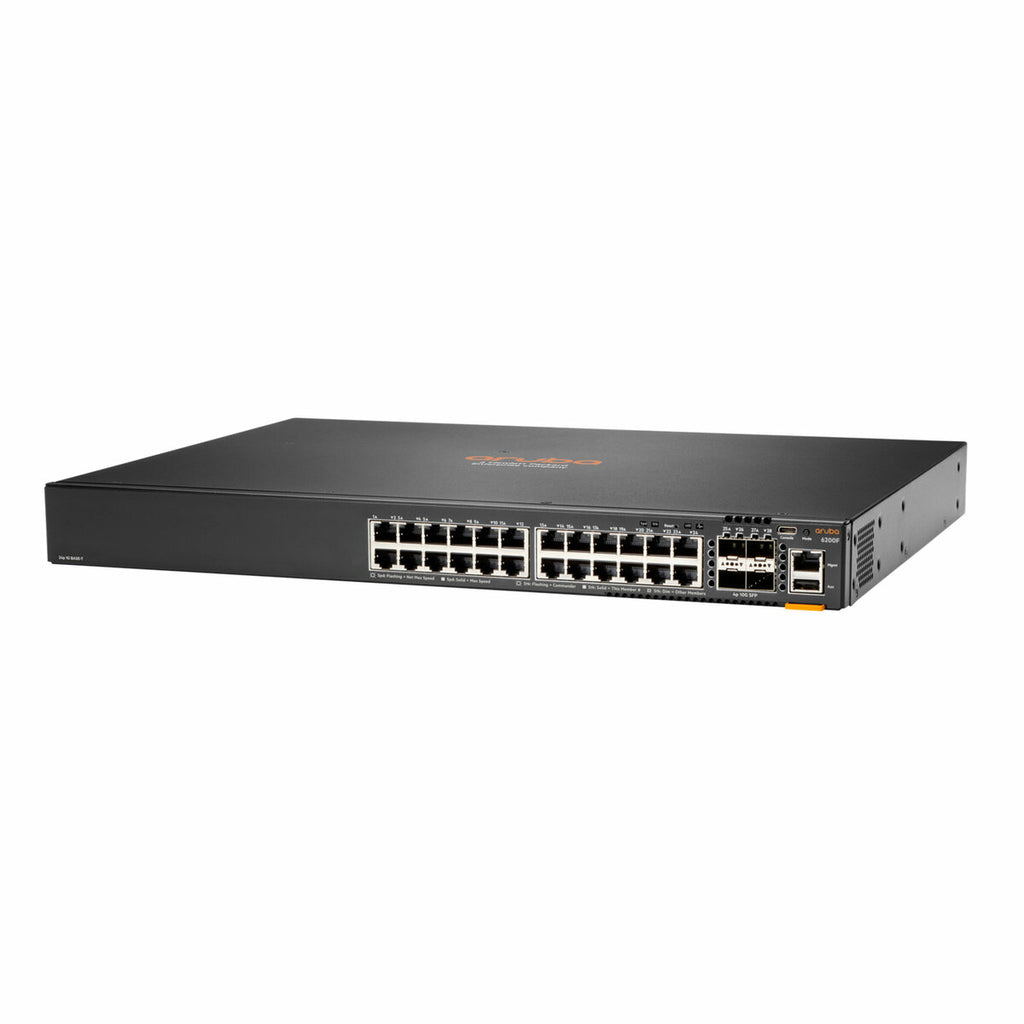

The HPE Aruba Networking CX 6200F 24G 4SFP+ Switch is part of the Aruba CX 6200 Series, designed to deliver secure, high-performance, and scalable Layer 3 access switching for enterprise branches, SMBs, and campus networks. Powered by the Aruba Gen7 ASIC architecture and managed through Aruba Central or CLI, this switch supports advanced automation, visibility, and telemetry with the Aruba Network Analytics Engine (NAE).
This fixed model includes 24 Gigabit Ethernet ports and 4 x 1/10GbE SFP+ uplink ports, making it ideal for wired access deployments with high-speed uplink needs. Front-plane VSF stacking support (up to 8 switches) ensures flexible scalability, while simplified deployment is made possible with the CX Mobile App.
It supports enterprise-class features including robust QoS, access control lists (ACLs), static and OSPF routing, Dynamic Segmentation, and advanced security. With a fanless design and compact form factor, the 6200F delivers quiet, efficient operation suitable for space-sensitive environments.
| Specification | Details |
|---|---|
| Model Number | JL724A#ABB |
| Ports | 24x 10/100/1000BASE-T, 4x 1/10GbE SFP+ uplink ports |
| Console Ports | 1x USB-C console, 1x USB-A host port, 1x OOBM, 1x Bluetooth (via adapter) |
| CPU & Memory | Quad Core ARM Cortex-A72 @ 1.8GHz, 8GB DDR4 RAM, 16GB eMMC |
| Latency | 1Gbps: 2.28 ΞΌs, 10Gbps: 1.46 ΞΌs |
| Throughput | Up to 95.2 Mpps |
| Switching Capacity | 128 Gbps |
| Stacking | Supports up to 8 members (front-plane VSF) |
| Power Supply | Fixed internal power supply (200W) |
| Input Voltage | 100Vβ120V / 200Vβ240V AC |
| Power Consumption | 59W (at 230V AC) |
| Form Factor | 1U Rack-mountable |
| Dimensions (W x D x H) | 17.4 x 12.9 x 1.73 in (44.2 x 32.8 x 4.4 cm) |
| Weight | 9.61 lbs (4.36 kg) |
