Description

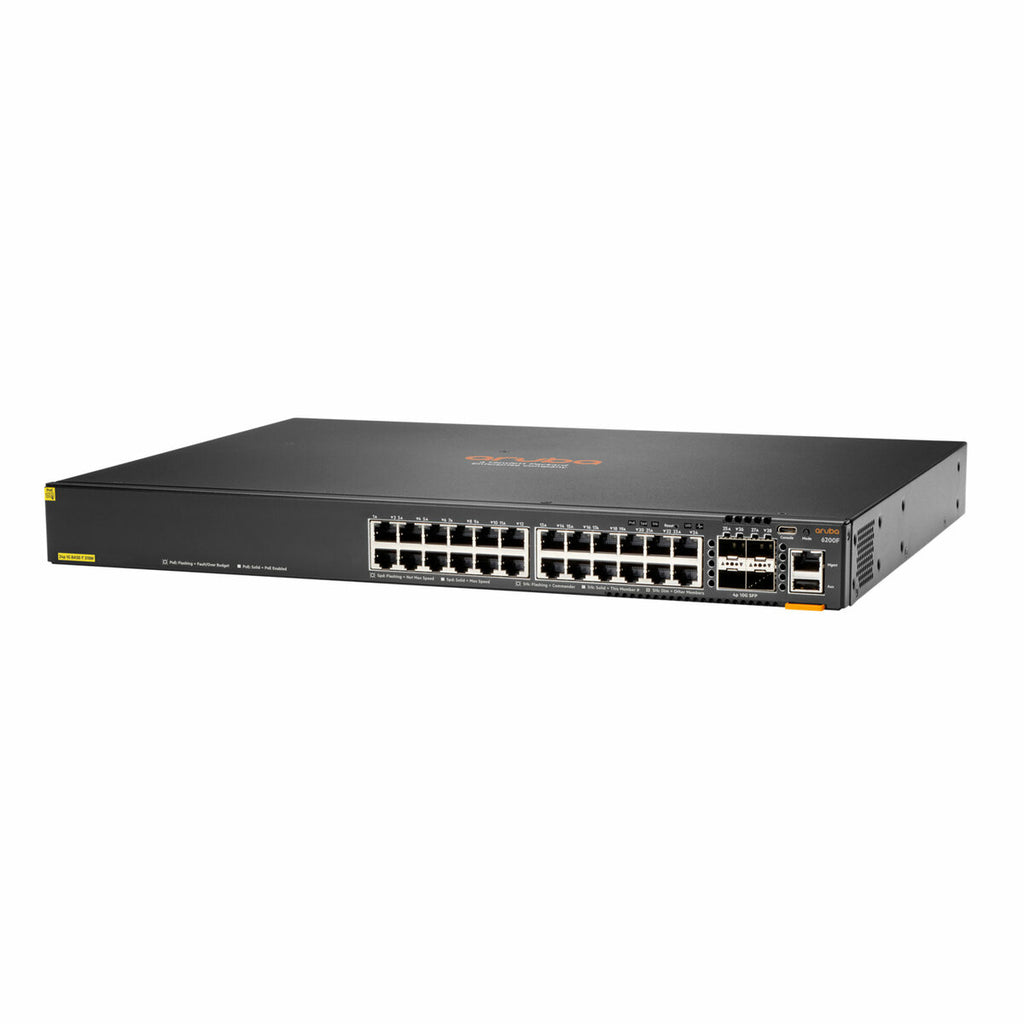

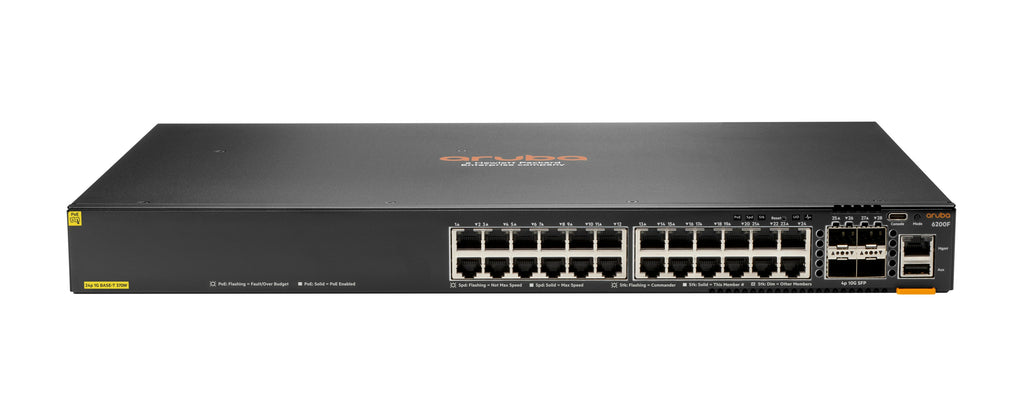

The HPE Aruba Networking CX 6200F 24G Class4 PoE 4SFP+ 370W Switch is an advanced Layer 3 access switch designed to deliver high performance, secure connectivity, and intelligent automation for growing enterprise edge and branch networks. As part of the CX 6200 Series, this switch features 24 Gigabit PoE+ ports and 4 high-speed 1/10G SFP+ uplinks, powered by Aruba's next-gen Gen7 ASIC architecture.
With support for HPE Aruba Networking's Virtual Switching Framework (VSF), it enables stacking of up to 8 switches for simplified scalability and management. Integrated support for automation and analytics through the Network Analytics Engine (NAE) and Switch Multi-Edit Software allows for rapid, policy-compliant deployments and real-time monitoring. Offering up to 370W of PoE power, this model is ideal for powering IP cameras, access points, and other IoT devices. Whether deployed in enterprise branches, campuses, or SMBs, the CX 6200F ensures a future-ready and resilient network solution.
| Feature | Specification |
|---|---|
| Model Number | JL725A#ACC |
| Product Series | HPE Aruba Networking CX 6200F |
| Form Factor | Rack-mountable |
| Layer | Layer 3 Managed Switch |
| Ports | 24x 10/100/1000BASE-T Class 4 PoE+ |
| Uplink Ports | 4x 1/10G SFP+ |
| PoE Power Budget | 370W (IEEE 802.3af/at compliant) |
| Stacking | Supports up to 8-member VSF stacking |
| CPU | Quad Core ARM Cortex-A72 @ 1.8 GHz |
| Memory / Flash | 8 GB DDR4 / 16 GB eMMC |
| Throughput | Up to 95.2 Mpps |
| Switching Capacity | 128 Gbps |
| Latency | 1 Gbps: 2.28 µs, 10 Gbps: 1.46 µs |
| Console Ports | 1x USB-C Console Port, 1x USB-A, 1x Bluetooth (App use) |
| OOB Management | 1x OOBM Port |
| Input Voltage | 100–120V / 200–240V |
| Power Supply | Fixed 500W PSU (370W PoE available) |
| Power Consumption | 65W (at 230 VAC, no PoE load) |
| Management Tools | Aruba Central, CX Mobile App, Web GUI, CLI, REST APIs |
| Security Features | Dynamic Segmentation, MACsec, ACLs, Role-based Access |
| Automation Support | Aruba NAE, Python scripting, REST APIs |
