Description

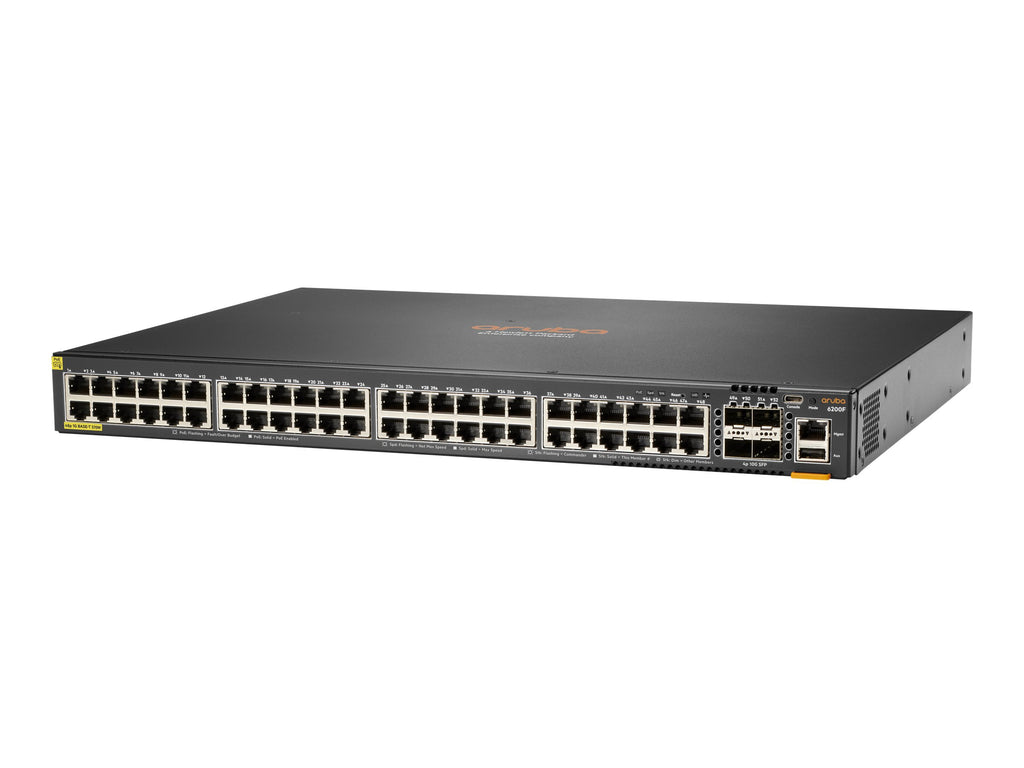

The HPE Aruba Networking CX 6200F 48G Class4 PoE 4SFP+ 370W Switch is a modern, stackable Layer 3 access switch designed for enterprise branches, SMBs, and campus networks. Built on Aruba’s Gen7 ASIC architecture and powered by AOS-CX, it delivers robust security, high-performance switching, and cloud-native automation.
It features 48x 1GbE Class4 PoE ports and 4x 1/10G SFP+ uplinks, supporting up to 370W of PoE power to connect access points, IoT, and IP devices. With VSF stacking of up to 8 members, integrated analytics, and simplified management via Aruba Central, CX Mobile App, or CLI, this switch ensures scalable, intelligent, and resilient network infrastructure.
| Specification | Details |
|---|---|
| Model Number | JL727A#ACF |
| Form Factor | Rack-mountable |
| Ports | 48x 10/100/1000BASE-T PoE+ (Class 4), 4x 1/10G SFP+ uplinks |
| PoE Power Budget | Up to 370W |
| PoE Standards | IEEE 802.3af (PoE), 802.3at (PoE+) |
| Layer Support | Layer 3 |
| Management | Fully managed; supports Aruba Central, CLI, Web GUI, CX Mobile App |
| Stacking | Up to 8-member Virtual Stacking Framework (VSF) |
| Switching Capacity | 176 Gbps |
| Throughput | Up to 130.9 Mpps |
| Latency | 1Gbps: 2.28 µs; 10Gbps: 1.46 µs |
| Memory | 8 GB DDR4 |
| Flash Storage | 16 GB eMMC |
| Processor | Quad-core ARM Cortex-A72 @ 1.8GHz |
| Console Ports | 1x USB-C, 1x OOBM, 1x USB Type-A, 1x Bluetooth for CX Mobile App |
| Input Voltage | 100–120V / 200–240V AC |
| Power Supply | Fixed 500W power supply (supports up to 370W PoE) |
| Power Consumption | 76W (typical at 230V AC) |
