Description

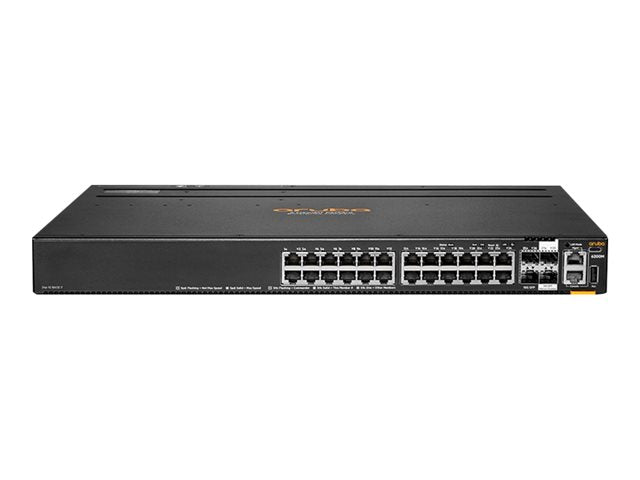

The HPE Aruba Networking CX 6200M 24G 4SFP+ TAA Switch (R8V08A) is a next-generation stackable Layer 3 access switch designed for enterprise branch offices, campus networks, and SMBs. Featuring a robust Aruba Gen7 ASIC architecture and cloud-centric AOS-CX operating system, it delivers non-blocking performance and advanced analytics across your network.
This 1U rack-mountable switch provides 24 Gigabit Ethernet ports and 4 SFP+ uplink/stacking ports, supporting maximum stacking distances of up to 10 km. It offers simplified management with Virtual Stacking Framework (VSF) and supports up to 8 switches per stack, making it a scalable, secure, and resilient choice for modern IT environments. With TAA compliance, it meets government procurement requirements.
| Specification | Details |
|---|---|
| Product Code (SKU) | R8V08A |
| Switch Type | Managed, Layer 3, Stackable |
| Ports | 24 x 10/100/1000Base-T RJ-45, 4 x 1/10G SFP+ |
| Stacking Distance (Max) | 10 km |
| Switching Capacity | 128 Gbps |
| Throughput | 95.2 Mpps |
| Latency | 2.28 µs (1 Gbps), 1.46 µs (10 Gbps) |
| Packet Buffer | 8 MB |
| MAC Address Table | 16,000 entries |
| Jumbo Frame Support | 9220 bytes |
| Routing Protocols | OSPF, RIP-2, OSPFv2, OSPFv3, ECMP |
| Management Interfaces | RJ-45 console, RJ-45 management, USB-C console, USB-A host |
| Remote Management | SNMP v1/v2c/v3, CLI, Web GUI |
| Security Features | RADIUS, TACACS+, MACSec, SSL, FIPS 140-2 |
| OS | Aruba AOS-CX |
| Stacking Bandwidth | 40 Gbps |
| Max Units in Stack | 8 |
| Power Supply | Internal (not included), supports up to 2 |
| Power Consumption | 75W (operational), 56W (standby) |
| Certifications | 80 PLUS Gold, TAA Compliant, RoHS, FCC, EN, IEC, UL, VCCI, WEEE |
| Dimensions (W x D x H) | 17.4 x 15.2 x 1.7 in |
| Weight | 12.32 lbs |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Humidity (Operating) | 15% - 95% non-condensing |
| Warranty | Limited Lifetime Warranty |
| Included Accessories | 2-post rack kit, hot-swappable fan tray |
