Description

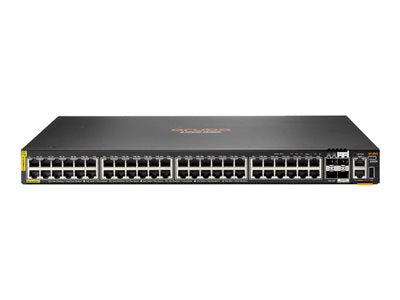

The HPE Aruba Networking CX 6200M 48G Class4 PoE 4SFP+ TAA Switch (R8V11A) is an advanced Layer 3 stackable managed switch designed for enterprise access and campus edge networks. With 48 Gigabit PoE+ ports and 4 high-speed 1/10G SFP+ uplinks, this switch provides scalable performance powered by Aruba's Gen7 ASIC architecture and the AOS-CX programmable OS.
This switch enables seamless integration of IoT, mobile, and cloud applications while offering robust security, intelligent monitoring, and virtual stacking of up to 8 units via Aruba's VSF (Virtual Stacking Framework). With a 1440W PoE budget and support for TAA compliance, it’s a perfect fit for power-hungry devices and government deployments.
| Category | Details |
|---|---|
| Model Number | R8V11A |
| Series | HPE Aruba Networking CX 6200M |
| Device Type | Managed Layer 3 Stackable Switch |
| Form Factor | 1U Rack-mountable (front and side to back airflow) |
| Ports | 48 x 10/100/1000 (PoE+) RJ-45 + 4 x 1/10GbE SFP+ |
| PoE Support | Class 4 PoE+ |
| PoE Budget | 1440W |
| Stacking Support | Aruba VSF, up to 8 units, 10 km distance |
| Switching Capacity | 176 Gbps |
| Throughput | 130.9 Mpps |
| Latency | 2.28 µs (1G), 1.46 µs (10G) |
| MAC Address Table Size | 16,000 entries |
| Jumbo Frame Support | 9220 bytes |
| Routing Protocols | OSPF, RIP-2, OSPFv2, OSPFv3, ECMP |
| Management | CLI, Web GUI, SNMP v2c/v3, RADIUS, TACACS+ |
| Security & Compliance | FIPS 140-2, MD5, SSL, Kensington Lock Support |
| Processor | 1.8 GHz ARM |
| Memory | 8 GB DDR4 SDRAM, 16 GB Flash |
| Expansion Ports | 1 x USB Type-A, 1 x USB Type-C Console, RJ-45 Console, 1 x Mgmt RJ-45 |
| Power Supply | Internal (not pre-installed), supports 2 units |
| Voltage | AC 100–120/200–240 V (50/60 Hz) |
| Power Consumption (Max) | 74W (operational), 59W (standby) |
| Included Accessories | 2-post rack kit, hot-swappable fan tray |
| Compliant Standards | IEEE 802.3af/at, 802.1Q/p/w/s, 802.3ad, LLDP, TAA compliant, RoHS, WEEE |
| Operating Temp. Range | 32°F to 113°F (0°C to 45°C) |
| Storage Temp. Range | -40°F to 158°F (-40°C to 70°C) |
| Humidity (Operating) | 15%–95% non-condensing |
| Dimensions (WxDxH) | 17.4 x 15.2 x 1.7 in |
| Weight | 13.56 lbs |
| Warranty | Limited Lifetime Warranty |
