Description

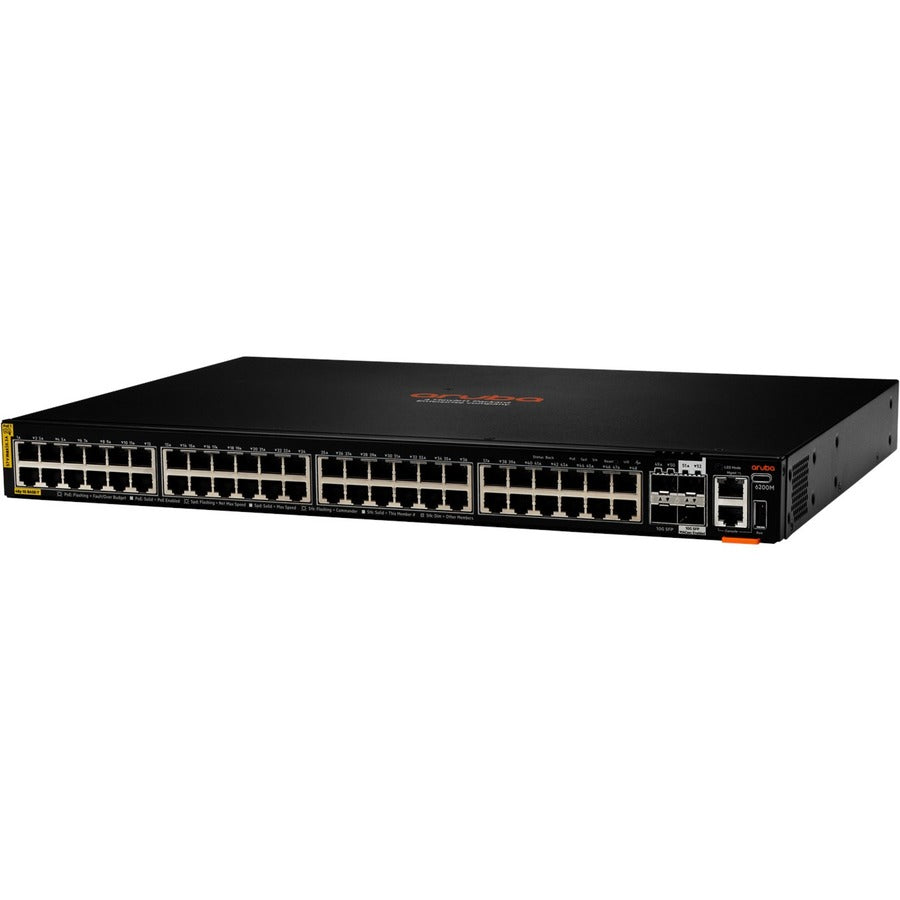

The HPE Aruba Networking CX 6200M 48G Class4 PoE 4SFP+ Switch (R8Q70A) is a next-generation stackable access switch designed for branch offices, campuses, and SMB networks. Powered by a Gen7 ASIC architecture and the AOS-CX operating system, it delivers fast, non-blocking Layer 3 switching with intelligent automation and visibility.
This modular model offers 48x Class 4 PoE ports with up to 30W per port and 4x SFP+ uplinks for high-performance connectivity. With support for 1440W PoE, hot-swappable power supplies, and stacking up to 8 members, it’s ideal for modern network environments supporting IoT, security devices, and wireless APs.
Enhanced with the HPE Aruba Network Analytics Engine, this switch allows advanced telemetry, REST API automation, dynamic segmentation, and seamless integration with HPE Central or Multi-Edit Software. Designed for performance, resiliency, and simplified management, the CX 6200M delivers enterprise-grade networking at the access edge.
| Specification | Details |
|---|---|
| Product Number | R8Q70A |
| Switch Ports | 48x 10/100/1000BASE-T Class 4 PoE (30W/port) |
| Uplink Ports | 4x 1G/10G SFP+ (2x LRM, 2x LRM/MACSec 256) |
| PoE Power Budget | 1440W |
| Console Ports | 1x RJ-45, 1x USB-C |
| Management Ports | 1x OOBM, 1x USB Type-A Host |
| CPU | Quad Core ARM Cortex A72, 1.8 GHz |
| Memory | 8 GB DDR4 |
| Flash Storage | 16 GB eMMC |
| Latency | 2.28 µs (1 Gbps), 1.46 µs (10 Gbps) |
| Throughput | Up to 130.9 Mpps |
| Switching Capacity | 176 Gbps |

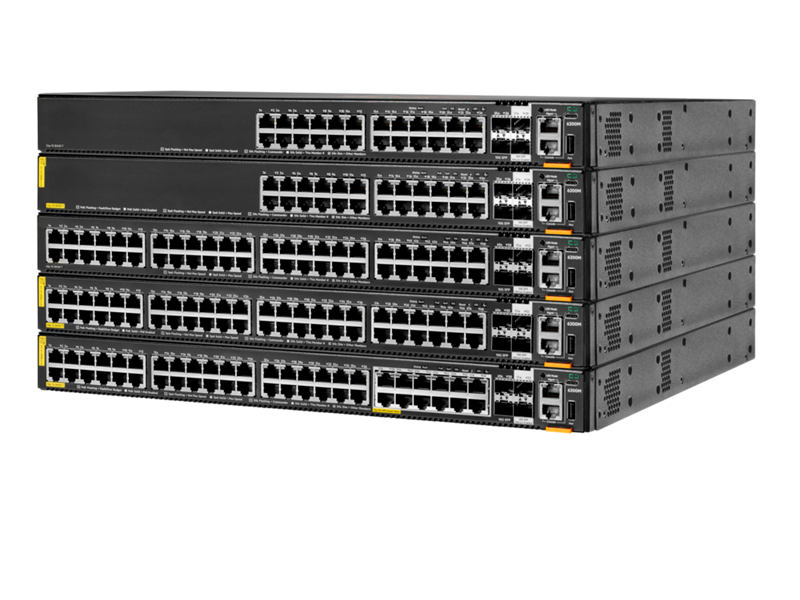

| Stacking | Up to 8 members using front-plane SFP+ ports |

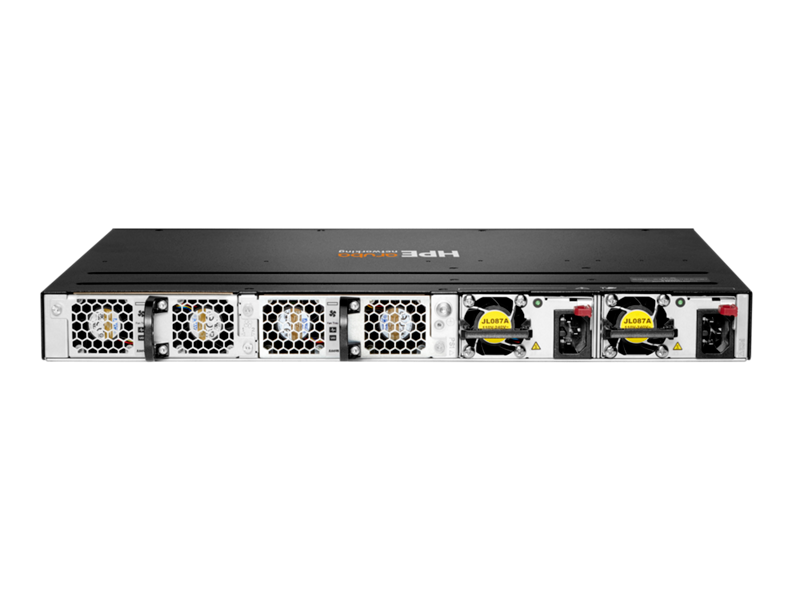

| Power Supply | 2 hot-swappable slots (1 PSU required, ordered separately) |
| Compatible PSUs | JL086A, JL087A |
| Power Input | 100V–120V / 200V–240V |
| Power Consumption | 76W (typical at 230V AC) |
| Dimensions (WxDxH) | 44.25 x 38.38 x 4.39 cm |
| Weight | 6.01 kg |
